Description

Price

1

BOLT, FLG. M8X1.25

8JP-RA188-00-00

Unavailable

2

HOLDER, HANDLE UPP

8JP-F3814-10-00

$17.99

3

JOINT

8ND-F381B-10-00

Unavailable

4

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

5

HOLDER, BEARING

8JP-F3872-00-00

$2.97

6

BEARING,STEERING

8KG-F3812-00-00

$4.35

7

BEARING, STEERING

8ND-F3812-00-00

$3.81

8

NUT, LOCK 1

8JP-RA379-00-00

$0.54

9

SCREW, 10

8JP-RA299-00-00

$2.65

10

COLUMN, STEERING 2

8PC-F3813-00-00

$125.99

11

STOPPER 1

8PC-F381C-00-00

$16.99

12

POWER STRG. ACTUAT

8PC-F38B0-00-00

$1,859.99

13

COLUMN, STEERING

8PC-F3811-00-00

$151.99

14

BOLT, FLANGE 1/4-2

8JM-RA138-00-00

Unavailable

15

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

16

BRACKET 1

8PC-F3881-00-00

Unavailable

17

NUT, CLIP M6

8JP-RA354-00-00

Unavailable

18

BRACKET 2

8PC-F3882-00-00

Unavailable

19

BOLT, FLANGE

8ND-RA117-00-00

Unavailable

20

SCREW, 1

8JP-RA235-00-00

Unavailable

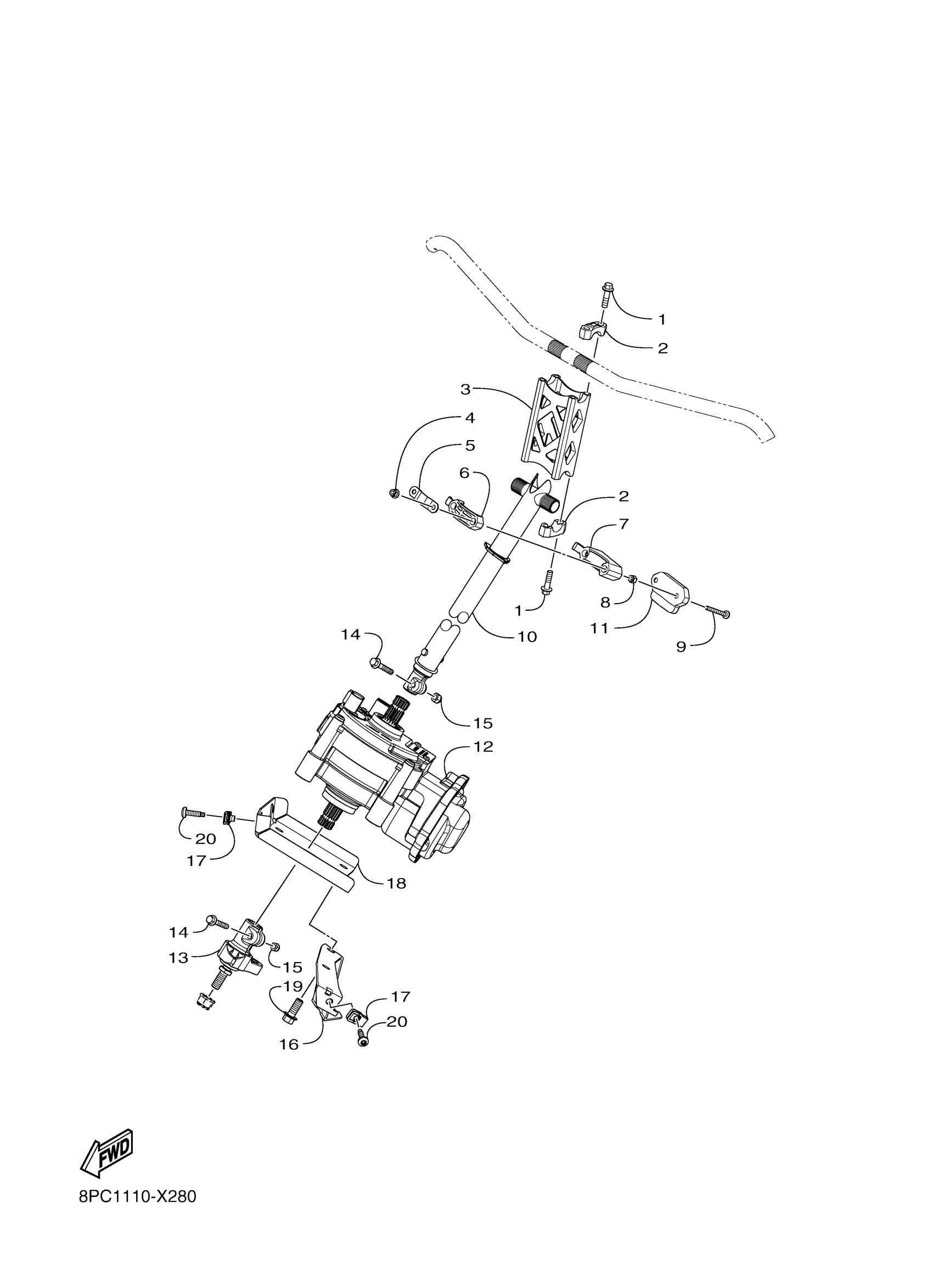

Yamaha SW1NSGNL (SIDEWINDER S TX GT EPS) 8PC1 2022 STEERING 2 Diagram

BOLT, FLG. M8X1.25

HOLDER, HANDLE UPP

JOINT

NUT,FLG. M6-1.0

HOLDER, BEARING

BEARING,STEERING

BEARING, STEERING

NUT, LOCK 1

SCREW, 10

COLUMN, STEERING 2

STOPPER 1

POWER STRG. ACTUAT

COLUMN, STEERING

BOLT, FLANGE 1/4-2

NUT, FLG. LOCKING

BRACKET 1

NUT, CLIP M6

BRACKET 2

BOLT, FLANGE

SCREW, 1
