Description

Price

1

KNUCKLE, STEERING

8JP-F3521-40-00

Unavailable

2

KNUCKLE, STEERING

8JP-F3511-40-00

Unavailable

3

BUSH, 12DU12

8JP-RA806-00-00

$10.49

4

COLLAR, 75

8JP-RA731-00-00

$31.99

5

COLLAR, 6

8JP-RA718-00-00

$3.40

6

STOPPER 1

8NS-F3743-00-00

$22.99

7

SKI COMP. 1

8MA-F3710-00-00

$97.99

8

. COLLAR 1

8EX-F3754-00-00

Unavailable

9

REINFORCEMENT, HEA

8MA-F3712-20-00

$41.99

10

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

11

BOLT, REINFORCEMEN

8KC-F3755-00-00

$4.56

12

WASHER 1

8KC-F3737-00-00

Unavailable

13

BOLT, REINFORCEMEN

8MA-F3756-00-00

$5.60

14

RUNNER 2

8LY-F3732-00-00

$146.99

15

RUNNER 1

8LY-F3731-00-00

$146.99

16

INSERT

8MA-F3775-00-00

Unavailable

17

INSERT (HALVES) 5.0

8MA-F3775-20-00

Unavailable

18

NUT, FLG. LOCKING

8JP-RA358-00-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable

20

WASHER, PLATE

90201-10043-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

BOLT, FLANGE

90105-10070-00

Unavailable

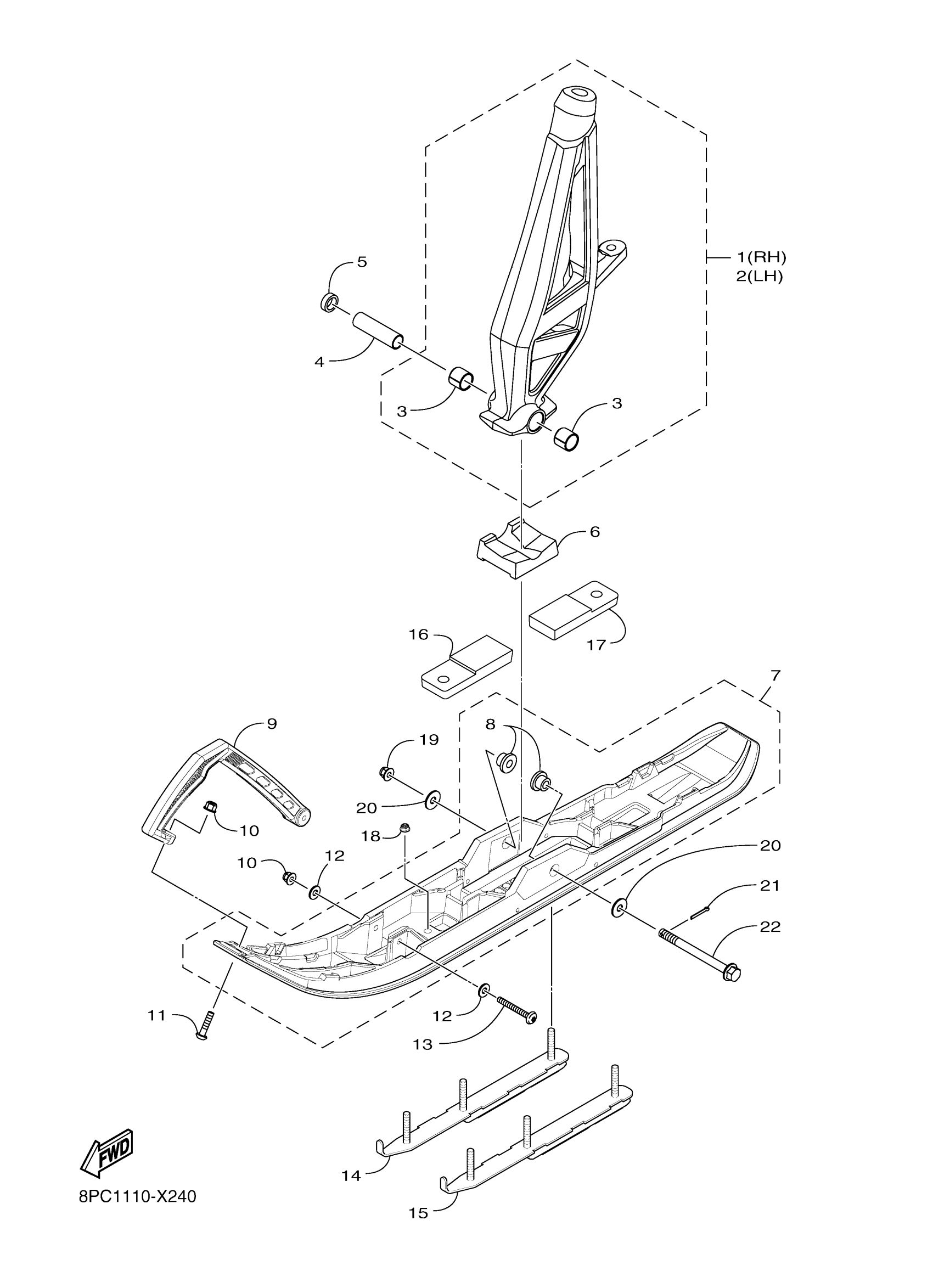

Yamaha SW1NSGNL (SIDEWINDER S TX GT EPS) 8PC1 2022 SKI Diagram

KNUCKLE, STEERING

KNUCKLE, STEERING

BUSH, 12DU12

COLLAR, 75

COLLAR, 6

STOPPER 1

SKI COMP. 1

. COLLAR 1

REINFORCEMENT, HEA

NUT, FLG. LOCKING

BOLT, REINFORCEMEN

WASHER 1

BOLT, REINFORCEMEN

RUNNER 2

RUNNER 1

INSERT

INSERT (HALVES) 5.0

NUT, FLG. LOCKING

NUT, S/L FLANGE

WASHER, PLATE

PIN, COTTER

BOLT, FLANGE
