TRACK SUSPENSION 1

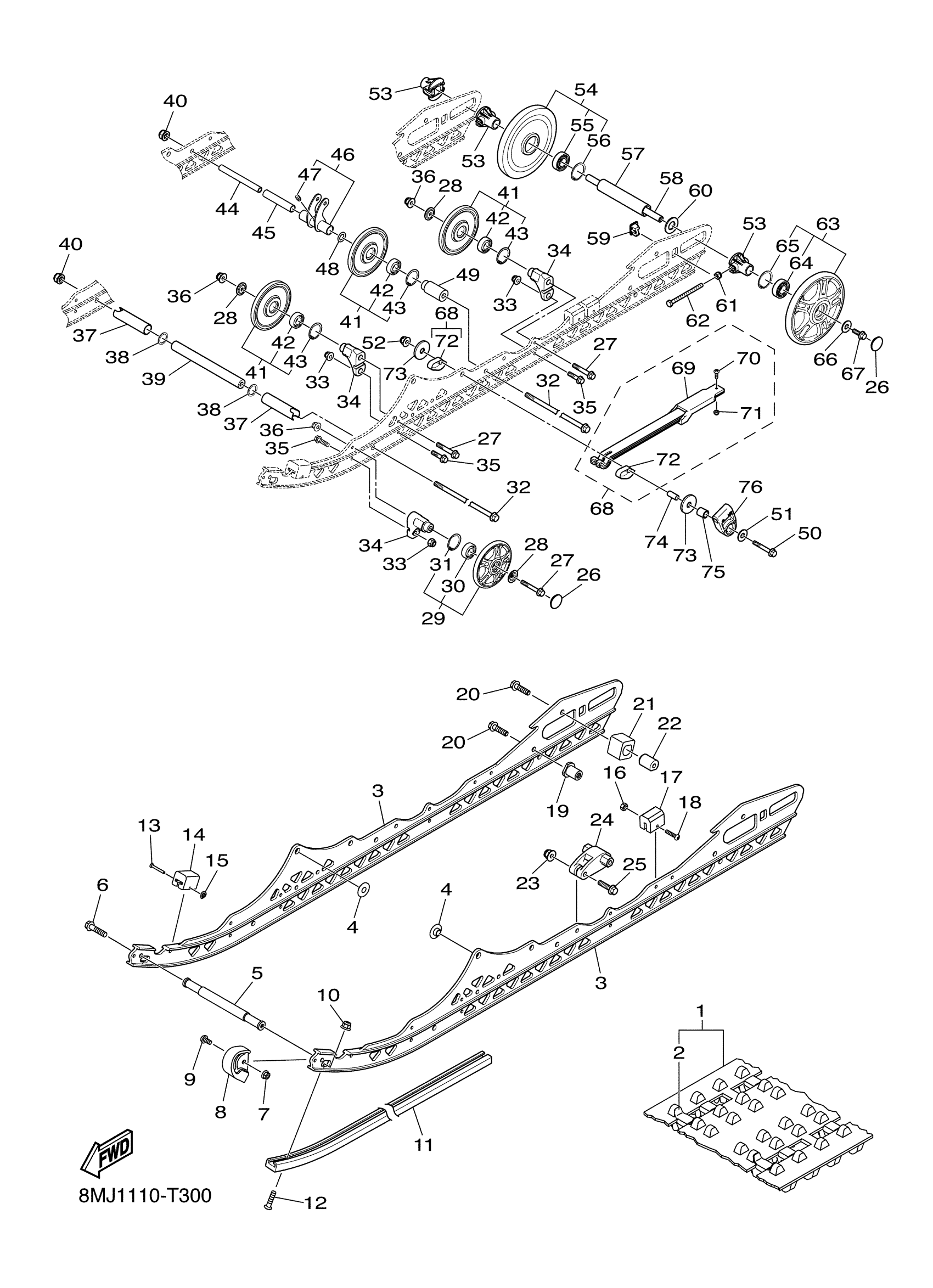

Yamaha SW1NSD46JB (SIDEWINDER S DX 146) 8MJ1 2018 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8LN-G7110-00-00
$1,166.99
2
PLATE,RNFCMNT
8JR-G7113-00-00
$4.46
3
FRAME, SLIDING
8LN-G741A-10-00
$210.99
4
COLLAR, 13
8JP-RA725-00-00
$4.14
5
BOLT, FLG. M8X1.25
8JP-RA186-00-00
$0.54
6
SHAFT 3
8JP-G7485-00-00
$53.99
7
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
8
RUNNER, SLIDING 2
8JP-G7422-10-00
Unavailable
9
SCREW, M6X1.0X30
8JP-RA266-00-00
$1.43
10
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
11
RUNNER, SLIDING 1
8LN-G7421-10-00
$45.99
12
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
13
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
14
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
15
NUT, 0.125
8JP-RA346-00-00
$1.64
16
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
17
DAMPER 2
8JP-G7457-00-00
Unavailable
18
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
19
NUT
8JP-G7368-00-00
Unavailable
20
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
21
STOPPER, CONT. 1
8JP-G745D-00-00
Unavailable
22
NUT
8LN-G7368-00-00
Unavailable
23
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
24
BUSH, PIVOT
8MJ-G7371-00-00
Unavailable
25
BOLT, HEX. M8X1.25
8JP-RA1B2-00-00
Unavailable
26
CAP
8LN-G7377-00-00
Unavailable
27
BOLT, FLANGE 1
8JP-RA1B5-00-00
Unavailable
28
WASHER, 9
8JP-RA466-00-00
Unavailable
29
SUSPENSION WHL ASY
8JR-G7310-00-00
Unavailable
30
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
31
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
32
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
33
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
34
BRACKET 7
8JP-G7419-10-00
Unavailable
35
BOLT, FLANGE 2
8JP-RA1B6-00-00
Unavailable
36
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
37
COLLAR, 11
8JP-RA723-00-00
Unavailable
38
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
39
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
40
LOCK NUT
8JP-RA378-01-00
Unavailable
41
SUSPENSION WHEEL A
8JP-G7310-00-00
Unavailable
42
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
43
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
44
SHAFT 5
8JX-G7487-00-00
Unavailable
45
COLLAR, 18
8JP-RA734-00-00
Unavailable
46
BRACKET,ARM PIVOT
8JX-G7349-00-00
Unavailable
47
NIPPLE, GREASE 1
8JP-RAL01-00-00
Unavailable
48
WASHER, PLAIN
8JP-RA464-00-00
Unavailable
49
BRACKET 7
8JX-G7419-00-00
Unavailable
50
BOLT, FLG. M8X1.25
8JP-RA192-00-00
Unavailable
51
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
52
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
53
WHEEL, GUIDE 1
8LN-G7534-00-00
Unavailable
54
GUIDE WHEEL ASSY
8LN-G7550-00-00
Unavailable
55
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
56
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
57
COLLAR, 18
8LN-RA734-00-00
Unavailable
58
AXLE, REAR
8LN-G7521-00-00
Unavailable
59
BRACKET 5
8JP-G7463-00-00
Unavailable
60
WASHER, 9
8LN-RA466-00-00
Unavailable
61
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
62
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
63
GUIDE WHEEL ASSY
8LN-G7550-10-00
Unavailable
64
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
65
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
66
WASHER, M10X29
8JP-RA453-00-00
Unavailable
67
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
68
SPRING GUIDE SUB-A
8MJ-F2260-00-00
Unavailable
69
SLIDER 1
8MJ-G7441-00-00
Unavailable
70
SCREW, SET
8MJ-RA292-00-00
Unavailable
71
.. NUT, SELF-LOCKING
8JP-RA360-30-00
Unavailable
72
CLIP, 1
8MJ-RAC10-00-00
Unavailable
73
WASHER
8JP-G7359-10-00
Unavailable
74
BUSH, 12DU12
8MJ-RA806-00-00
Unavailable
75
SPACER
8MJ-G7341-00-00
Unavailable
76
HOOK 1
8LN-G7446-00-00
Unavailable
