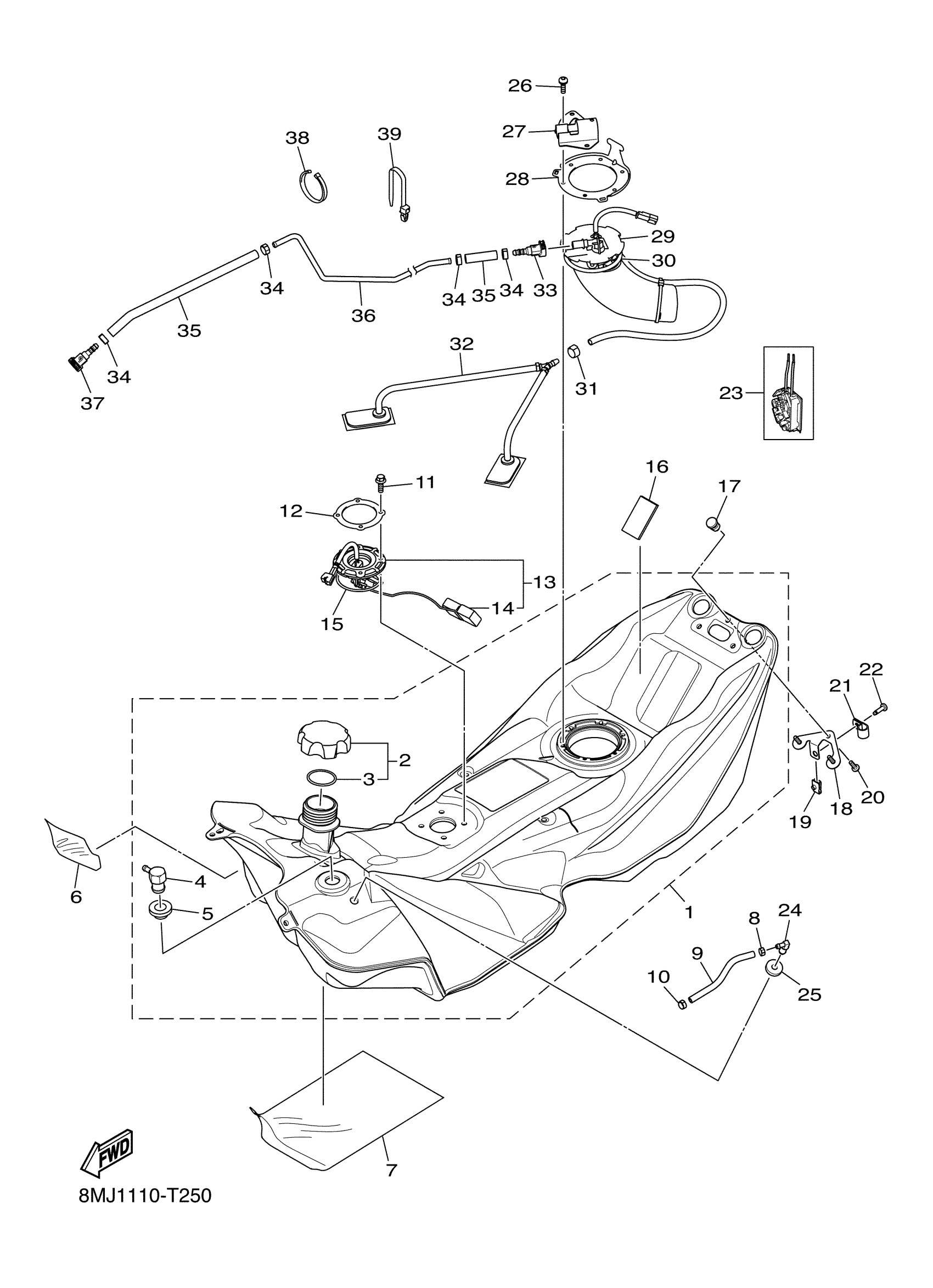

Yamaha SW1NSD46JB (SIDEWINDER S DX 146) 8MJ1 2018 FUEL TANK 1 Diagram
#
1
FUEL TANK ASSY
8LN-F4100-00-00
Unavailable
2
CAP ASSY
8JP-F4610-00-00
$15.99
3
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
4
. VALVE, CHECK 1
8LN-F4362-00-00
Unavailable
5
GROMMET
8JP-E5366-00-00
$2.97
6
INSULATOR,FUEL TAN
8JP-F416F-01-00
$18.99
7
PROTECTOR,1
8JP-F476U-01-00
Unavailable
8
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
9
HOSE, 13 (25 FEET)
8JM-RA902-10-00
$180.99
10
CLAMP,HOSE(14.5)12.0MM-14.5MM
8JM-RAC01-00-00
$2.12
11
BOLT, FLANGE M5X0.8X16
8JP-RA178-00-00
Unavailable
12
PLATE, RETAINER
8JP-K8166-00-00
Unavailable
13
SENDER UNIT ASSY,
8JP-H5752-00-00
$209.99
14
FLOAT
8JP-H369N-00-00
Unavailable
15
O-RING, 46.9
8JP-RAF10-00-00
$11.49
16
PAD, BATTERY
8JP-H2121-00-00
Unavailable
17
NUT, LATCH
8LN-K7193-00-00
Unavailable
18
BRACKET, SEAT LOCK
8LN-F478X-00-00
Unavailable
19
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
20
SCREW, 1
8JP-RA235-00-00
Unavailable
21
CLAMP, 21
8JP-RAB23-00-00
Unavailable
22
BOLT 1
8LN-K7537-00-00
Unavailable
23
SENDER ASSY
8LN-H5701-00-00
Unavailable
24
PIPE, JOINT 1
8KC-F4376-10-00
Unavailable
25
GROMMET
8JP-E5367-00-00
Unavailable
26
SCREW, M5X0.8X20
8JP-RA242-00-00
Unavailable
27
GUIDE, NOZZLE
8JP-F413K-00-00
Unavailable
28
BRACKET, FUEL PUMP
8JP-F4491-00-00
Unavailable
29
FUEL PUMP COMP.
8KC-E3907-00-00
Unavailable
30
O-RING
8JP-F4486-00-00
Unavailable
31
CLAMP, 25
8JP-RAB27-00-00
Unavailable
32
FILTER, FUEL
8JP-F4502-00-00
Unavailable
33
FUEL PIPE JOINT CO
8JP-F4304-00-00
Unavailable
34
CLAMP, 6
8JP-RAB08-00-00
Unavailable
35
HOSE, 5 (10 FEET)
8JP-RA909-10-00
Unavailable
36
PIPE, FUEL 1
8MJ-F4311-00-00
Unavailable
37
FUEL PIPE JOINT CO
8FP-24304-00-00
Unavailable
38
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
39
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
