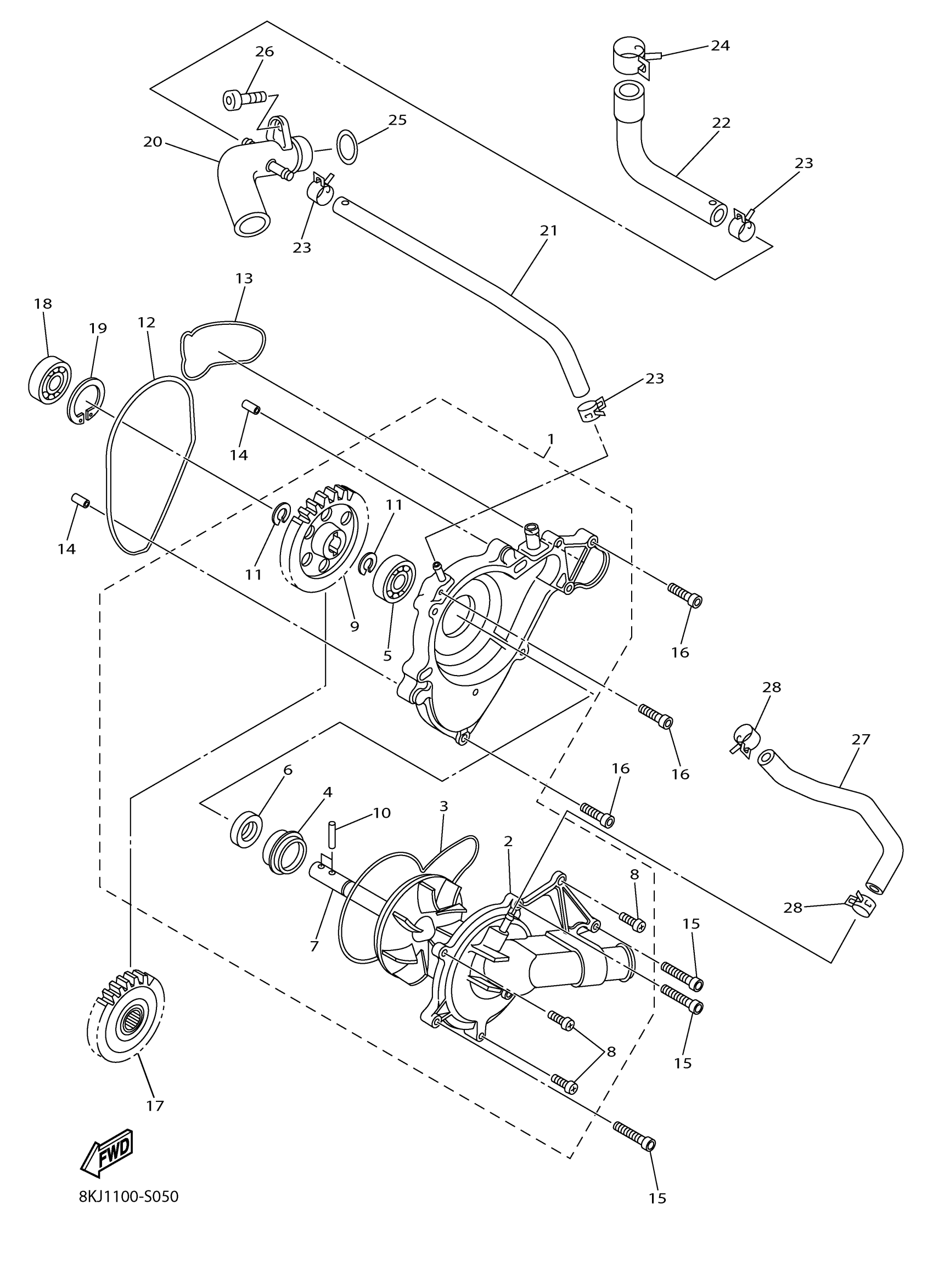

Yamaha SW1NSD37JL (SIDEWINDER S TX DX 137) 8MH3 2018 WATER PUMP Diagram
#
Description
Price
1
WATER PUMP ASSY
8ES-12420-02-00
$370.99
2
COVER, HOUSING
8ES-12422-00-00
Unavailable
3
GASKET, HOUSING COVER 1
8ES-12427-00-00
$17.49
4
SEAL, MECHANICAL
8ES-12438-00-00
$45.99
5
BRG,R-B 6000 26MM 19G KY
93306-00004-00
$37.99
6
SEAL,OIL(SD 10-21-5 HS,3Y1)
93102-10207-00
$11.49
7
IMPELLER SHAFT ASSY
8ES-12450-01-00
$37.99
8
SCREW, PAN HEAD
98580-06016-00
Unavailable
9
GEAR, IMPELLER SHAFT
8ES-12459-01-00
Unavailable
10
PIN, DOWEL (409)
93604-16092-00
$3.18
11
CIRCLIP(2R6)
99001-08600-00
$8.49
12
GASKET
8ES-12435-00-00
$15.49
13
GASKET
8ES-12434-00-00
$4.63
14
PIN, DOWEL
99530-08012-00
Unavailable
15
TORNILLO ALLEN
91312-06040-00
$8.49
16
BOLT,SOCKET
91317-06025-00
Unavailable
17
GEAR, DRIVE
8ES-12436-00-00
Unavailable
18
BRG,R-B 6000 26MM 19G KY
93306-00004-00
$37.99
19
CIRCLIP(2FL)
93420-26077-00
Unavailable
20
PIPE 2
8KJ-12482-01-00
Unavailable
21
PIPE 5
8KJ-12485-00-00
Unavailable
22
HOSE 2
8KJ-12577-00-00
Unavailable
23
CLIP
90467-110A2-00
Unavailable
24
CLIP
90467-120A5-00
Unavailable
25
O-RING
93210-235A1-00
Unavailable
26
BOLT(3MA)
91312-06016-00
Unavailable
27
HOSE 3
8KJ-12578-00-00
Unavailable
28
CLIP
90467-110A2-00
Unavailable
