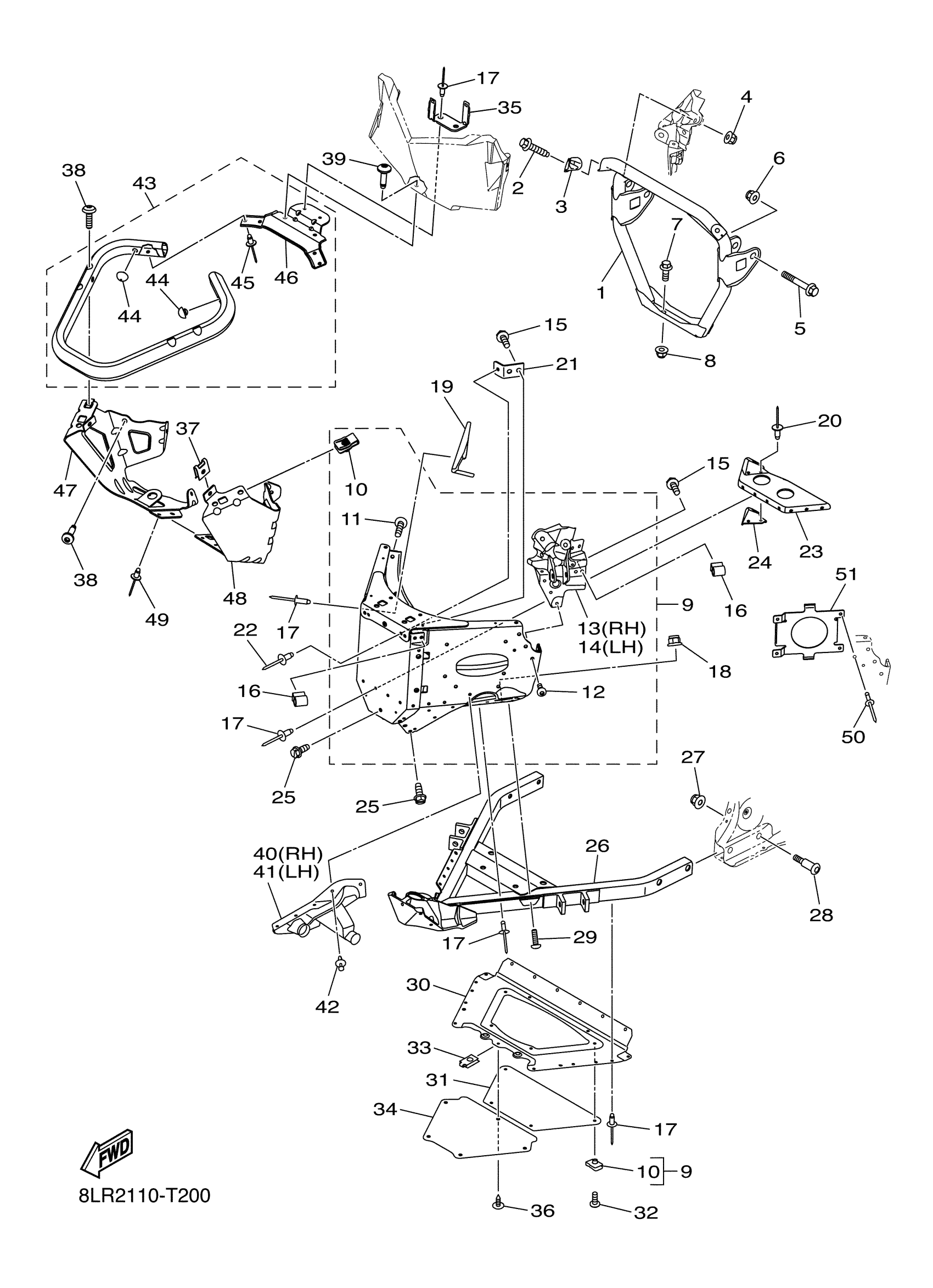

Yamaha SW1NRLJW (SIDEWINDER R TX LE 50TH) 8LR2 2018 FRAME 1 Diagram
#
1
BRACKET, ENGINE
8JP-F194E-20-00
$246.99
2
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
3
INSERT
8JP-F3775-00-00
Unavailable
4
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
5
BOLT, FLG. M12X1.2
8JP-RA1A5-10-00
Unavailable
6
NUT, FLG. LOCKING
8JP-RA362-00-00
$1.75
7
BOLT, FLANGE M10X1.25X25
8JP-RA195-00-00
Unavailable
8
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
9
BULKHEAD
8KC-F191A-10-00
$363.99
10
NUT, CLIP M6
8JP-RA354-00-00
$0.96
11
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
12
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
13
HOLDER, ABSORBER 2
8JP-F377J-10-00
Unavailable
14
HOLDER, ABSORBER
8JP-F376J-10-00
$136.99
15
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
16
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
17
RIVET, 9
8JP-RA518-00-00
Unavailable
18
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
19
BRACKET, STOPPER S
8JP-F131G-00-00
Unavailable
20
RIVET, 11
8JP-RA520-00-00
Unavailable
21
GUSSET
8JP-F1138-00-00
Unavailable
22
RIVET, 3/16
8JP-RA527-00-00
Unavailable
23
REINF.,FRAME FR. 3
8JP-F1922-00-00
Unavailable
24
BRACKET, STEERING
8JP-F1947-00-00
Unavailable
25
SCREW, TAPPING 1/4
8JP-RA279-00-00
Unavailable
26
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
27
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
28
SCREW, M8X1.25X44.
8JP-RA275-00-00
Unavailable
29
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
30
FRAME, UNDER 2
8KC-F196E-00-00
Unavailable
31
COVER, UNDER
8JP-F2863-00-00
Unavailable
32
SCREW, M6X1.0X16
8JP-RA255-00-00
Unavailable
33
NUT, CLIP
8JP-RA349-00-00
Unavailable
34
PANEL, UNDER
8JP-F114G-00-00
Unavailable
35
BRACKET
8KC-H1948-00-00
Unavailable
36
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
37
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
38
SCREW, M6X18
8KC-RA270-00-00
Unavailable
39
SCREW, M6X1X16
8KC-RA271-00-00
Unavailable
40
COVER 3
8JP-F198J-00-00
Unavailable
41
COVER 1
8JP-F198F-00-00
Unavailable
42
RIVET, 2
8JP-RA511-00-00
Unavailable
43
FRONT BUMPER COMP.
8KC-K7510-00-00
Unavailable
44
CAP
8KC-K7517-00-00
Unavailable
45
RIVET, 3/16
8JP-RA528-00-00
Unavailable
46
BRACKET, FRONT GUA
8KC-F194Y-00-00
Unavailable
47
BRACKET, FRONT BUM
8KC-F1959-00-00
Unavailable
48
BRACKET, FRONT
8KC-F1949-00-00
Unavailable
49
RIVET, 3/16
8JP-RA528-00-00
Unavailable
50
RIVET, 9
8JP-RA518-00-00
Unavailable
51
BRACKET, UNIT
8KC-H5991-00-00
Unavailable
