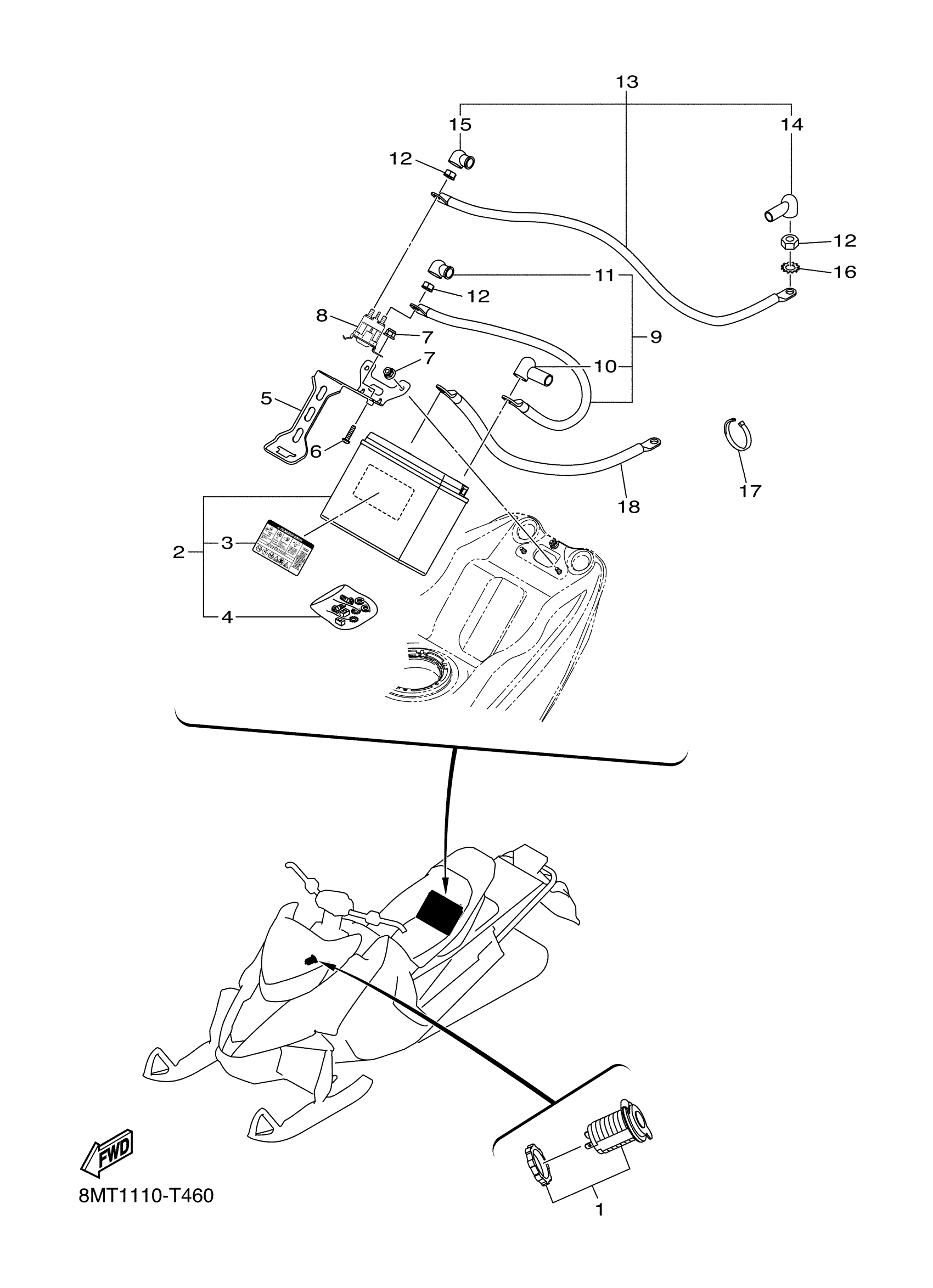

Yamaha SW1NRLJW (SIDEWINDER R TX LE 50TH) 8LR2 2018 ELECTRICAL 2 Diagram

TERMINAL COMP.

8JP-H254B-00-00

$30.99

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

Unavailable

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable

. REPAIR PARTS KIT

8JP-F819G-00-00

Unavailable

BRACKET, BATTERY 2

8JP-H2158-00-00

$15.99

SCREW

8KC-RA229-00-00

$0.54

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

STARTER RELAY ASSY

8MT-H1940-00-00

$37.99

CABLE 1

8JP-H8146-00-00

Unavailable

COVER

8JP-H1942-10-00

$5.60

. COVER, TERMINAL

8JP-H1916-00-00

Unavailable

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

CABLE 2

8JP-H8147-00-00

Unavailable

COVER

8JP-H1942-10-00

$5.60

. COVER, TERMINAL

8JP-H1916-00-00

Unavailable

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

WIRE, EARTH LEAD

8JP-H131Y-00-00

Unavailable
