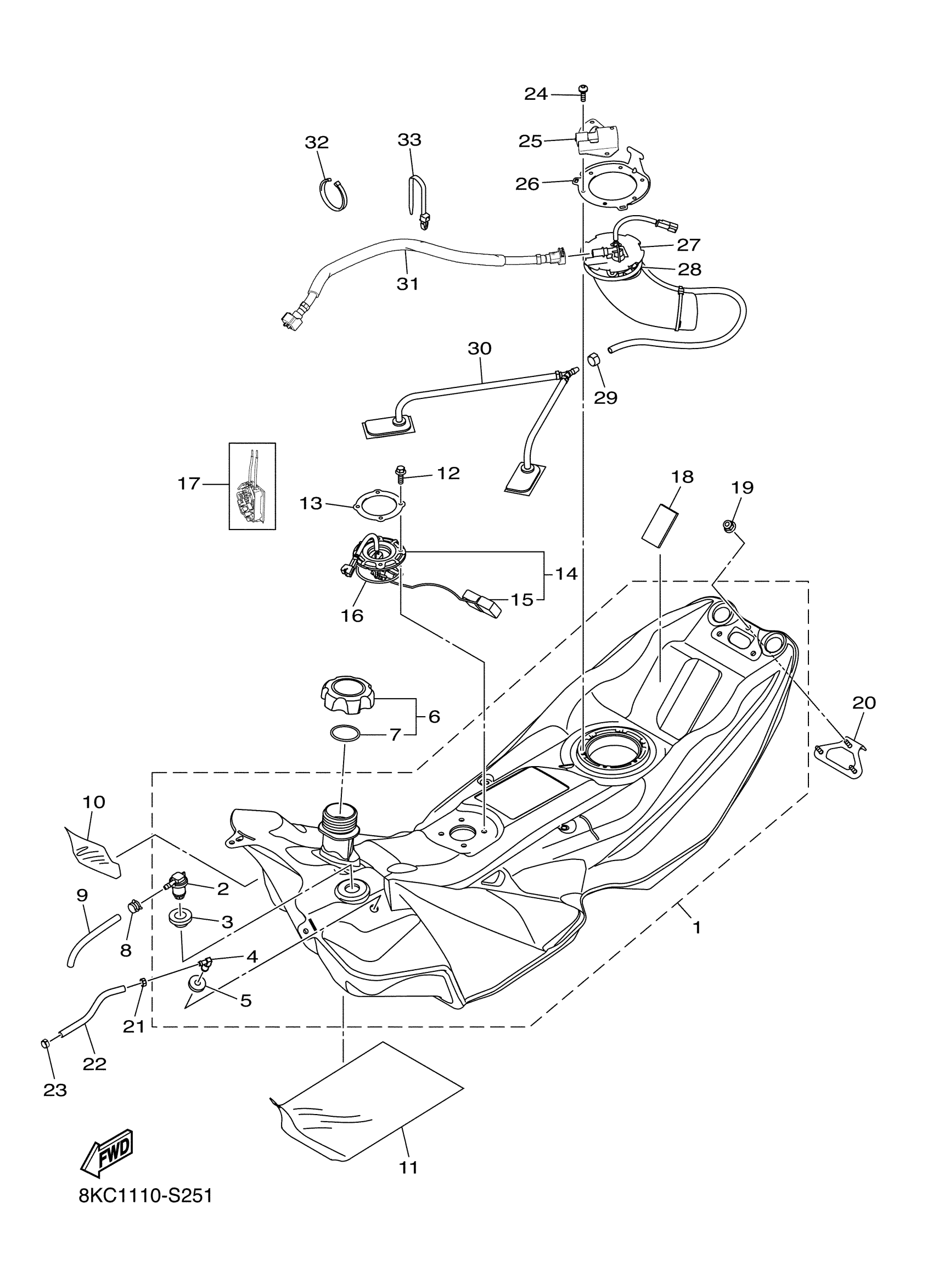

Yamaha SW1NMS53JY (SIDEWINDER M TX SE 153) 8MR10 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK ASSY

8KC-F4100-10-00

Unavailable

2

VALVE, CHECK 1

8JP-F4362-00-00

$44.99

3

GROMMET

8JP-E5366-00-00

$2.97

4

PIPE, JOINT 1

8KC-F4376-10-00

$3.50

5

GROMMET

8JP-E5367-00-00

$3.18

6

CAP ASSY

8KC-F4610-00-00

$15.99

7

SEAL, GAS CAP

8JM-F4641-00-00

Unavailable

8

CLAMP, 10

8JP-RAB12-00-00

$0.54

9

HOSE, 3 (50 FEET)

8JP-RA907-00-00

$295.99

10

INSULATOR,FUEL TAN

8JP-F416F-01-00

$18.99

11

PROTECTOR,1

8JP-F476U-01-00

Unavailable

12

BOLT, FLANGE M5X0.8X16

8JP-RA178-00-00

Unavailable

13

PLATE, RETAINER

8JP-K8166-00-00

Unavailable

14

SENDER UNIT ASSY,

8JP-H5752-00-00

$209.99

15

FLOAT

8JP-H369N-00-00

Unavailable

16

O-RING, 46.9

8JP-RAF10-00-00

Unavailable

17

SENDER ASSY

8LN-H5701-00-00

Unavailable

18

PAD, BATTERY

8JP-H2121-00-00

Unavailable

19

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

20

BRACKT, TANK FITTI

8JP-F134U-00-00

Unavailable

21

CLAMP, HOSE-10.8 MM TO 13.3 MM

8JM-RAC02-00-00

Unavailable

22

HOSE, 13 (25 FEET)

8JM-RA902-10-00

Unavailable

23

CLAMP,HOSE(14.5)12.0MM-14.5MM

8JM-RAC01-00-00

Unavailable

24

SCREW, M5X0.8X20

8JP-RA242-00-00

Unavailable

25

GUIDE, NOZZLE

8JP-F413K-00-00

Unavailable

26

BRACKET, FUEL PUMP

8JP-F4491-00-00

Unavailable

27

FUEL PUMP COMP.

8KC-E3907-00-00

Unavailable

28

O-RING

8JP-F4486-00-00

Unavailable

29

CLAMP, 25

8JP-RAB27-00-00

Unavailable

30

FILTER, FUEL

8JP-F4502-00-00

Unavailable

31

FUEL PIPE ASSY

8KC-F4310-00-00

Unavailable

32

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

33

CABLE TIE,PUSH MOUNT-XMAS CLIP

8JM-RAB02-00-00

Unavailable
