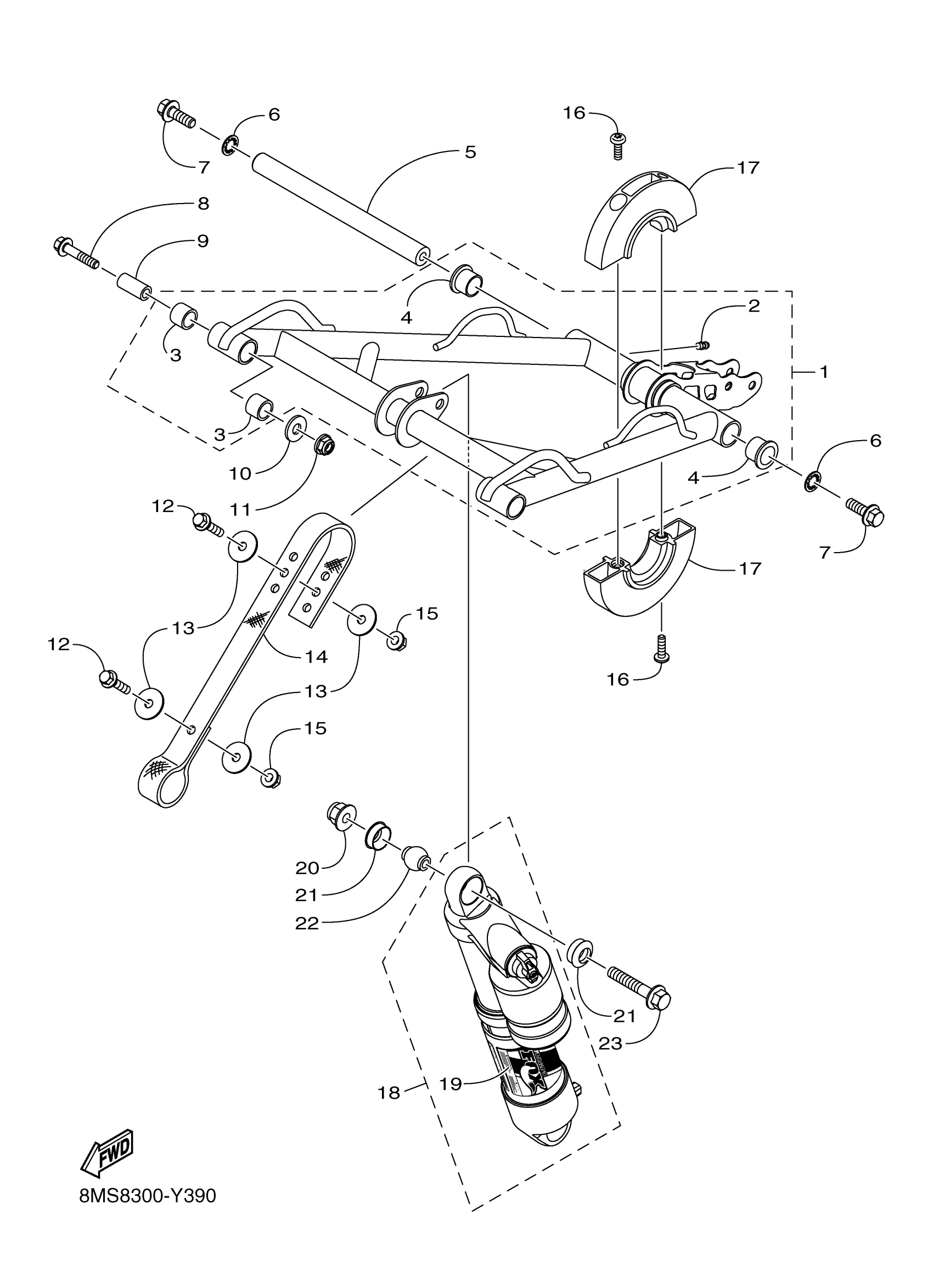

Yamaha SW1NMLSB (SIDEWINDER MTX LE 153) 8MSA 2025 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

ARM,PIVOT 1

8JR-G7331-10-00

$285.92

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$1.97

3

BUSH, 5

8JP-RA814-00-00

$3.57

4

BUSH, 0.751

8JP-RA812-00-00

$3.43

5

SHAFT 4

8JP-G7486-10-00

$27.46

6

WASHER, TOOTH M10

8JP-RA457-00-00

$0.65

7

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$2.83

8

SCREW, 7

8JP-RA296-00-00

$3.30

9

COLLAR, 16

8JP-RA733-00-00

Unavailable

10

WASHER, PLAIN

8JP-RA462-00-00

$1.05

11

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.11

12

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.11

13

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.65

14

STOPPER 1

8KG-G7495-10-00

Unavailable

15

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.06

16

SCREW, 12

8JP-RA2A1-00-00

Unavailable

17

RIM,GUIDE WHEEL

8JR-G7513-00-00

Unavailable

18

DAMPER ASSY

8MT-F330E-00-00

Unavailable

19

LABEL 3

8MT-F151F-10-00

Unavailable

20

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

21

BUSH, 8

8KG-RA817-00-00

Unavailable

22

COLLAR 12

8KG-RA724-00-00

Unavailable

23

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable
