Description

Price

1

SHELL SIDE PANEL A

8MS-K8140-50-00

Unavailable

2

NUT, CLIP 10

8JP-RA352-00-00

$1.64

3

DAMPER, NOISE 16

8KC-K7276-00-00

$25.99

4

DAMPER, NOISE 15

8KC-K7275-00-00

$15.99

5

DAMPER, NOISE 14

8KC-K7274-00-00

$26.99

6

PROTECTOR 6

8KC-K7556-01-00

$24.99

7

PROTECTOR 7

8KC-K7557-10-00

$3.88

8

PLATE 1

8KC-K8181-00-00

$7.49

9

SEAL, EXT. 1

8KC-G1138-00-00

$16.99

10

RIVET, 14

8JP-RA523-00-00

$1.22

11

SHELL SIDE PANEL A

8MS-K8130-50-00

Unavailable

12

DAMPER, NOISE 12

8KC-K7272-00-00

$16.99

13

DAMPER, NOISE 11

8KC-K7271-00-00

$18.99

14

DAMPER, NOISE 13

8KC-K7273-00-00

$18.99

15

KNOB

8KC-K7324-00-00

$1.86

16

NUT, CLIP 1/4

8JP-RA350-00-00

Unavailable

17

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

18

WASHER

8JP-RA429-00-00

Unavailable

19

CLIP, 6

8JP-RAC15-00-00

Unavailable

20

SCREW, 4

8KC-RA238-00-00

Unavailable

21

BRKT., FR. HOOD

8MT-F1979-00-00

Unavailable

22

SCREW, TAPPING 1/4

8JP-RA202-00-00

Unavailable

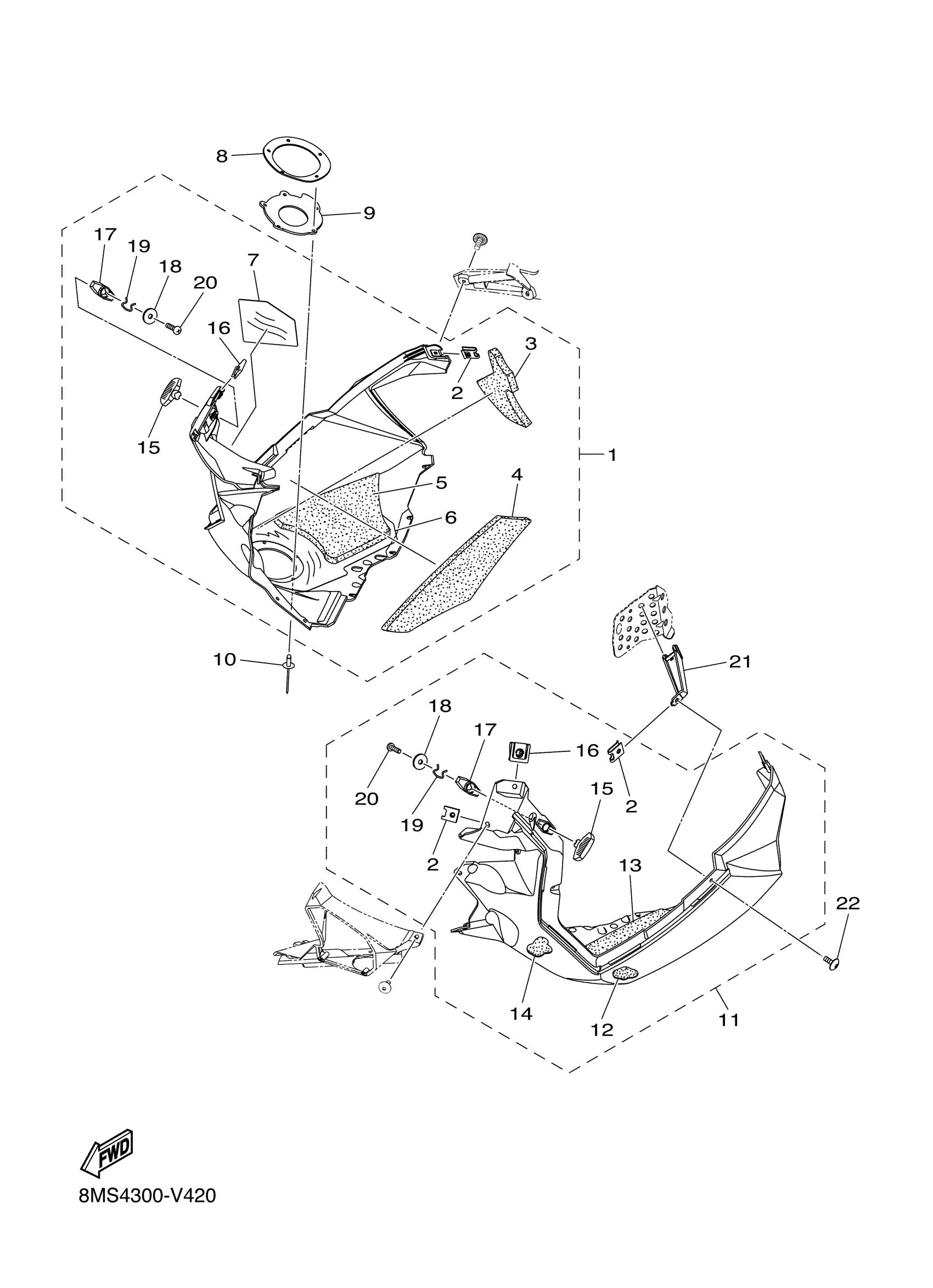

Yamaha SW1NMLSB (SIDEWINDER MTX LE 153) 8MSA 2025 HOOD Diagram

SHELL SIDE PANEL A

NUT, CLIP 10

DAMPER, NOISE 16

DAMPER, NOISE 15

DAMPER, NOISE 14

PROTECTOR 6

PROTECTOR 7

PLATE 1

SEAL, EXT. 1

RIVET, 14

SHELL SIDE PANEL A

DAMPER, NOISE 12

DAMPER, NOISE 11

DAMPER, NOISE 13

KNOB

NUT, CLIP 1/4

PLATE, BACK UP 1

WASHER

CLIP, 6

SCREW, 4

BRKT., FR. HOOD

SCREW, TAPPING 1/4
