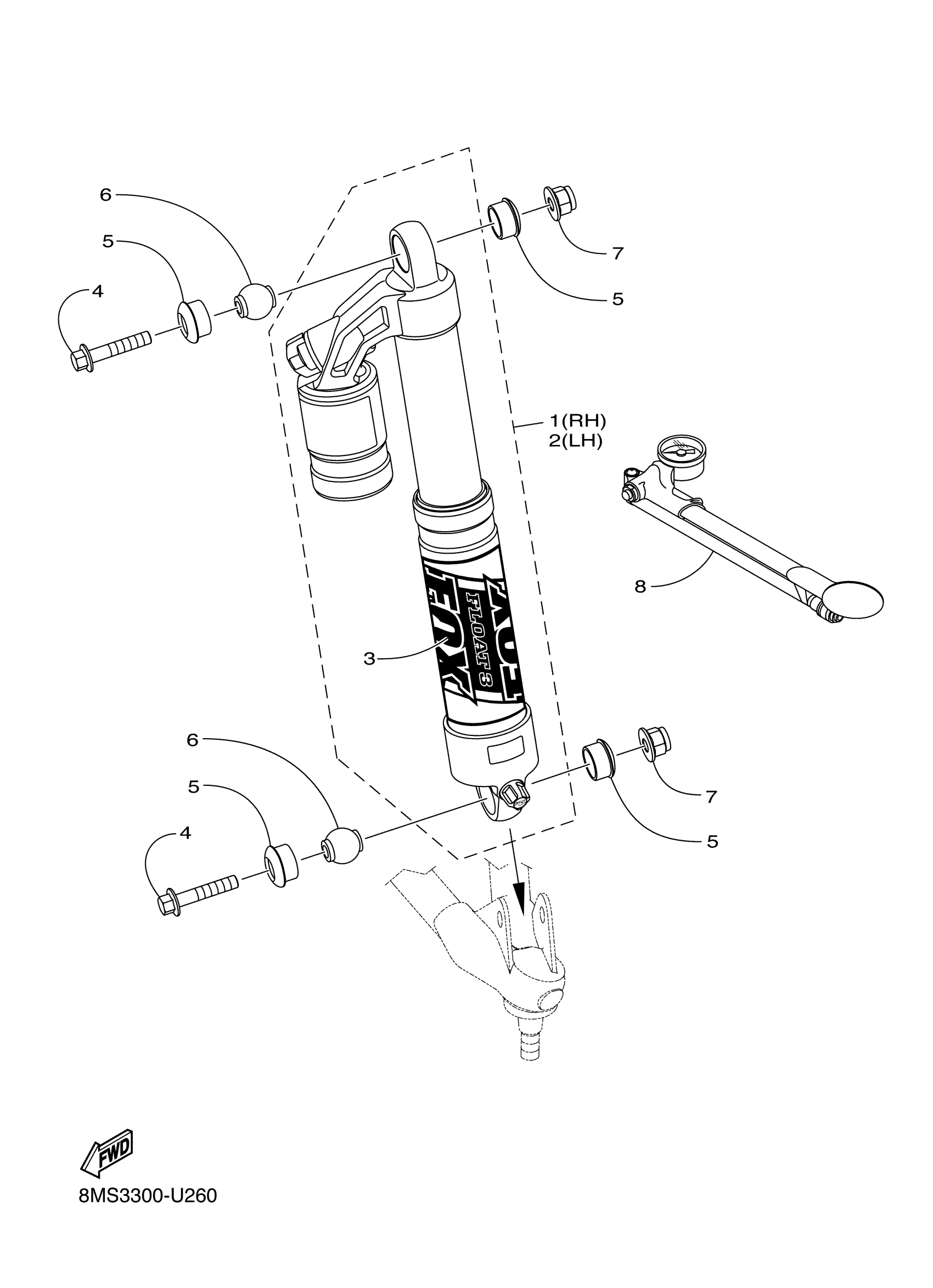

Yamaha SW1NMLSB (SIDEWINDER MTX LE 153) 8MSA 2025 FRONT SUSPENSION 2 Diagram

#

Description

Price

1

ABSORBER ASSY 2

8MT-F377A-00-00

$579.70

2

ABSORBER ASSY 1

8MT-F376A-00-00

$579.70

3

LABEL 3

8MT-F151F-00-00

$43.31

4

BOLT, FLG. M8X50

8KG-RA1B9-00-00

$3.58

5

BUSH, 8

8KG-RA817-00-00

$3.32

6

COLLAR 12

8KG-RA724-00-00

Unavailable

7

NUT FLANGE LOCKING

8JP-RA360-10-00

$0.90

8

ADJUSTER

8KN-F3703-00-00

Unavailable
