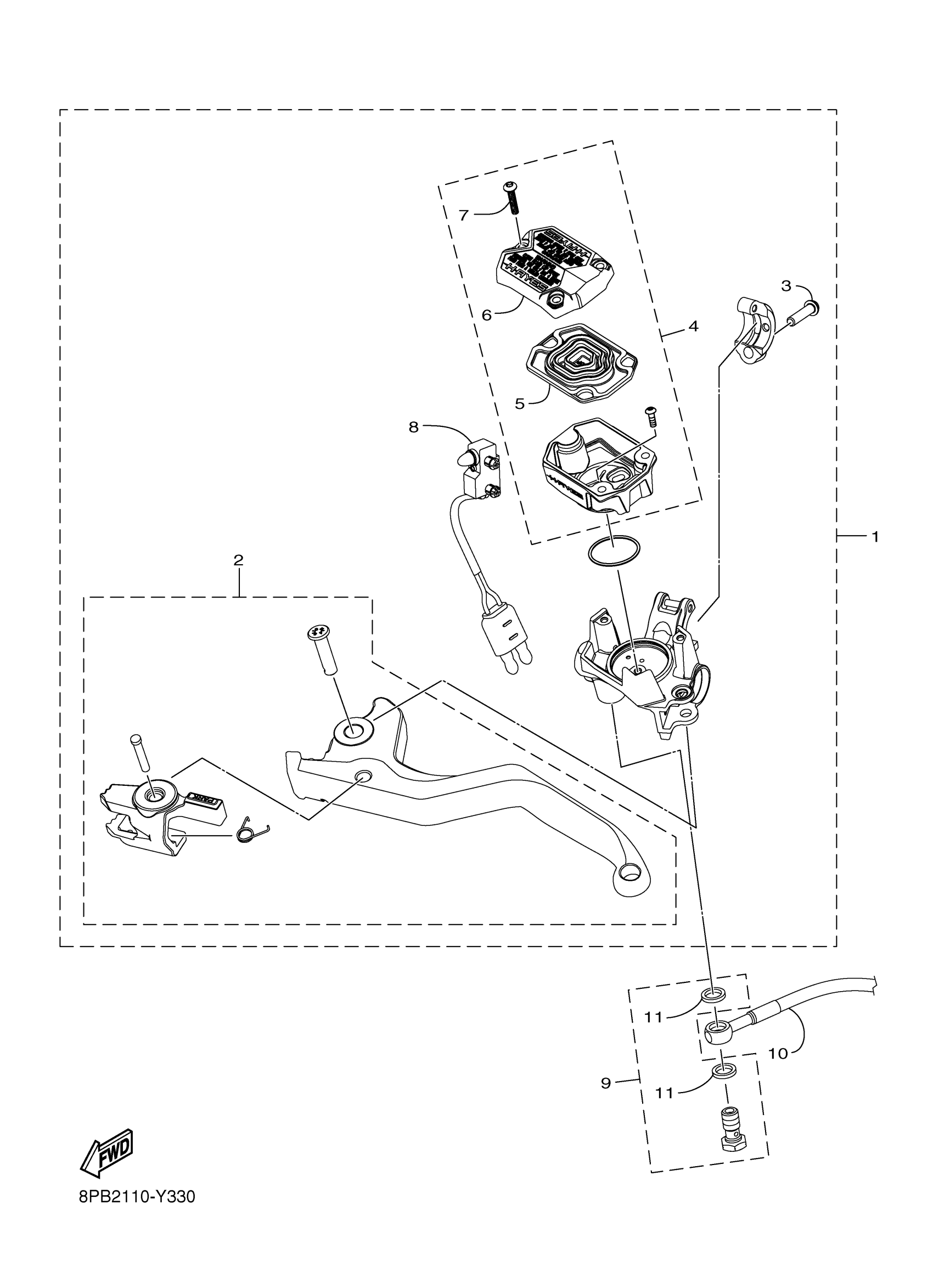

Yamaha SW1NMLSB (SIDEWINDER MTX LE 153) 8MSA 2025 BRAKE Diagram

#

Description
Price

1

MASTER CYLINDER AS

8MY-F583T-20-00

$342.76

2

BRAKE LEVER SET

8MY-F610A-10-00

$86.50

3

SCREW, 4

8JP-RA238-00-00

$2.78

4

BODY, MASTER CYLIN

8MY-F5851-10-00

Unavailable

5

DIAPHRAGM, RESERVO

8MY-F5854-00-00

Unavailable

6

CAP, RESERVOIR

8MY-F5852-00-00

$10.37

7

SCREW, TAPPING

8MY-RA276-00-00

$0.58

8

STOP SWITCH ASSY

8JP-H2530-00-00

Unavailable

9

BOLT, UNION

8NS-RA1B3-00-00

$7.67

10

HOSE, BRAKE 1

8MY-F5872-00-00

$53.49

11

WASHER, 4

8JP-RA435-00-00

$1.94
