- SW1NML62KY (SIDEWINDER M TX LE) 8MT4 2019
TRACK SUSPENSION 4

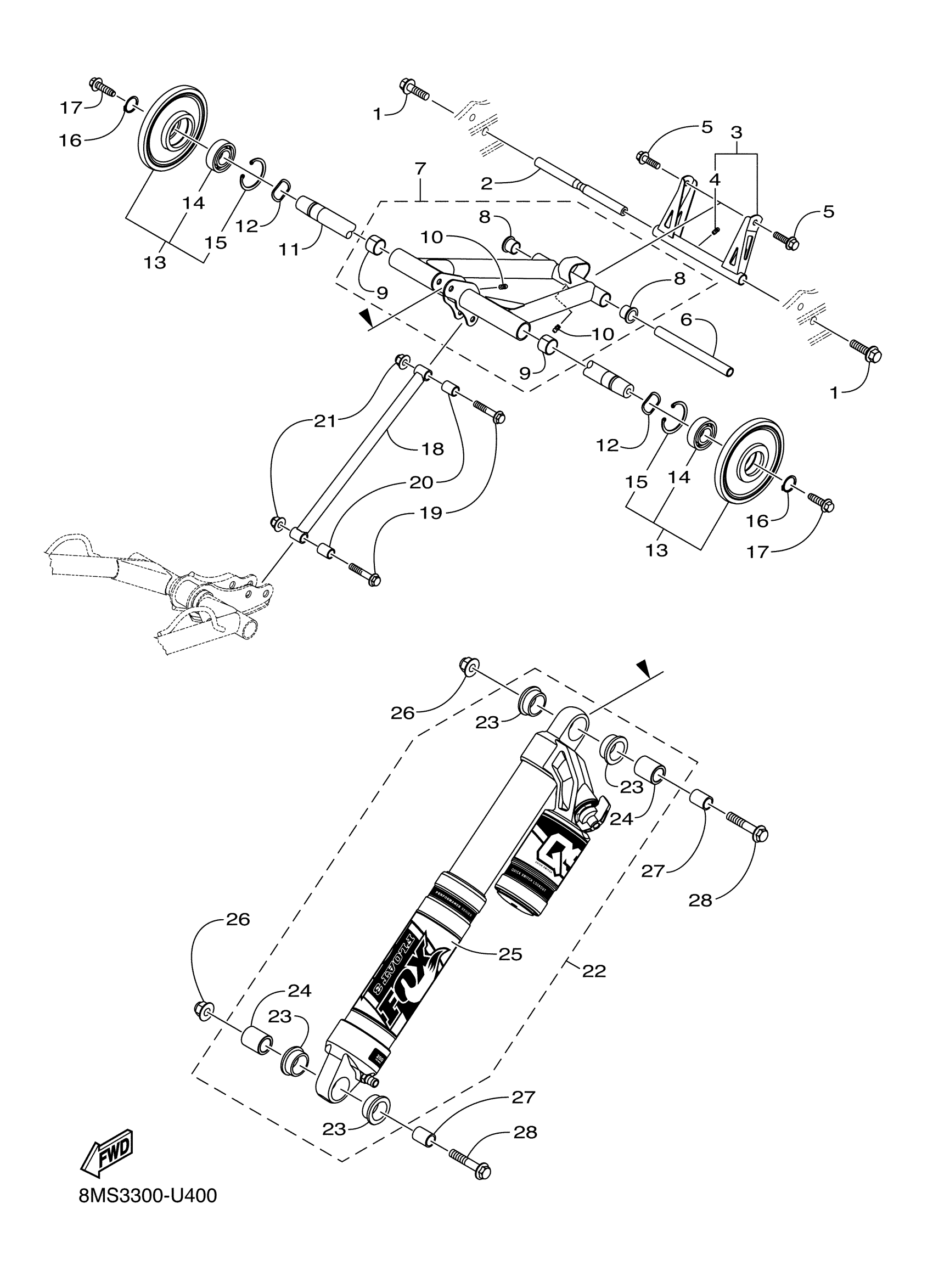

Yamaha SW1NML62KY (SIDEWINDER M TX LE) 8MT4 2019 TRACK SUSPENSION 4 Diagram
#
Description
Price
1
BOLT, FLG. M8X1.25
8JP-RA186-00-00
$0.54
2
SHAFT 6
8JR-G7488-00-00
Unavailable
3
BRACKET 3
8JR-G7417-10-00
Unavailable
4
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
5
BOLT, FLANGE M10X1.25X30
8JP-RA198-10-00
Unavailable
6
SHAFT 5
8JR-G7487-10-00
$40.99
7
ARM, PIVOT 2
8JR-G7332-20-00
Unavailable
8
BUSH, 0.751
8JP-RA812-00-00
$4.35
9
BUSH, 6
8JP-RA815-00-00
Unavailable
10
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
11
SHAFT 2
8JR-G7475-10-00
Unavailable
12
WASHER, WAVE
8JP-RA463-00-00
$3.35
13
WHEEL,SUSPENSION 2
8JR-G7312-00-00
$69.99
14
BEARING, 3
8JP-RAG08-00-00
Unavailable
15
CIRCLIP, 4
8JP-RAH10-00-00
$1.81
16
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
17
BOLT, FLG. M10X1.2
8JP-RA196-00-00
Unavailable
18
ROD, RELAY
8MT-G7494-00-00
Unavailable
19
BOLT,FLG. M10X1.25X45
8JP-RA1A2-00-00
Unavailable
20
COLLAR 12
8JP-RA724-10-00
Unavailable
21
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
22
SHOCK ABSORBER
8MT-G7480-00-00
Unavailable
23
BUSH, 8
8JP-RA817-00-00
Unavailable
24
COLLAR, 15
8JP-RA732-00-00
Unavailable
25
LABEL 3
8MT-F151F-00-00
Unavailable
26
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
27
COLLAR 12
8JP-RA724-10-00
Unavailable
28
BOLT,FLG. M10X1.25X45
8JP-RA1A2-00-00
Unavailable
