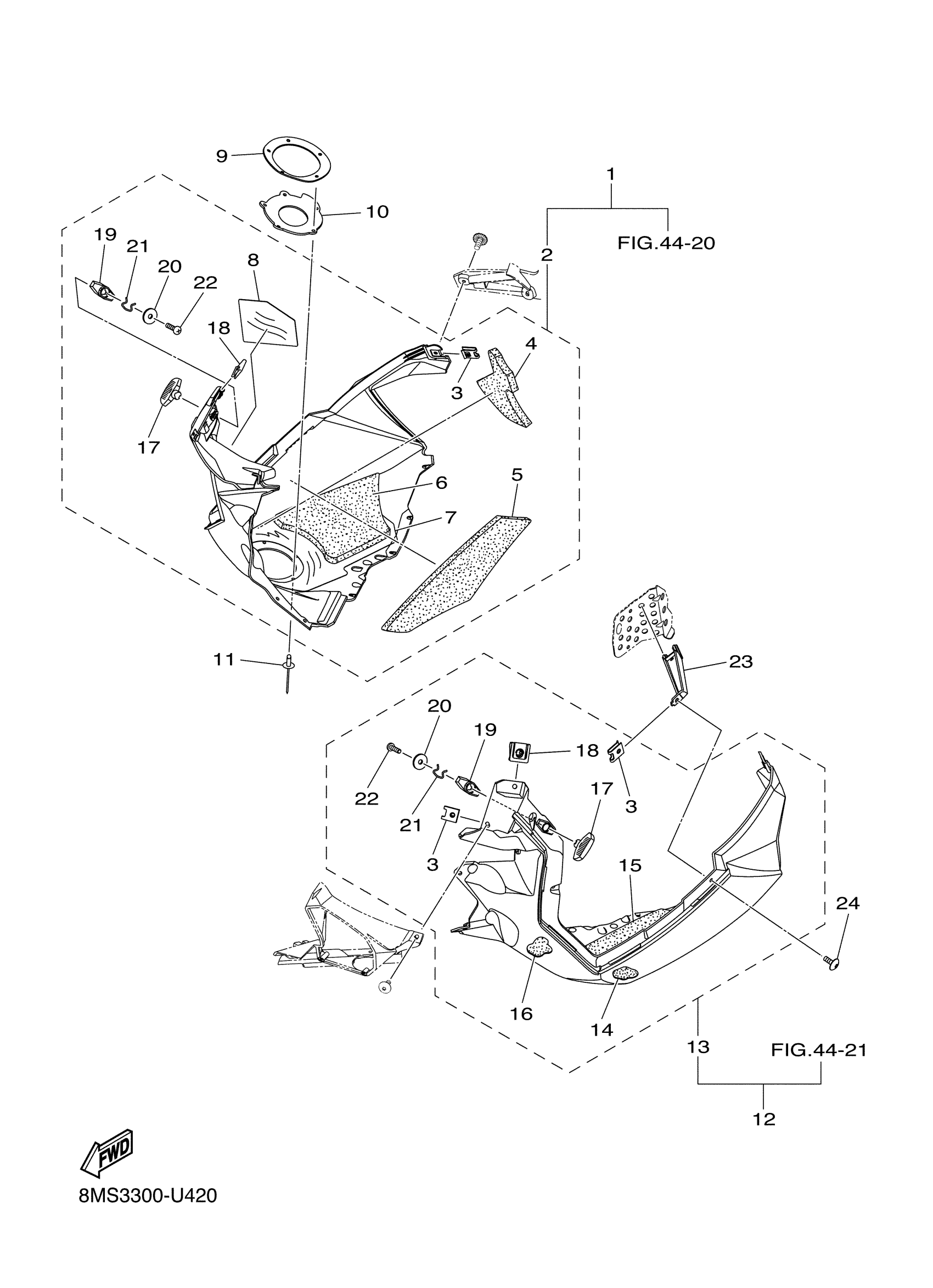

Yamaha SW1NML62KY (SIDEWINDER M TX LE) 8MT4 2019 HOOD Diagram

#

Description
Price

1

HOOD 2

8MS-F1983-10-00

$163.17

2

HOOD 4

8KC-F198H-10-00

Unavailable

3

NUT, CLIP 10

8JP-RA352-00-00

$1.28

4

DAMPER, NOISE 16

8KC-K7276-00-00

$20.20

5

DAMPER, NOISE 15

8KC-K7275-00-00

$15.83

6

DAMPER, NOISE 14

8KC-K7274-00-00

$21.52

7

PROTECTOR 6

8KC-K7556-01-00

$19.58

8

PROTECTOR 7

8KC-K7557-10-00

$3.30

9

PLATE 1

8KC-K8181-00-00

$7.02

10

SEAL, EXT. 1

8KC-G1138-00-00

$13.17

11

RIVET, 14

8JP-RA523-00-00

$0.96

12

HOOD 1

8MS-F1982-10-00

$134.64

13

. HOOD 3

8KC-F197H-10-00

$134.64

14

DAMPER, NOISE 11

8KC-K7271-00-00

$15.83

15

DAMPER, NOISE 12

8KC-K7272-00-00

$15.83

16

DAMPER, NOISE 13

8KC-K7273-00-00

Unavailable

17

KNOB

8KC-K7324-00-00

Unavailable

18

NUT, CLIP 1/4

8JP-RA350-00-00

Unavailable

19

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

20

WASHER

8JP-RA429-00-00

Unavailable

21

CLIP, 6

8JP-RAC15-00-00

Unavailable

22

SCREW, 4

8KC-RA238-00-00

Unavailable

23

BRKT., FR. HOOD

8MT-F1979-00-00

Unavailable

24

SCREW, TAPPING 1/4

8JP-RA202-00-00

Unavailable
