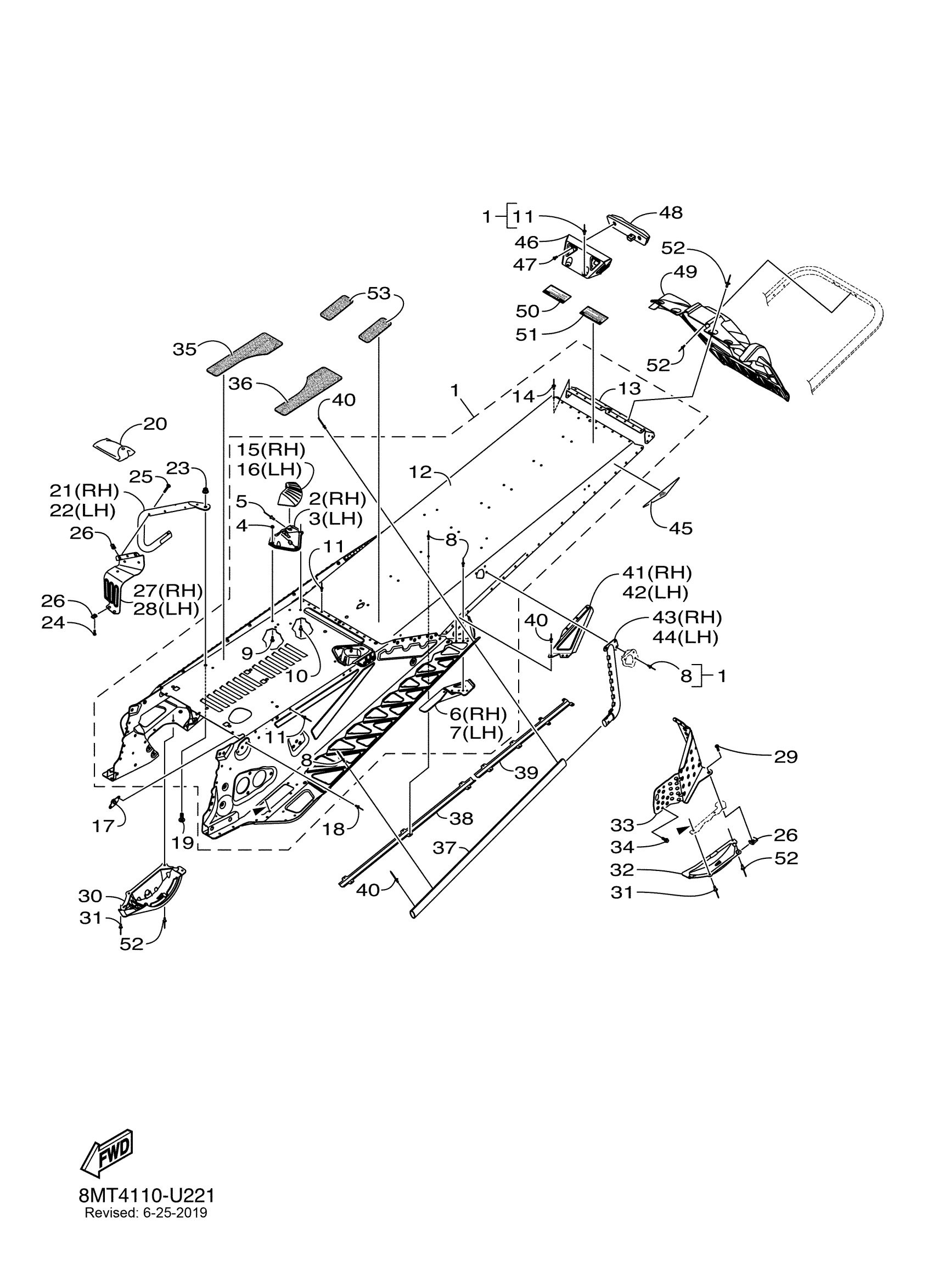

Yamaha SW1NML62KY (SIDEWINDER M TX LE) 8MT4 2019 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8KC-F1950-30-00
Unavailable
2
BRKT., MEMBER 2
8MT-F115M-10-00
Unavailable
3
. BRACKET, MEMBER 1
8MT-F115L-10-00
Unavailable
4
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
5
RIVET, 20
8JP-RA532-00-00
$2.82
6
BRACKET,RR.TRACK S
8MT-F1954-10-00
Unavailable
7
BRACKET,RR.TRACK S
8MT-F1944-10-00
Unavailable
8
RIVET, 11
8JP-RA520-00-00
$0.70
9
SCREW, M5X0.8X12
8JP-RA241-00-00
$4.88
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 17
8JP-RA529-00-00
$0.54
12
PANEL, SUB FRAME 1
8KC-F1912-20-00
Unavailable
13
REINEFORCEMENT, FR
8MT-F1923-10-00
Unavailable
14
RIVET, 5
8JP-RA514-10-00
$0.70
15
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
16
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
17
BRACKET
8JP-F1919-00-00
Unavailable
18
RIVET, 12
8JP-RA521-00-00
Unavailable
19
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
20
TOOL KIT
8JP-F8100-00-00
Unavailable
21
REINFORCEMENT, FRA
8MT-F192E-00-00
Unavailable
22
REINFORCEMENT, FRA
8MT-F1929-00-00
Unavailable
23
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
24
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
25
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
26
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
27
REINFORCEMENT, FRA
8MT-F192E-10-00
Unavailable
28
REINFORCEMENT, FRA
8MT-F1929-10-00
Unavailable
29
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
30
PROTECTOR, CHAIN
8MT-F2147-00-00
Unavailable
31
RIVET, 17
8LJ-RA529-00-00
Unavailable
32
PROTECTOR, DISK BR
8MT-F5717-00-00
Unavailable
33
PROTECTOR, DISK BR
8JW-F5718-50-00
Unavailable
34
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
35
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
36
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
37
REINFORCEMENT, FOO
8MT-F1926-10-00
Unavailable
38
PROTECTER, WIRE HA
8KT-H2589-10-00
Unavailable
39
EXTENSION, WIRE HA
8KT-H258A-10-00
Unavailable
40
RIVET, 3/16
8JP-RA527-00-00
Unavailable
41
GUSSET
8KG-F1135-20-00
Unavailable
42
GUSSET
8KG-F1134-20-00
Unavailable
43
GUSSET
8MT-F1137-10-00
Unavailable
44
GUSSET
8MT-F1136-10-00
Unavailable
45
LABEL 1
8JP-F151A-10-00
Unavailable
46
BRACKET, TAILLIGHT
8MT-F117E-10-00
Unavailable
47
SCREW, M5X1.0X10
8JP-RA250-00-00
Unavailable
48
TAILLIGHT ASSY
8JP-H4500-00-00
Unavailable
49
FLAP
8JP-K7595-00-00
Unavailable
50
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
51
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
52
RIVET, 15
8JP-RA524-00-00
Unavailable
53
PROTECTOR, FRAME A
8LN-F195A-00-00
Unavailable
