- SW1NM62JL (SIDEWINDER M TX 162) 8MP1 2018
TRACK SUSPENSION 2

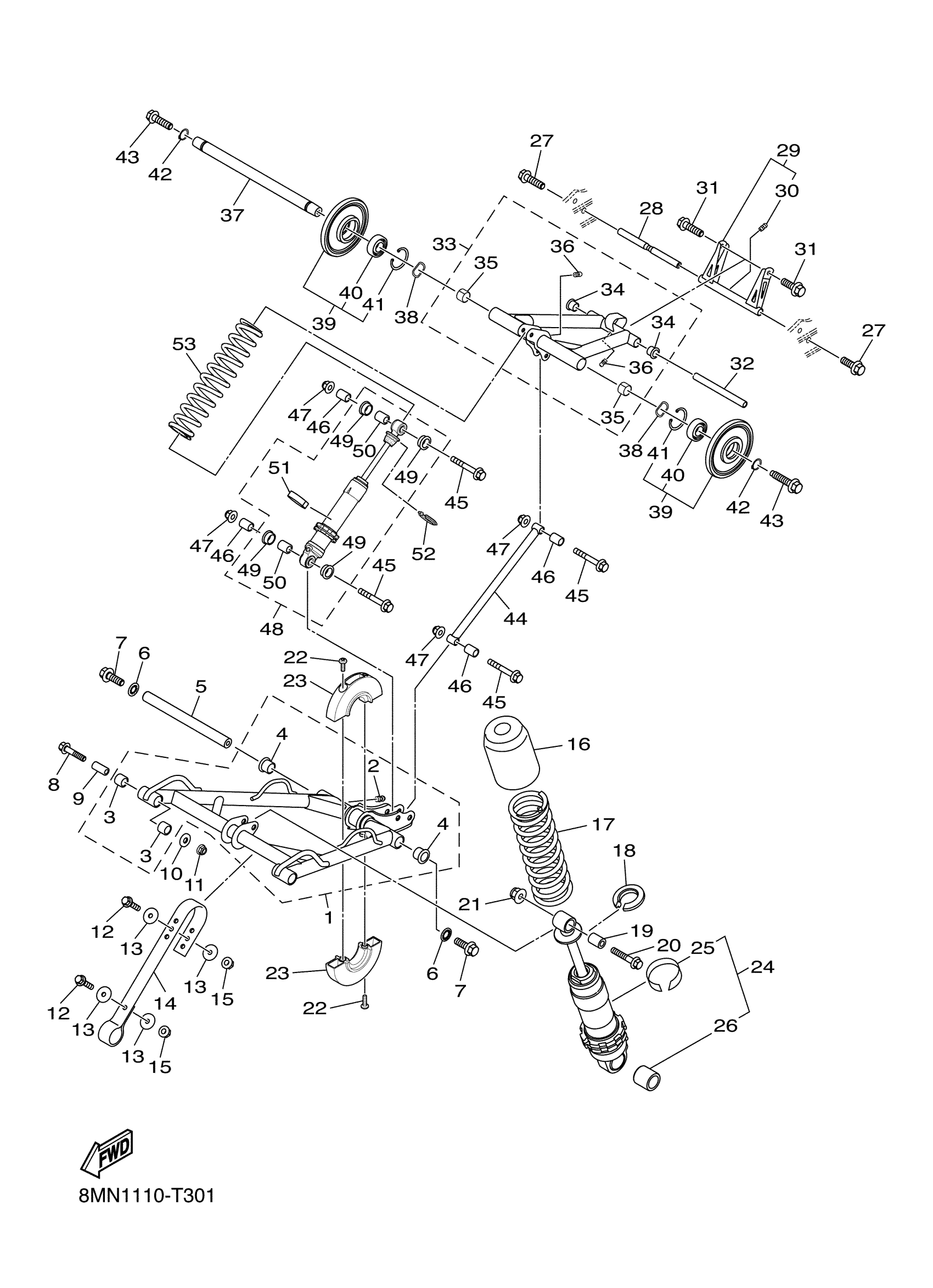

Yamaha SW1NM62JL (SIDEWINDER M TX 162) 8MP1 2018 TRACK SUSPENSION 2 Diagram
#
1
ARM,PIVOT 1
8JR-G7331-10-00
$311.99
2
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
3
BUSH, 5
8JP-RA814-00-00
$4.46
4
BUSH, 0.751
8JP-RA812-00-00
$4.35
5
SHAFT 4
8JP-G7486-10-00
$35.99
6
WASHER, TOOTH M10
8JP-RA457-00-00
$0.43
7
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
8
SCREW, 7
8JP-RA296-00-00
$3.88
9
COLLAR, 16
8JP-RA733-00-00
Unavailable
10
WASHER, PLAIN
8JP-RA462-00-00
$0.74
11
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
12
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
13
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
14
STOPPER 1
8KG-G7495-00-00
Unavailable
15
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
16
COVER
8JP-F2211-00-00
Unavailable
17
SPRING
8JP-G7336-00-00
Unavailable
18
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
19
COLLAR, 14
8KV-RA726-00-00
Unavailable
20
BOLT,FLG. M10X1.25X45
8JP-RA1A2-00-00
Unavailable
21
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
22
SCREW, 10-14X3/4
8JP-RA289-00-00
Unavailable
23
RIM,GUIDE WHEEL
8JR-G7513-00-00
Unavailable
24
DAMPER SUB ASY
8KG-F2201-10-00
Unavailable
25
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
26
COLLAR, 22.4
8JP-RA730-00-00
Unavailable
27
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
28
SHAFT 6
8JR-G7488-00-00
Unavailable
29
BRACKET 3
8JR-G7417-10-00
Unavailable
30
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
31
BOLT, FLANGE M10X1.25X30
8JP-RA198-10-00
Unavailable
32
SHAFT 5
8JR-G7487-10-00
Unavailable
33
ARM, PIVOT 2
8JR-G7332-20-00
Unavailable
34
BUSH, 0.751
8JP-RA812-00-00
$4.35
35
BUSH, 6
8JP-RA815-00-00
Unavailable
36
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
37
SHAFT 2
8JR-G7475-10-00
Unavailable
38
WASHER, WAVE
8JP-RA463-00-00
Unavailable
39
WHEEL,SUSPENSION 2
8JR-G7312-00-00
Unavailable
40
BEARING, 3
8JP-RAG08-00-00
Unavailable
41
CIRCLIP, 4
8JP-RAH10-00-00
Unavailable
42
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
43
BOLT, FLG. M10X1.2
8JP-RA196-00-00
Unavailable
44
ROD, RELAY
8MT-G7494-00-00
Unavailable
45
BOLT,FLG. M10X1.25X45
8JP-RA1A2-00-00
Unavailable
46
COLLAR 12
8JP-RA724-10-00
Unavailable
47
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
48
SHOCK ABSORBER
8LM-G7480-00-00
Unavailable
49
BUSH, 3
8JP-RA804-00-00
Unavailable
50
COLLAR, 14.5
8JP-RA728-00-00
Unavailable
51
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
52
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
53
SPRING 1
8KG-G7489-00-00
Unavailable
