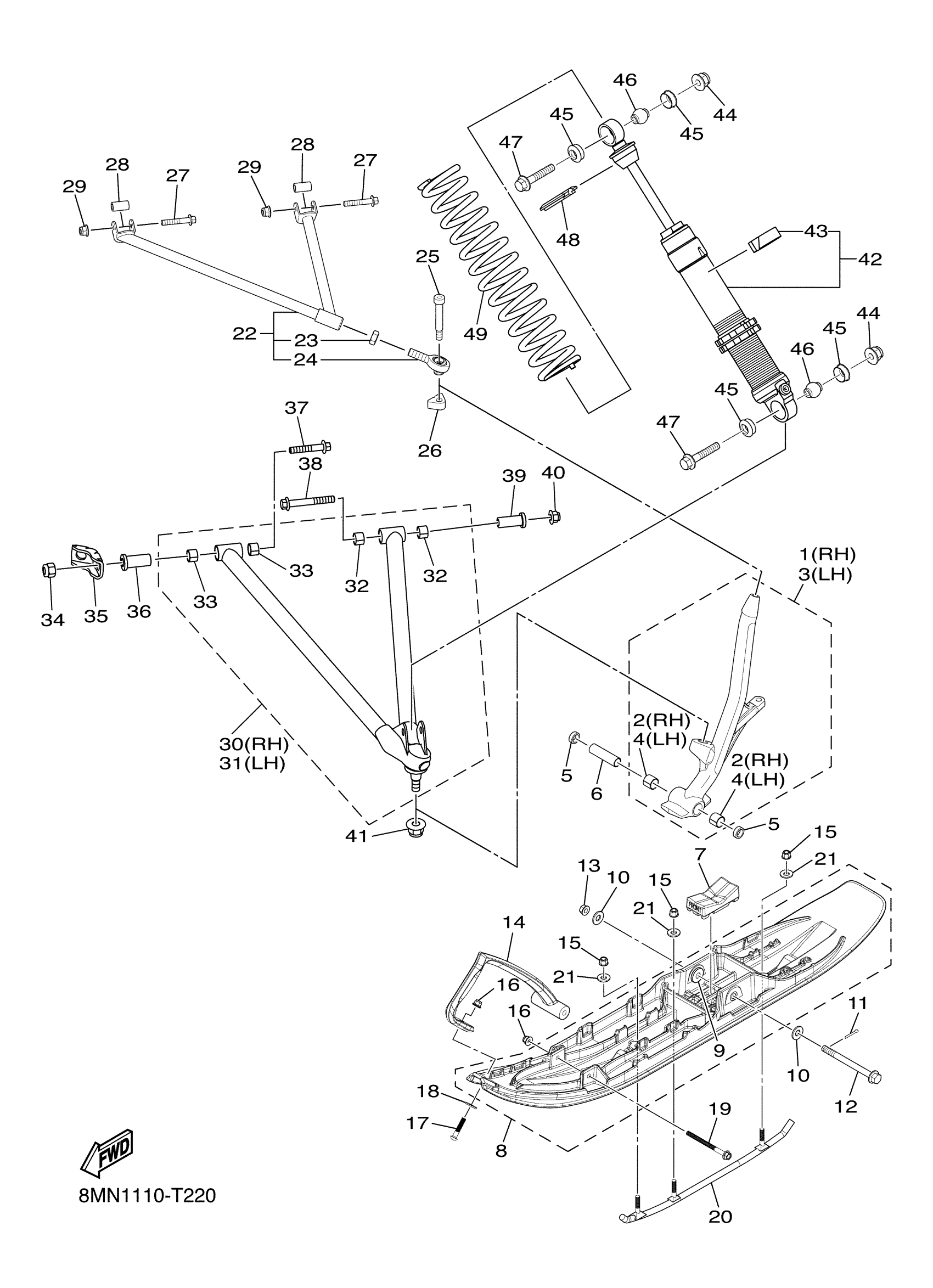

Yamaha SW1NM62JL (SIDEWINDER M TX 162) 8MP1 2018 SKI Diagram
#
1
KNUCKLE, STEERING
8KU-F3521-80-00
$244.99
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE, STEERING
8KU-F3511-80-00
$271.99
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 6
8JP-RA718-00-00
$3.40
6
COLLAR, 75
8JP-RA731-00-00
$31.99
7
STOPPER 1
8NS-F3743-00-00
$22.99
8
SKI COMP. 1
8KC-F3710-00-00
Unavailable
9
. COLLAR 1
8EX-F3754-00-00
Unavailable
10
WASHER, PLATE
90201-10043-00
$2.22
11
PIN, COTTER
91490-20025-00
$1.99
12
BOLT, FLANGE
90105-10070-00
$12.49
13
NUT, S/L FLANGE
95602-10200-00
$4.82
14
HANDLE MTX RED
8KC-F3712-20-00
$79.99
15
NUT, FLG. LOCKING
8KC-RA358-00-00
Unavailable
16
NUT, FLG. LOCKING
8KC-RA358-00-00
Unavailable
17
BOLT, REINFORCEMEN
8KC-F3755-00-00
Unavailable
18
WASHER 1
8KC-F3737-00-00
Unavailable
19
BOLT, REINFORCEMEN
8KC-F3756-00-00
Unavailable
20
RUNNER 2
8KC-F3732-00-00
Unavailable
21
WASHER, 10.98X28.0
8KC-RA443-00-00
Unavailable
22
ARM, FRONT UPPER
8KC-F354A-00-00
Unavailable
23
NUT
8KU-F3778-00-00
Unavailable
24
JOINT, UNIVERSAL 1
8KU-F3841-00-00
Unavailable
25
BOLT
8KU-F3767-00-00
Unavailable
26
NUT
8KU-F3856-00-00
Unavailable
27
BOLT,FLG. M8X1.25X45
8KG-RA190-00-00
Unavailable
28
COLLAR 8
8KG-RA720-00-00
Unavailable
29
NUT,SELF-LOCKING M8-1.25
8KG-RA301-00-00
Unavailable
30
ARM,FR. LWR. RH.
8KC-F358A-00-00
Unavailable
31
ARM,FR. LWR. LH.
8KC-F357A-00-00
Unavailable
32
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
33
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
34
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
35
ARM, 1
8JP-F3543-00-00
Unavailable
36
COLLAR, 9
8JP-RA721-00-00
Unavailable
37
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
38
BOLT, FLG. M10-1.2
8JP-RA194-20-00
Unavailable
39
COLLAR, 7
8JP-RA719-00-00
Unavailable
40
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
41
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
42
DAMPER ASSY
8LM-F330E-00-00
Unavailable
43
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
44
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
45
BUSH, 8
8KG-RA817-00-00
Unavailable
46
COLLAR 12
8KG-RA724-00-00
Unavailable
47
BOLT, FLG. M8X50
8KG-RA1B9-00-00
Unavailable
48
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
49
SPRING
8KU-F3351-00-00
Unavailable
