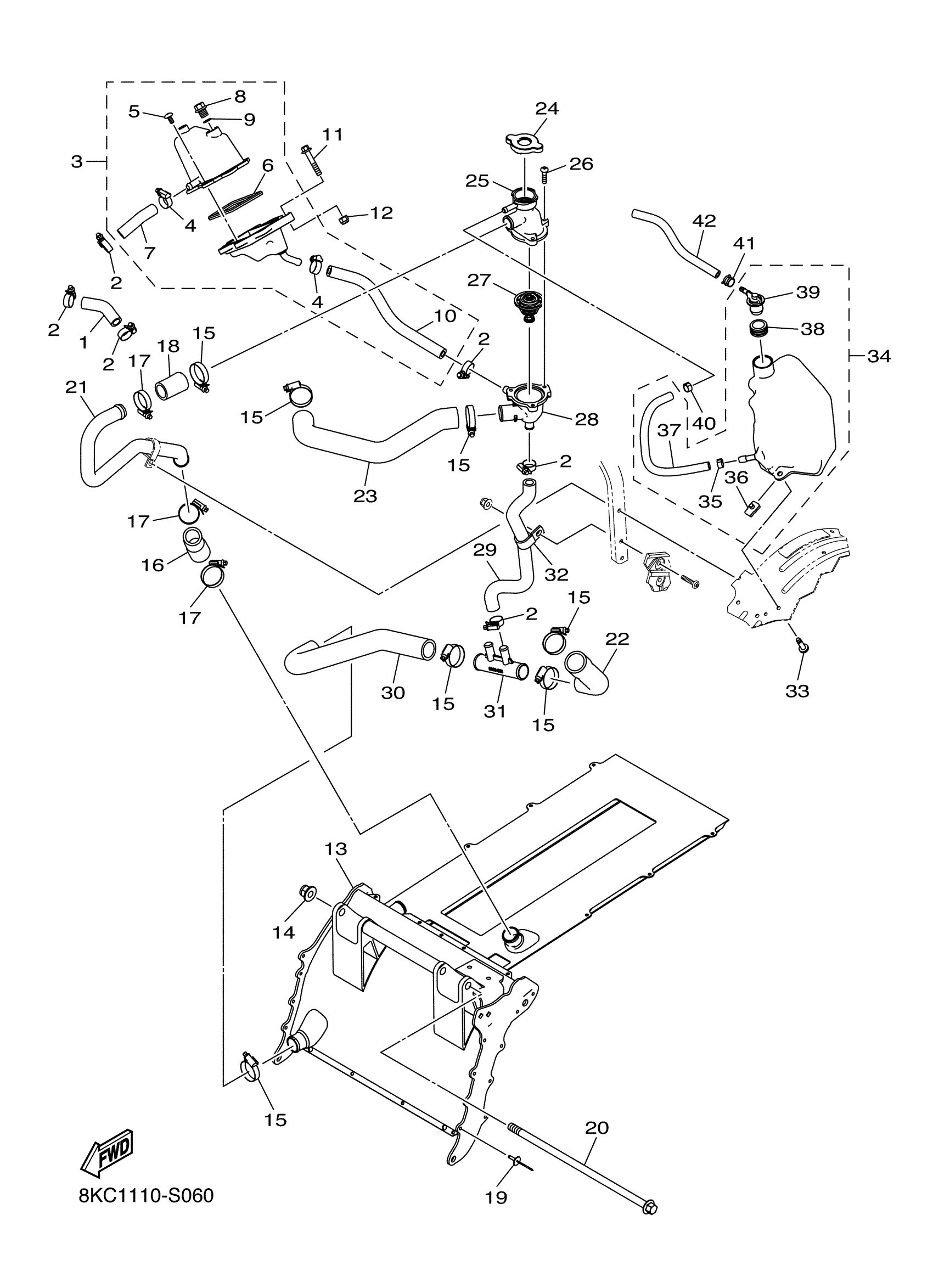

Yamaha SW1NM62JL (SIDEWINDER M TX 162) 8MP1 2018 RADIATOR HOSE Diagram
#
1
HOSE 2
8JP-E243E-00-00
Unavailable
3
TANK ASSY
8KC-E2490-00-00
Unavailable
5
SCREW, 6
8KC-RA295-00-00
Unavailable
7
HOSE 2
8KC-E243E-00-00
Unavailable
11
BOLT FLANGE M6X1.0X
8KN-RA183-00-00
Unavailable
13
HEAT EXCHANGER ASSY
8KC-E2440-00-00
Unavailable
16
HOSE 5
8KC-E244H-00-00
Unavailable
17
CLAMP, 22
8JP-RAB24-00-00
Unavailable
18
HOSE, 4
8KC-E244G-00-00
Unavailable
19
RIVET, 9
8JP-RA518-00-00
Unavailable
19
RIVET, 11
8JP-RA520-00-00
Unavailable
20
BOLT, ENGINE MOUNT
8KC-F1481-00-00
Unavailable
21
PIPE 1
8KC-E2481-00-00
Unavailable
22
HOSE 7
8KC-E2551-00-00
Unavailable
23
HOSE 1
8KC-E243A-00-00
Unavailable
24
CAP, RADIATOR
8JP-E2462-00-00
Unavailable
25
NECK, FILLER
8KC-E2521-00-00
Unavailable
26
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
27
THERMOSTAT ASSY
8JP-E2410-00-00
Unavailable
28
HOUSING, THERMOSTA
8KC-E2417-00-00
Unavailable
29
HOSE 8
8KC-E2552-00-00
Unavailable
30
HOSE 6
8KC-E244J-00-00
Unavailable
31
JOINT
8KC-E2446-00-00
Unavailable
32
CLAMP, 3
8KC-RAB05-00-00
Unavailable
33
BOLT 1
8LN-K7537-00-00
Unavailable
34
RECOVERY TANK ASSY
8KC-F1870-00-00
Unavailable
35
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
36
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
37
. HOSE, 6 (25 FEET)
8JP-RA910-00-00
Unavailable
38
STOPPER
8KC-E2437-00-00
Unavailable
39
VALVE, CHECK 1
8JP-F4362-00-00
Unavailable
40
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
41
CLAMP, 3
8KC-RAB02-00-00
Unavailable
42
HOSE, 3 (50 FEET)
8JP-RA907-00-00
Unavailable
