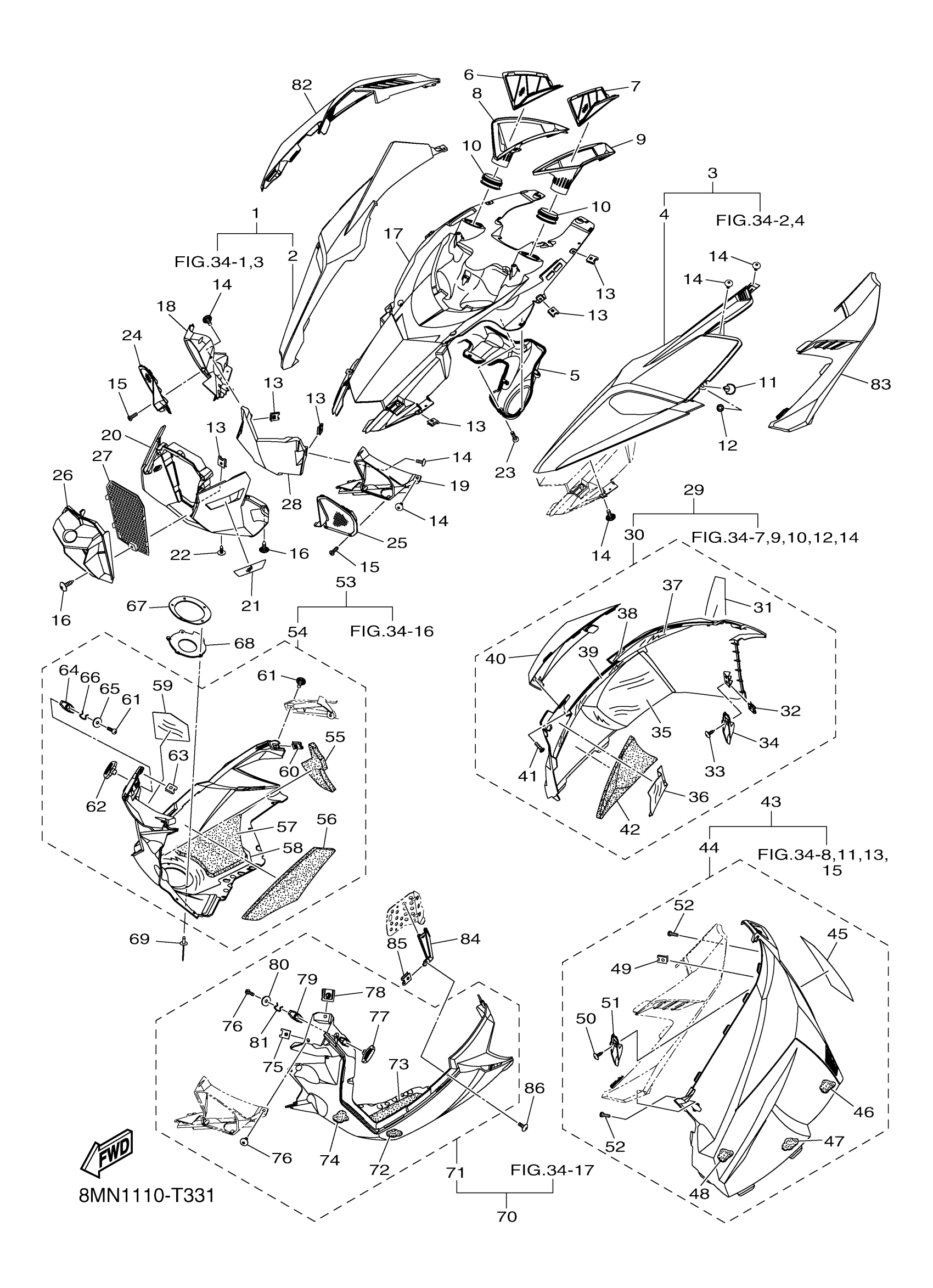

Yamaha SW1NM53JB (SIDEWINDER M TX 153) 8MN1 2018 SHROUD Diagram
#
1
HOOD 2
8KC-K7122-10-00
Unavailable
2
HOOD 2
8KC-K7122-10-00
Unavailable
3
HOOD 1
8KC-K7121-10-00
Unavailable
4
HOOD 1
8KC-K7121-10-00
Unavailable
5
INTAKE, LOWER
8KC-K715B-00-00
Unavailable
6
SCREEN, INTAKE DUC
8KC-K715E-00-00
Unavailable
7
SCREEN, INTAKE DUC
8KC-K715D-00-00
Unavailable
8
DUCT, INTAKE 2
8KC-K715G-00-00
$16.99
9
DUCT, INTAKE 1
8KC-K715F-00-00
$21.99
10
SEAL, INTAKE
8KC-K715R-00-00
$4.29
11
PIN, 2
8JP-RAK02-00-00
$26.99
12
NUT, 1
8JP-RA345-00-00
Unavailable
13
NUT, CLIP 10
8JP-RA352-00-00
$1.64
14
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
15
SCREW, 4
8KC-RA238-00-00
Unavailable
16
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
17
INTAKE, UPPER
8KC-K715C-00-00
Unavailable
18
VENT, FRONT 2
8KC-K715J-00-00
Unavailable
19
VENT, FRONT 1
8KC-K715H-00-00
Unavailable
20
DUCT, INTAKE FRON
8KC-K715K-00-00
Unavailable
21
TAPE,REFLECTOR
8MY-H5133-00-00
Unavailable
22
SCREW, 5
8KC-RA239-00-00
Unavailable
23
SCREW, 13
8JP-RA2A2-00-00
Unavailable
24
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
25
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
26
GRILLE
8KC-K715N-00-00
Unavailable
27
GUIDE 1
8KC-K7123-00-00
Unavailable
28
SHUT, INTAKE
8KC-K715P-00-00
Unavailable
29
SHELL SIDE PANEL A
8KC-K8140-40-00
Unavailable
30
SHELL SIDE PANEL A
8KC-K8140-40-00
Unavailable
31
LABEL, WARNING 1
8KC-K7761-70-00
Unavailable
32
NUT, CLIP 10
8JP-RA352-00-00
$1.64
33
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
34
HOOK 2
8KC-K715T-00-00
Unavailable
35
PROTECTOR 2
8KC-K7552-00-00
Unavailable
36
PROTECTOR 1
8KC-K7551-01-00
Unavailable
37
PROTECTOR 3
8KC-K7553-01-00
Unavailable
38
PROTECTOR 4
8KC-K7554-00-00
Unavailable
39
PROTECTOR 5
8KC-K7555-00-00
Unavailable
40
VENT, SIDE 1
8KC-K715U-00-00
Unavailable
41
SCREW, 4
8KC-RA238-00-00
Unavailable
42
DAMPER, NOISE 18
8KC-K7278-00-00
Unavailable
43
SHELL SIDE PANEL A
8KC-K8130-40-00
Unavailable
44
SHELL SIDE PANEL A
8KC-K8130-40-00
Unavailable
45
LABEL, WARNING 1
8NJ-K7761-S0-00
Unavailable
46
DAMPER, NOISE 19
8KC-K7279-00-00
Unavailable
47
DAMPER, NOISE 17
8KC-K7277-00-00
Unavailable
48
DAMPER, NOISE 17
8KC-K7277-10-00
Unavailable
49
NUT, CLIP 10
8JP-RA352-00-00
$1.64
50
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
51
HOOK 1
8KC-K715S-00-00
Unavailable
52
SCREW, 4
8KC-RA238-00-00
Unavailable
53
HOOD 2
8MN-F1983-00-00
Unavailable
54
SHELL SIDE PANEL A
8KC-K8140-50-00
Unavailable
55
DAMPER, NOISE 16
8KC-K7276-00-00
Unavailable
56
DAMPER, NOISE 15
8KC-K7275-00-00
Unavailable
57
DAMPER, NOISE 14
8KC-K7274-00-00
Unavailable
58
PROTECTOR 6
8KC-K7556-01-00
Unavailable
59
PROTECTOR 7
8KC-K7557-10-00
Unavailable
60
NUT, CLIP 10
8JP-RA352-00-00
$1.64
61
SCREW, 13
8JP-RA2A2-00-00
Unavailable
62
KNOB
8KC-K7324-00-00
Unavailable
63
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
64
PLATE, BACK UP 1
8KC-K7153-00-00
Unavailable
65
WASHER
8JP-RA429-00-00
Unavailable
66
CLIP, 6
8JP-RAC15-00-00
Unavailable
67
PLATE 1
8KC-K8181-00-00
Unavailable
68
SEAL, EXT. 1
8KC-G1138-00-00
Unavailable
69
RIVET, 14
8JP-RA523-00-00
Unavailable
70
HOOD 1
8MN-F1982-00-00
Unavailable
71
SHELL SIDE PANEL A
8KC-K8130-50-00
Unavailable
72
DAMPER, NOISE 11
8KC-K7271-00-00
Unavailable
73
DAMPER, NOISE 12
8KC-K7272-00-00
Unavailable
74
DAMPER, NOISE 13
8KC-K7273-00-00
Unavailable
75
NUT, CLIP 10
8JP-RA352-00-00
$1.64
76
SCREW, 13
8JP-RA2A2-00-00
Unavailable
77
KNOB
8KC-K7324-00-00
Unavailable
78
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
79
PLATE, BACK UP 1
8KC-K7153-00-00
Unavailable
80
WASHER
8JP-RA429-00-00
Unavailable
81
CLIP, 6
8JP-RAC15-00-00
Unavailable
82
SHROUD
8MG-K7111-00-00
Unavailable
83
SHROUD 2
8MG-K7112-00-00
Unavailable
84
BRKT., FR. HOOD
8MT-F1979-00-00
Unavailable
85
NUT, CLIP 10
8JP-RA352-00-00
$1.64
86
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
