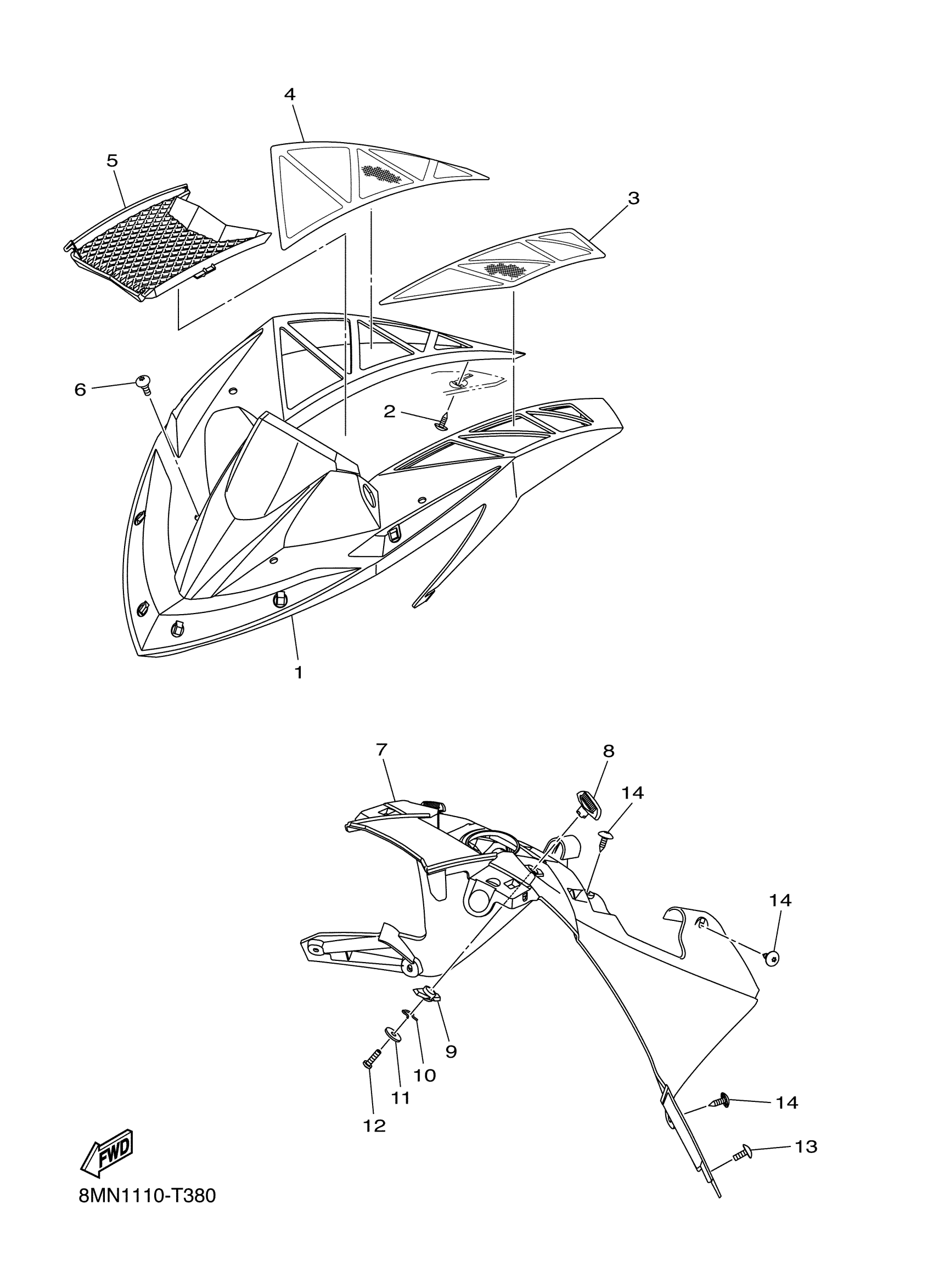

Yamaha SW1NM53JB (SIDEWINDER M TX 153) 8MN1 2018 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL,INSTRUMENT

8MT-K7712-01-00

Unavailable

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.62

3

SCREEN, INTAKE DUC

8MT-K715D-00-00

$38.35

4

SCREEN, INTAKE DUC

8MT-K715E-00-00

Unavailable

5

LOUVER 1

8KC-K7131-00-00

Unavailable

6

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.92

7

PANEL, INSTRUMENT

8KC-K7711-90-00

$83.14

8

KNOB

8KC-K7324-00-00

$1.77

9

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

10

CLIP, 6

8JP-RAC15-00-00

$8.94

11

WASHER

8JP-RA429-00-00

$0.79

12

SCREW, 13

8JP-RA2A2-00-00

$0.39

13

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.18

14

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.62
