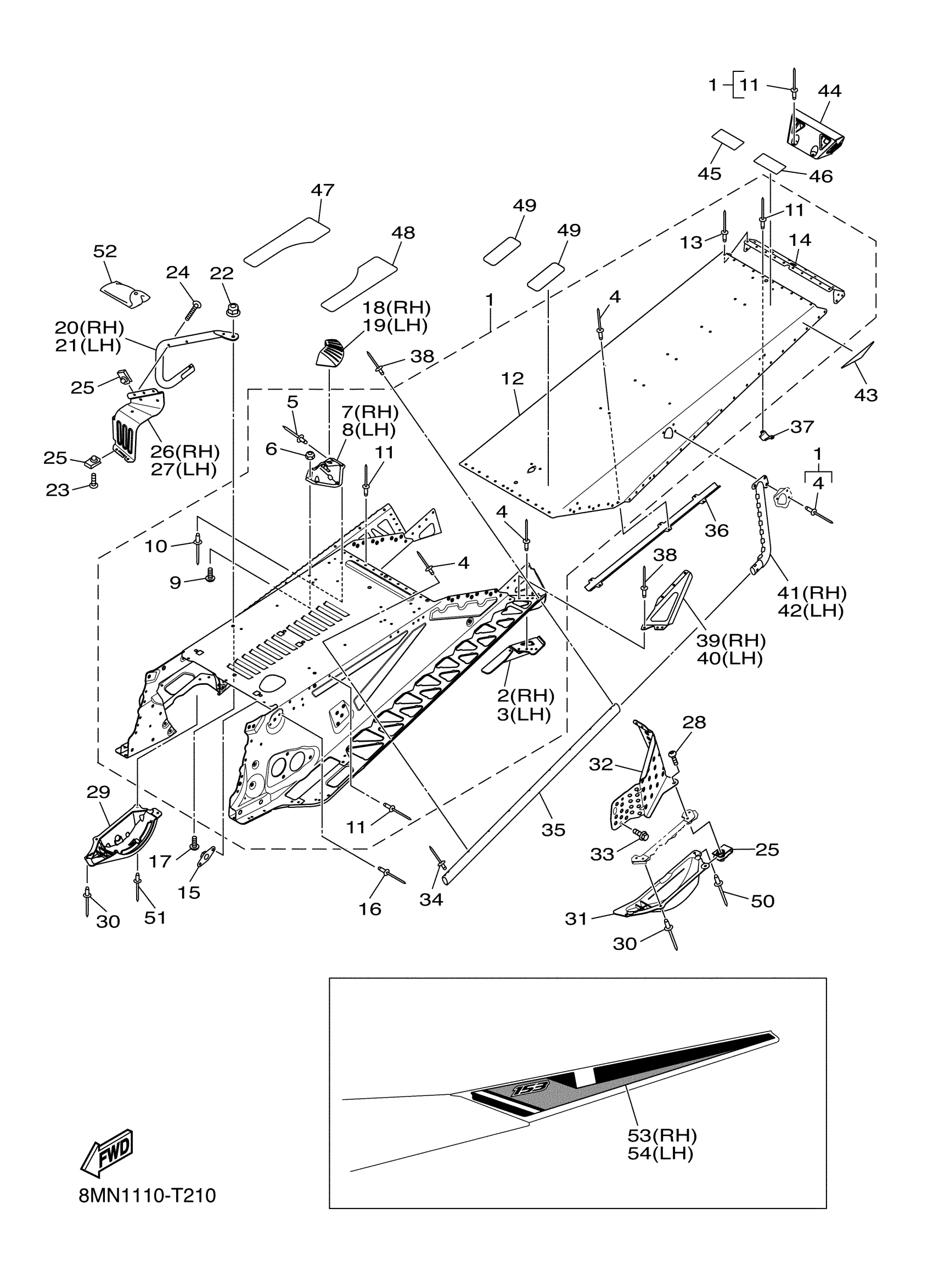

Yamaha SW1NM53JB (SIDEWINDER M TX 153) 8MN1 2018 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8KG-F1950-41-00
Unavailable
2
BRACKET, RR.TRACK SUSPENTION 2
8JR-F1954-00-00
$28.99
3
BRACKET, RR.TRACK SUSPENTION 1
8JR-F1944-00-00
$29.99
4
RIVET, 11
8JP-RA520-00-00
$0.70
5
RIVET, 20
8JP-RA532-00-00
$2.82
6
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
7
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
8
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
9
SCREW, M5X0.8X12
8JP-RA241-00-00
$4.88
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 17
8JP-RA529-00-00
$0.54
12
PANEL, SUB FRAME 1
8KG-F1912-40-00
$207.99
13
RIVET, 5
8JP-RA514-10-00
$0.70
14
REINEFORCEMENT, FR
8JW-F1923-00-00
Unavailable
15
BRACKET
8JP-F1919-00-00
$32.99
16
RIVET, 12
8JP-RA521-00-00
Unavailable
17
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
18
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
19
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
20
REINFORCEMENT, FRA
8MT-F192E-00-00
Unavailable
21
REINFORCEMENT, FRA
8MT-F1929-00-00
Unavailable
22
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
23
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
24
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
25
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
26
REINFORCEMENT SUB
8JW-F1996-40-00
Unavailable
27
REINFORCEMENT SUB FRAME FR 1
8JW-F1995-40-00
Unavailable
28
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
29
PROTECTOR, CHAIN
8MT-F2147-00-00
Unavailable
30
RIVET, 17
8LJ-RA529-00-00
Unavailable
31
PROTECTOR, DISK BR
8MT-F5717-00-00
Unavailable
32
PROTECTOR, DISK BR
8JW-F5718-40-00
Unavailable
33
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
34
RIVET, 3/16
8JP-RA526-00-00
Unavailable
35
REINFORCEMENT, FOO
8JW-F1926-00-00
Unavailable
36
PROTECTER, WIRE HA
8MG-H2589-10-00
Unavailable
37
EXTENSION, WIRE HARNESS
8KT-H258A-00-00
Unavailable
38
RIVET, 3/16
8JP-RA527-00-00
Unavailable
39
GUSSET
8KG-F1135-00-00
Unavailable
40
GUSSET
8KG-F1134-00-00
Unavailable
41
GUSSET
8JW-F1137-00-00
Unavailable
42
GUSSET
8JW-F1136-00-00
Unavailable
43
LABEL 1
8JP-F151A-10-00
Unavailable
44
BRACKET, TAILLIGHT
8MT-F117E-00-00
Unavailable
45
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
46
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
47
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
48
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
49
PROTECTOR, FRAME A
8LN-F195A-00-00
Unavailable
50
RIVET, 1
8KC-RA510-00-00
Unavailable
51
RIVET, 14
8JP-RA523-00-00
Unavailable
52
TOOL KIT
8JP-F8100-00-00
Unavailable
53
GRAPHIC 2
8MN-F199B-00-00
Unavailable
54
GRAPHIC 1
8MN-F199A-00-00
Unavailable
