Description

Price

1

SECONDARY FIXED SHEAVE COMP.

8KC-17660-00-00

$302.99

2

ROLLER, SHIFT LEVER

8KC-18178-01-00

$66.99

3

PIN, DOWEL (716)

93608-25148-00

$2.60

4

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

5

SECONDARY SLIDING SHEAVE

8KC-17670-00-00

$304.99

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

7

BOLT, STUD

95612-08635-00

$3.50

8

NUT(8BN)

90179-08655-00

$10.49

9

SEAT SPRING SET

8MA-17604-10-00

Unavailable

10

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

11

SPRING, TORSION

90508-60012-00

$49.99

12

WASHER, 25X36X1

8KC-RA446-00-00

$0.96

12

WASHER, 25X36X2

8KC-RA447-00-00

$0.96

13

COLLAR, 2

8KC-RA714-00-00

$8.49

14

WASHER, 10.5X33X4

8KC-RA442-00-00

$1.75

15

BOLT, FLG. M10X1.2

8JP-RA1A6-00-00

Unavailable

16

WASHER, 28X40X1

8JP-RA448-00-00

Unavailable

16

WASHER, 28X40X2

8JP-RA449-00-00

Unavailable

17

SECONDARY SHAFT CO

8JP-E7680-20-00

Unavailable

18

SHAFT, SECONDARY

8JP-E7681-30-00

Unavailable

19

HOUSING, BEARING

8JP-G7631-10-00

Unavailable

20

BEARING, 6206

8JP-RAG07-00-00

Unavailable

21

CIRCLIP, 1

8JP-RAH03-00-00

Unavailable

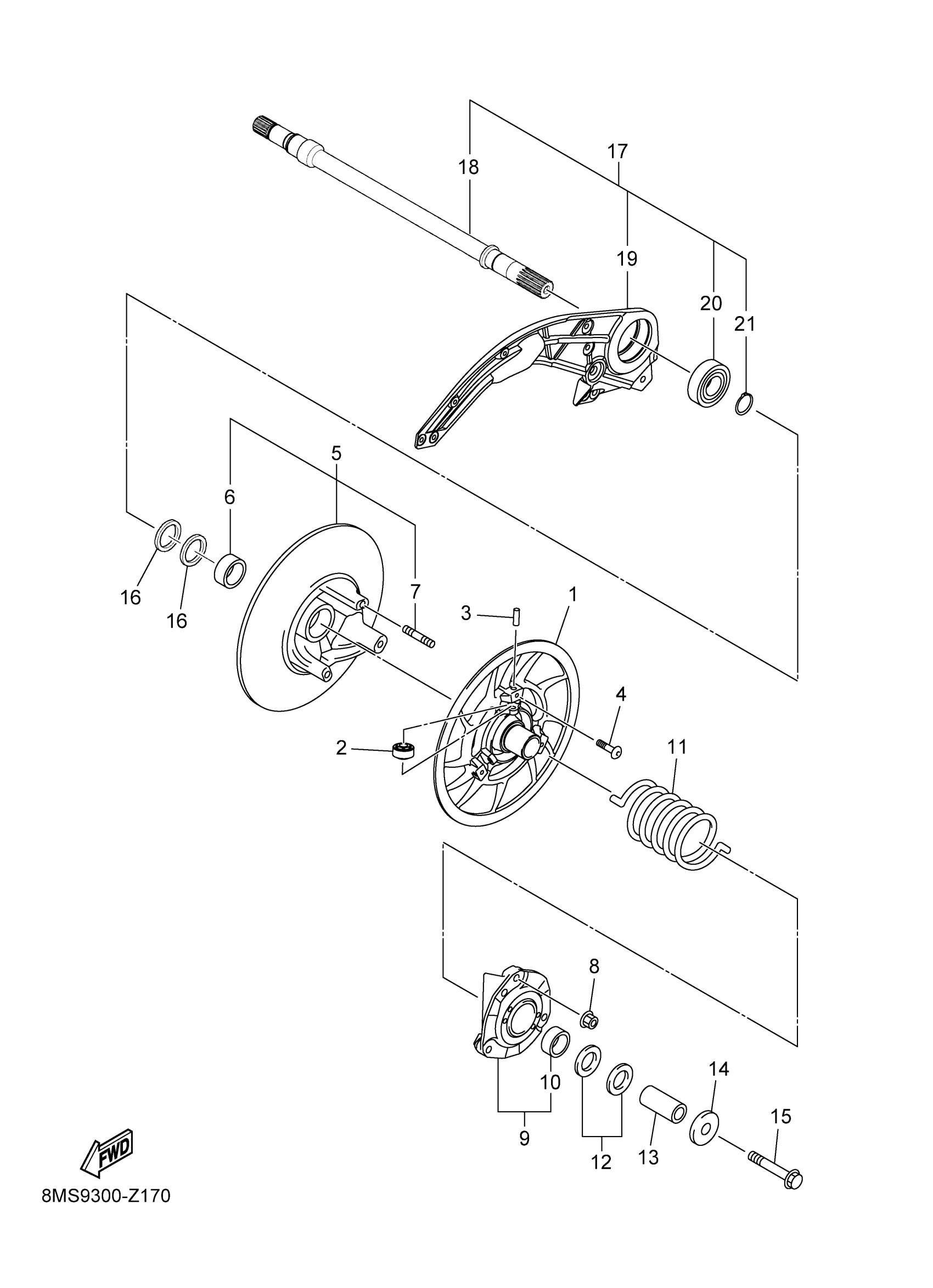

Yamaha SW1NLSSB (SIDEWINDER LTX SE) 8MA9 2025 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

ROLLER, SHIFT LEVER

PIN, DOWEL (716)

BOLT,HEX. SOCKET BUTTON

SECONDARY SLIDING SHEAVE

BUSH, BIMETAL FORMED(8BN)

BOLT, STUD

NUT(8BN)

SEAT SPRING SET

BUSH, BIMETAL FORMED(8BN)

SPRING, TORSION

WASHER, 25X36X1

WASHER, 25X36X2

COLLAR, 2

WASHER, 10.5X33X4

BOLT, FLG. M10X1.2

WASHER, 28X40X1

WASHER, 28X40X2

SECONDARY SHAFT CO

SHAFT, SECONDARY

HOUSING, BEARING

BEARING, 6206

CIRCLIP, 1
