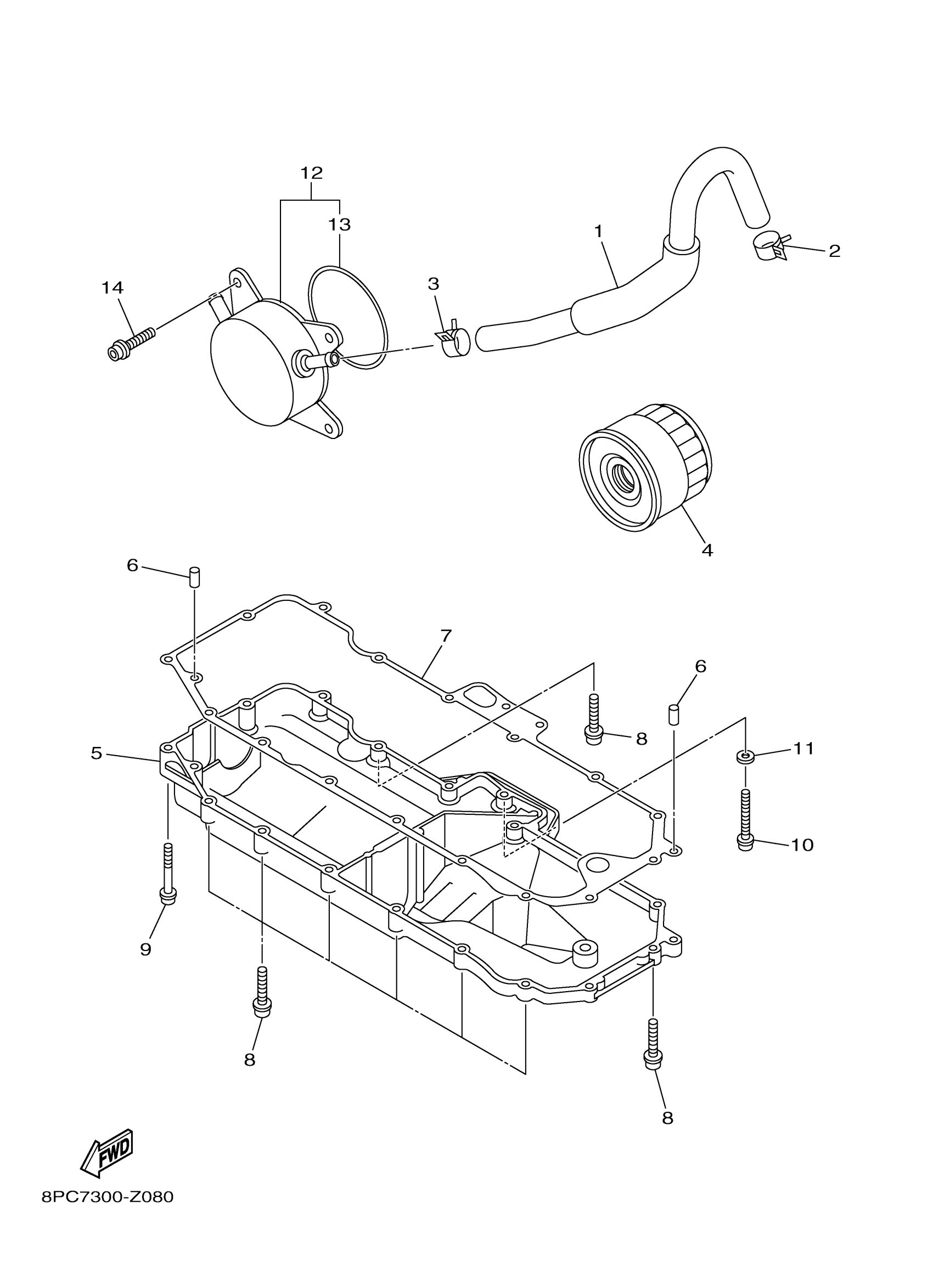

Yamaha SW1NLSSB (SIDEWINDER LTX SE) 8MA9 2025 OIL CLEANER Diagram

#

Description
Price

1

HOSE 5

8KJ-12588-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-18M09-00

$9.82

3

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

4

ELEMENT ASSY, OIL CLEANER

5DM-13440-00-00

$19.19

5

COVER, STRAINER

2HC-13417-00-00

$150.35

6

PIN, DOWEL

99530-08012-00

$4.89

7

GASKET, STRAINER C

2HC-13414-00-00

$16.30

8

BOLT,SOCKET

91317-06025-00

$1.91

9

BOLT,SOCKET

91317-06035-00

$3.27

10

BOLT

90109-06031-00

$1.80

11

GASKET (4V2)

90430-06166-00

$3.22

12

OIL COOLER ASSY

8KJ-13470-00-00

Unavailable

13

O-RING

2HC-13473-00-00

$6.20

14

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15
