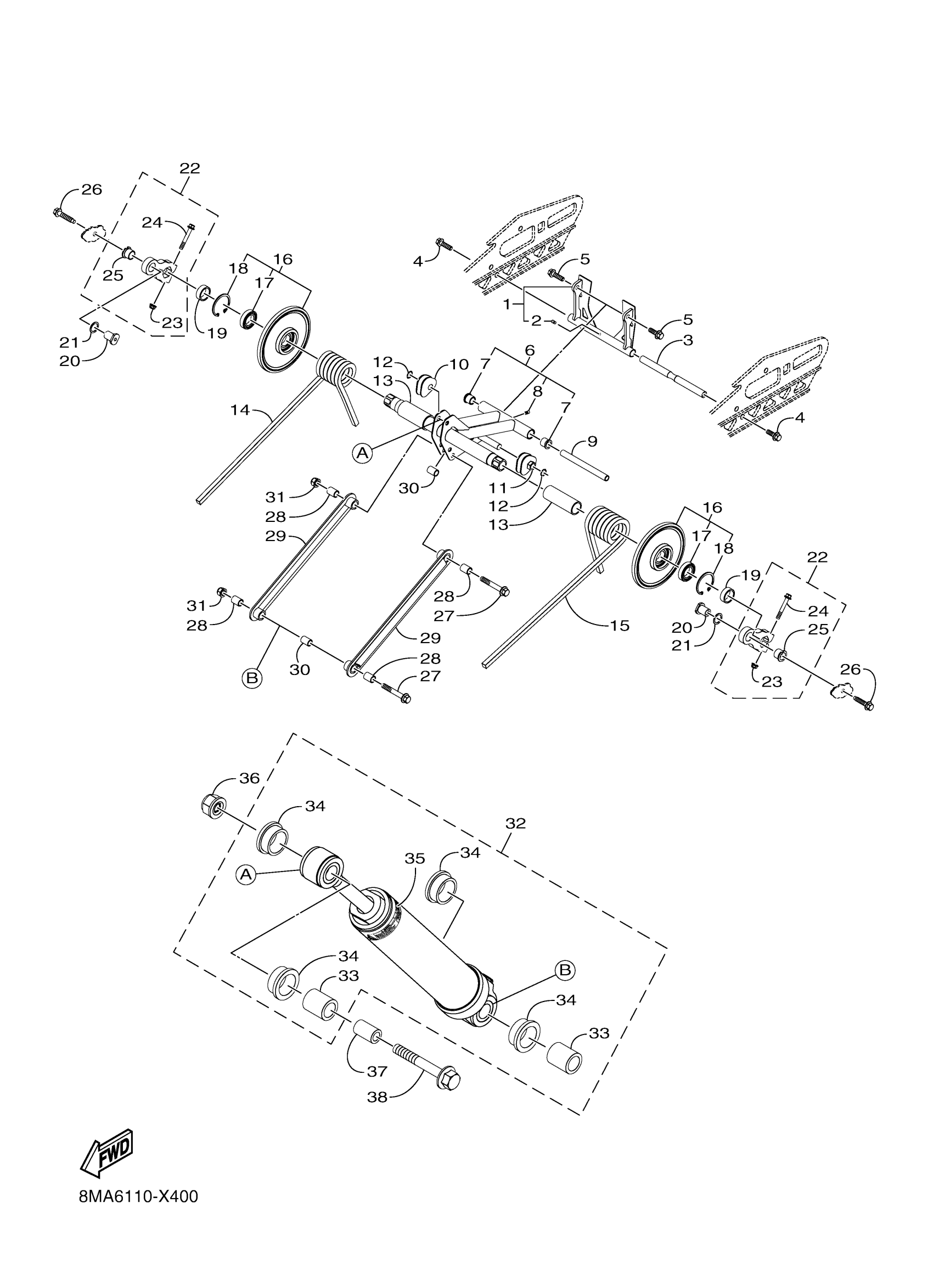

Yamaha SW1NLSRL (SIDEWINDER LTX SE) 8MA8 2024 TRACK SUSPENSION 4 Diagram

#

Description
Price

1

BRACKET 3

8JP-G7417-00-00

$82.99

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

SHAFT 6

8JP-G7488-10-00

Unavailable

4

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

5

BOLT, FLG. M10X1.2

8JP-RA1A1-00-00

$3.88

6

ARM, PIVOT 2

8JP-G7332-00-00

$177.99

7

BUSH, 0.628

8JP-RA808-00-00

$9.49

8

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

9

SHAFT 5

8JP-G7487-00-00

$25.99

10

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

11

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

12

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

$0.85

13

PROTECTOR

8JP-G7445-00-00

$4.24

14

SPRING, REAR 2

8JX-G7474-00-00

Unavailable

15

SPRING, REAR 1

8JX-G7473-00-00

Unavailable

16

WHEEL, SUSPENSION

8JP-G7312-00-00

Unavailable

17

BEARING, 2

8JP-RAG03-00-00

Unavailable

18

CIRCLIP, 2

8JP-RAH04-00-00

Unavailable

19

COLLAR, 12.81

8JP-RA727-00-00

Unavailable

20

NUT

8JP-G7368-00-00

Unavailable

21

WASHER, 0.035

8JP-RA436-00-00

Unavailable

22

ARM, REAR PIVOT 1

8LJ-G7361-00-00

Unavailable

23

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

24

BOLT, FLG. M8X1.25

8JP-RA191-00-00

Unavailable

25

BUSH, 12FDU12

8JP-RA813-00-00

Unavailable

26

BOLT, FLANGE

8ND-RA112-00-00

Unavailable

27

BOLT, FLG

8JP-RA1B4-00-00

Unavailable

28

COLLAR, 19

8JP-RA735-00-00

Unavailable

29

ROD, RELAY

8JX-G7494-00-00

Unavailable

30

COLLAR, 12

8JP-RA724-00-00

Unavailable

31

LOCK NUT

8JP-RA378-01-00

Unavailable

32

SHOCK ABSORBER

8JY-G7480-01-00

Unavailable

33

COLLAR, 14.5

8JP-RA728-00-00

Unavailable

34

BUSH, 3

8JP-RA804-00-00

Unavailable

35

. LABEL, WARNING

8JP-F2259-70-00

Unavailable

36

LOCK NUT

8JP-RA378-01-00

Unavailable

37

COLLAR, 12

8JP-RA724-00-00

Unavailable

38

BOLT, FLG. M10X1.2

8JP-RA1A2-10-00

Unavailable
