- SW1NLSRL (SIDEWINDER LTX SE) 8MA8 2024
PRIMARY SHEAVE

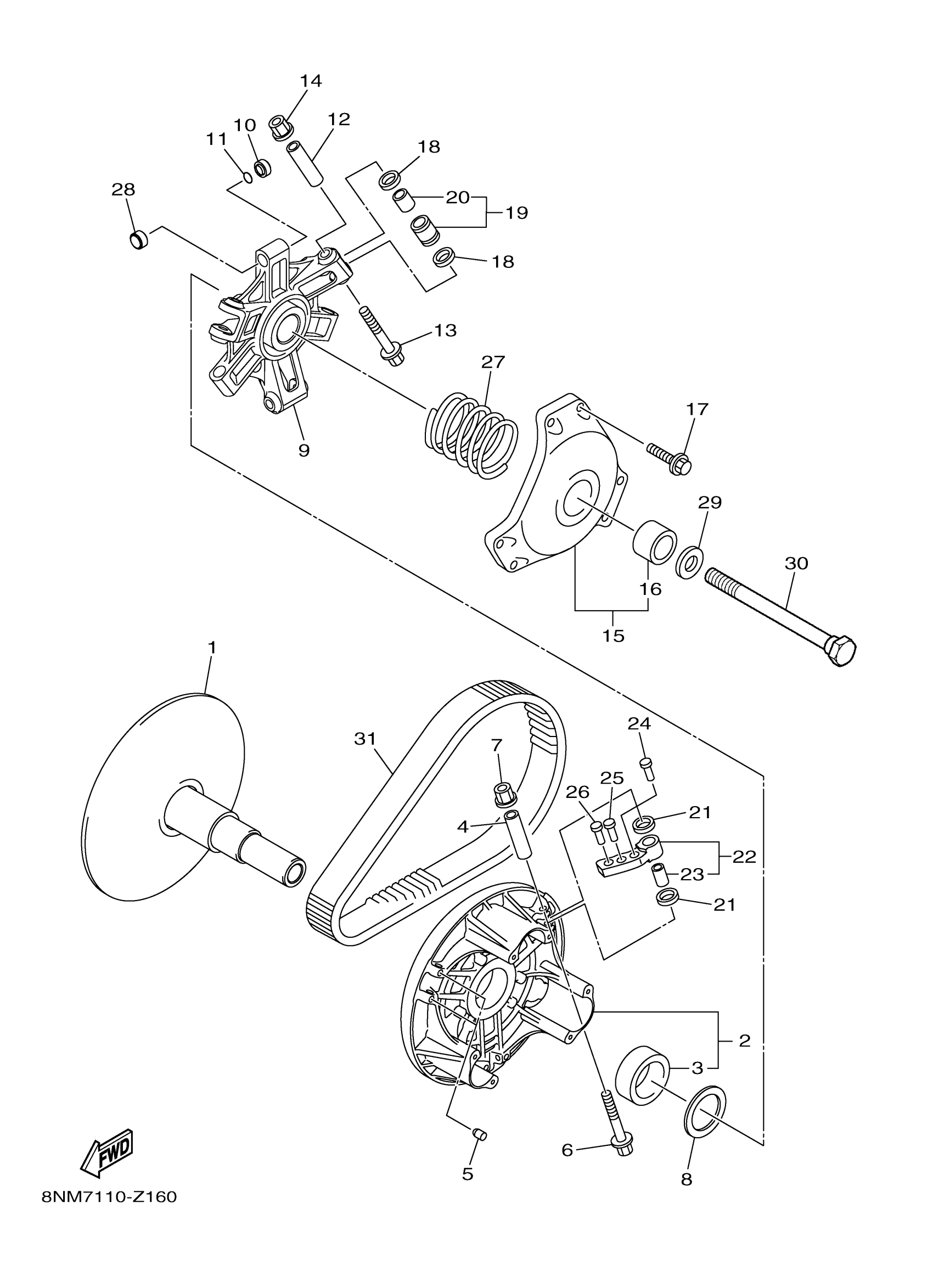

Yamaha SW1NLSRL (SIDEWINDER LTX SE) 8MA8 2024 PRIMARY SHEAVE Diagram
#
1
PRIMARY FIXED SHEAVE COMP.
8KC-17610-00-00
$368.99
2
PRIMARY SLIDING SHEAVE COMP.
8KC-17620-00-00
$252.99
3
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
4
COLLAR
90387-05060-00
$16.99
5
BOLT, SET
90113-05041-00
$8.49
6
BOLT, FLANGE
90105-05030-00
$1.11
7
NUT, S/L FLANGE
95607-05200-00
$9.49
8
WASHER, PLATE
90201-33016-00
Unavailable
9
SPIDER
8KC-17627-00-00
Unavailable
10
SLIDER
8KC-17653-00-00
$17.99
11
O-RING (214)
93210-07100-00
$7.49
12
COLLAR
90387-05059-00
$16.99
13
BOLT, FLANGE
90105-05030-00
$1.11
14
NUT, S/L FLANGE
95607-05200-00
$9.49
15
PRIMARY SHEAVE CAP COMP.
8DF-17630-00-00
$186.99
16
BUSH, SOLID(8CP)
90380-28237-00
Unavailable
17
BOLT, FLANGE
95812-06030-00
Unavailable
18
WASHER, PLATE
90202-09002-00
Unavailable
19
ROLLER, COMP
8FG-17624-00-00
Unavailable
20
BUSH
90386-09001-00
Unavailable
21
WASHER, PLATE
90202-08005-00
Unavailable
22
WEIGHT COMP
8LR-17605-00-00
Unavailable
23
BUSH
90386-08002-00
Unavailable
24
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
25
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
26
RIVET (AL13.3)
90266-06001-00
Unavailable
27
SPRING, COMPRESSION
90501-570A1-00
Unavailable
28
SLIDER
8KC-17653-10-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
30
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
31
V-BELT
8JP-17641-00-00
Unavailable
