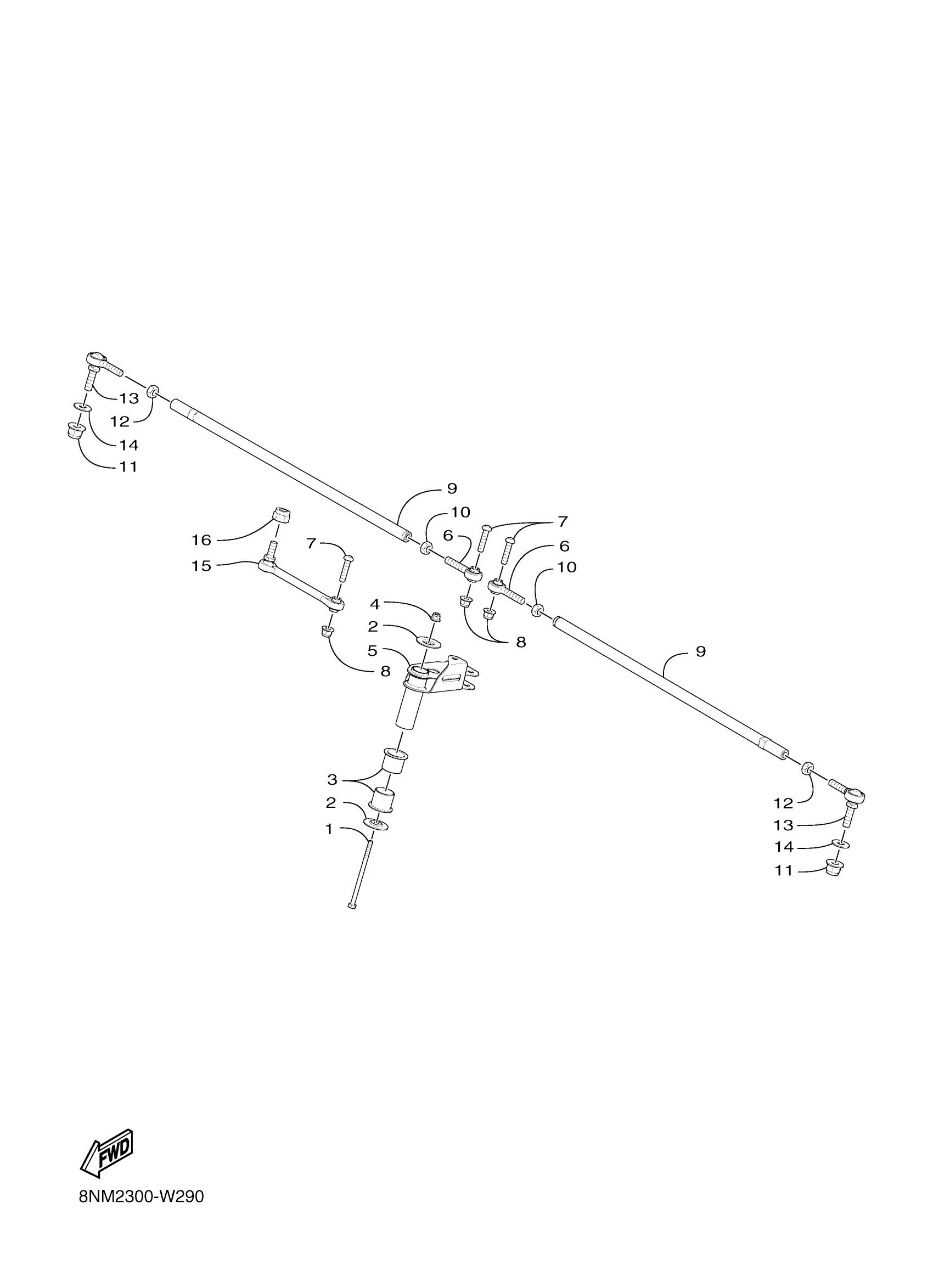

Yamaha SW1NLSNL (SIDEWINDER L TX SE) 8MA6 2022 STEERING 3 Diagram

BOLT, HEX. M6X1X10

8JP-RA1B0-00-00

Unavailable

WASHER, 1

8JP-RA432-00-00

Unavailable

BUSH, 7

8JP-RA816-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

ARM, PIVOT

8JP-F389G-00-00

Unavailable

JOINT, UNIVERSAL 2

8JP-F3845-00-00

Unavailable

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

ROD, TIE

8JP-F3831-00-00

Unavailable

NUT, HEX. M10X1.25

8JP-RA369-00-00

$0.96

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

NUT, HEX. M10-1.25

8JP-RA368-00-00

Unavailable

JOINT, UNIVERSAL 3

8JP-F3847-00-00

$67.99

WASHER, PLANE M10X

8JP-RA454-00-00

$1.16

ROD, STEERING RELA

8JP-F3821-00-00

Unavailable

NUT, HEX. LOCKING

8JP-RA371-00-00

Unavailable
