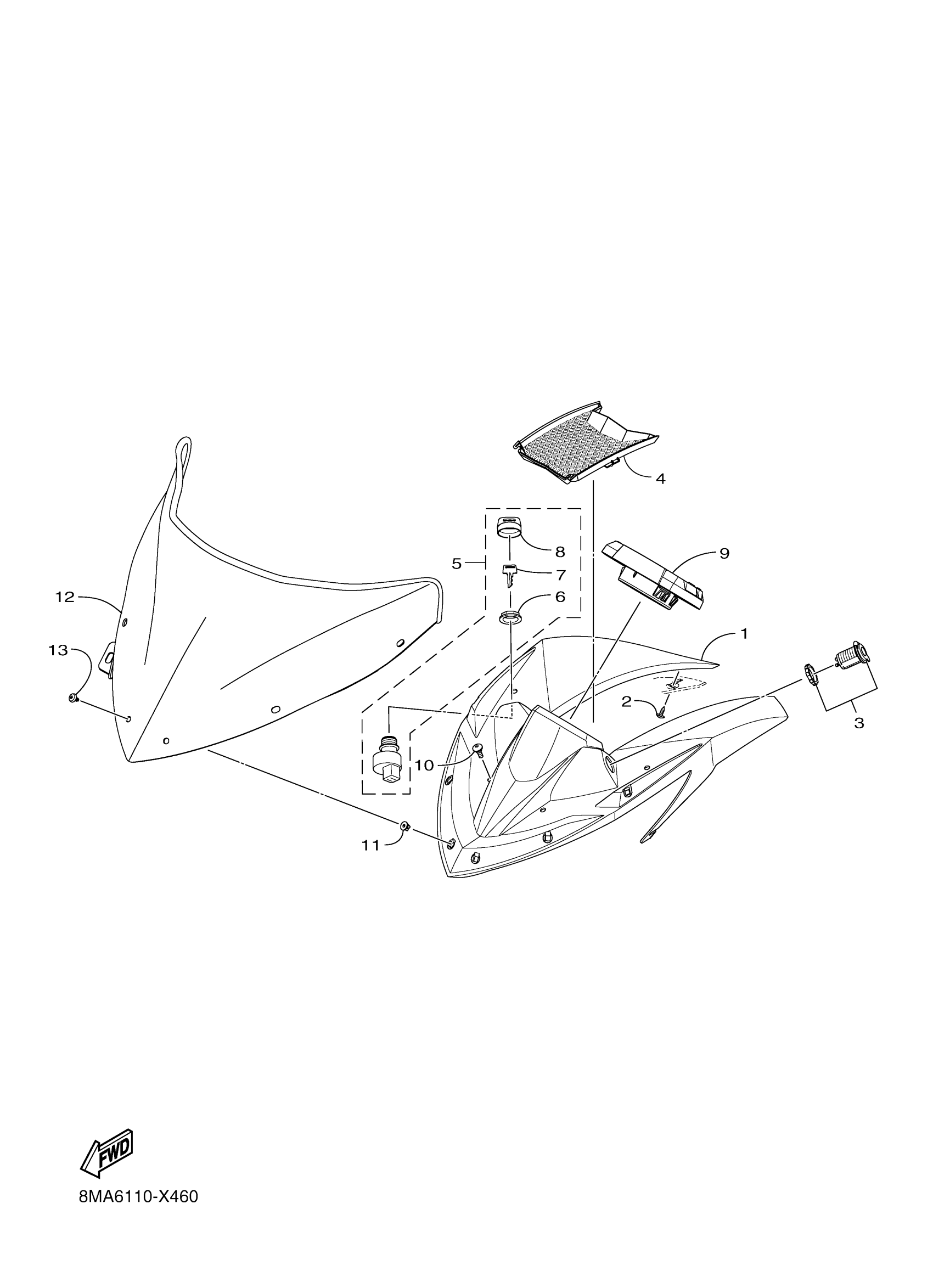

Yamaha SW1NLSNL (SIDEWINDER L TX SE) 8MA6 2022 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8LY-K7712-70-00

$348.99

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

3

TERMINAL COMP.

8JP-H254B-10-00

$44.99

4

LOUVER 1

8KC-K7131-00-00

Unavailable

5

MAIN SWITCH ASSY

8JP-H2510-00-00

$53.99

6

. NUT, MAIN SWITCH

8JP-H2569-00-00

Unavailable

7

KEY (Y SERIESE, LE

8JP-H2511-00-00

$8.49

7

KEY (Z SERIES, RIG

8JP-H2511-10-00

$7.49

8

CAP, KEY

8JP-H2577-01-00

$18.99

9

SPEEDOMETER ASSY

8JR-H3501-30-00

$537.99

10

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

11

NUT, INSERT

8JP-RA373-00-00

$1.43

12

WINDSHIELD COMP.

8MR-K7210-60-00

$210.99

13

SCREW, TAPPING M6X

8JP-RA280-10-00

$1.86
