- SW1NLSNL (SIDEWINDER L TX SE) 8MA6 2022
FRONT SUSPENSION

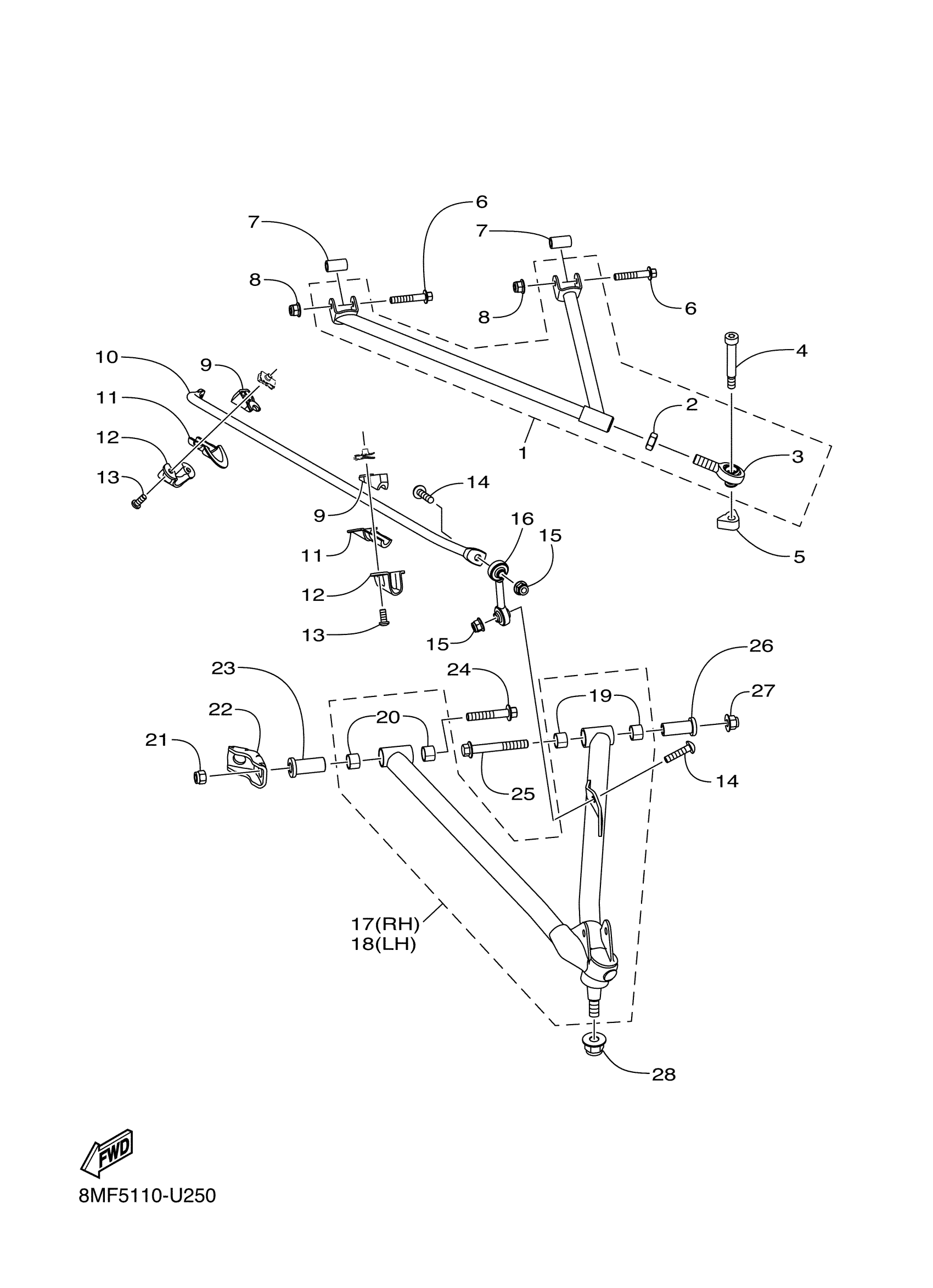

Yamaha SW1NLSNL (SIDEWINDER L TX SE) 8MA6 2022 FRONT SUSPENSION Diagram
#
Description
Price
1
ARM, FRONT UPPER
8NN-F354A-70-00
Unavailable
2
NUT
8KU-F3778-00-00
$1.59
3
JOINT, UNIVERSAL 1
8KU-F3841-00-00
$41.99
4
BOLT
8KU-F3767-00-00
$3.50
5
NUT
8KU-F3856-00-00
$3.88
6
BOLT,FLG. M8X1.25X45
8KG-RA190-00-00
Unavailable
7
COLLAR 8
8KG-RA720-00-00
$9.49
8
NUT,SELF-LOCKING M8-1.25
8KG-RA301-00-00
Unavailable
9
HOLDER 2
8JP-F3867-00-00
$7.49
10
BAR, STABILIZER FR
8JP-F386E-00-00
$136.99
11
BUSH, STABILIZER F
8JP-F386G-00-00
$7.49
12
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
13
SCREW, 1
8JP-RA235-00-00
Unavailable
14
SCREW, 1
8JP-RA235-10-00
$2.55
15
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
16
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
17
ARM,FR. LWR. RH.
8JP-F358A-80-00
Unavailable
18
ARM,FR. LWR. LH.
8JP-F357A-80-00
Unavailable
19
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
20
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
21
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
22
ARM, 1
8JP-F3543-00-00
Unavailable
23
COLLAR, 9
8JP-RA721-10-00
Unavailable
24
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
25
BOLT, FLG. M10-1.2
8JP-RA194-20-00
Unavailable
26
COLLAR, 7
8JP-RA719-00-00
Unavailable
27
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
28
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
