Description

Price

1

SECONDARY SHAFT CO

8JP-E7680-20-00

Unavailable

2

SHAFT, SECONDARY

8JP-E7681-30-00

$165.99

3

HOUSING, BEARING

8JP-G7631-10-00

$279.99

4

BEARING, 6206

8JP-RAG07-00-00

$42.99

5

CIRCLIP, 1

8JP-RAH03-00-00

$0.96

6

WASHER, 28X40X1

8JP-RA448-00-00

$1.43

6

WASHER, 28X40X2

8JP-RA449-00-00

$1.86

7

SECONDARY FIXED SHEAVE COMP.

8KC-17660-00-00

$302.99

8

ROLLER, SHIFT LEVER

8KC-18178-01-00

$66.99

9

PIN, DOWEL (716)

93608-25148-00

$2.60

10

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

11

SECONDARY SLIDING SHEAVE

8KC-17670-00-00

$304.99

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

13

BOLT, STUD

95612-08635-00

$3.50

14

NUT(8BN)

90179-08655-00

$10.49

15

SEAT SPRING SET

8MA-17604-10-00

Unavailable

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

17

SPRING, TORSION

90508-60012-00

Unavailable

18

WASHER, 25X36X1

8KC-RA446-00-00

Unavailable

18

WASHER, 25X36X2

8KC-RA447-00-00

Unavailable

19

COLLAR, 2

8KC-RA714-00-00

Unavailable

20

WASHER, 10.5X33X4

8KC-RA442-00-00

Unavailable

21

BOLT, FLG. M10X1.2

8JP-RA1A6-00-00

Unavailable

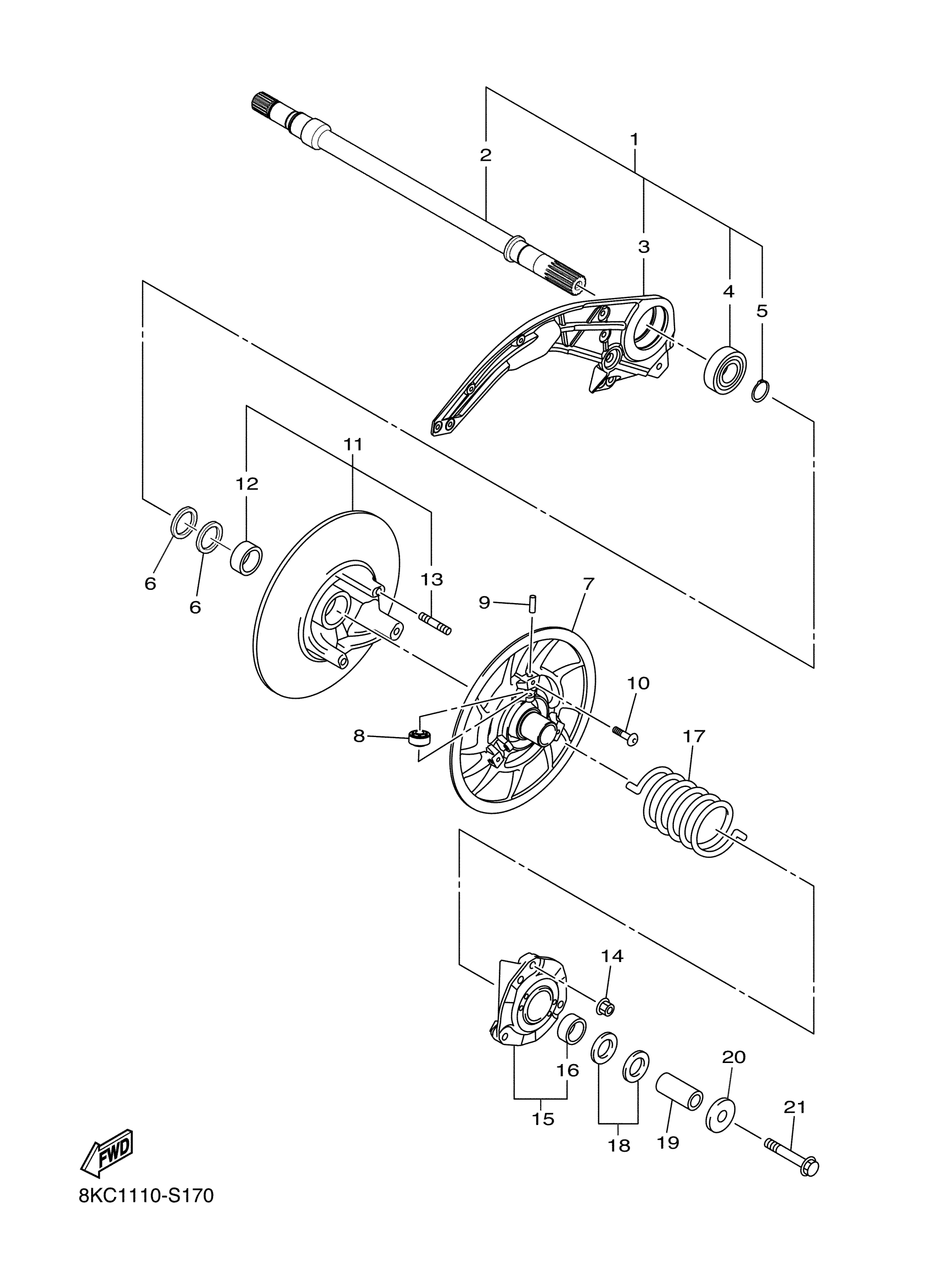

Yamaha SW1NLSMS (SIDEWINDER L TX SE) 8MA5 2021 SECONDARY SHEAVE Diagram

SECONDARY SHAFT CO

SHAFT, SECONDARY

HOUSING, BEARING

BEARING, 6206

CIRCLIP, 1

WASHER, 28X40X1

WASHER, 28X40X2

SECONDARY FIXED SHEAVE COMP.

ROLLER, SHIFT LEVER

PIN, DOWEL (716)

BOLT,HEX. SOCKET BUTTON

SECONDARY SLIDING SHEAVE

BUSH, BIMETAL FORMED(8BN)

BOLT, STUD

NUT(8BN)

SEAT SPRING SET

BUSH, BIMETAL FORMED(8BN)

SPRING, TORSION

WASHER, 25X36X1

WASHER, 25X36X2

COLLAR, 2

WASHER, 10.5X33X4

BOLT, FLG. M10X1.2
