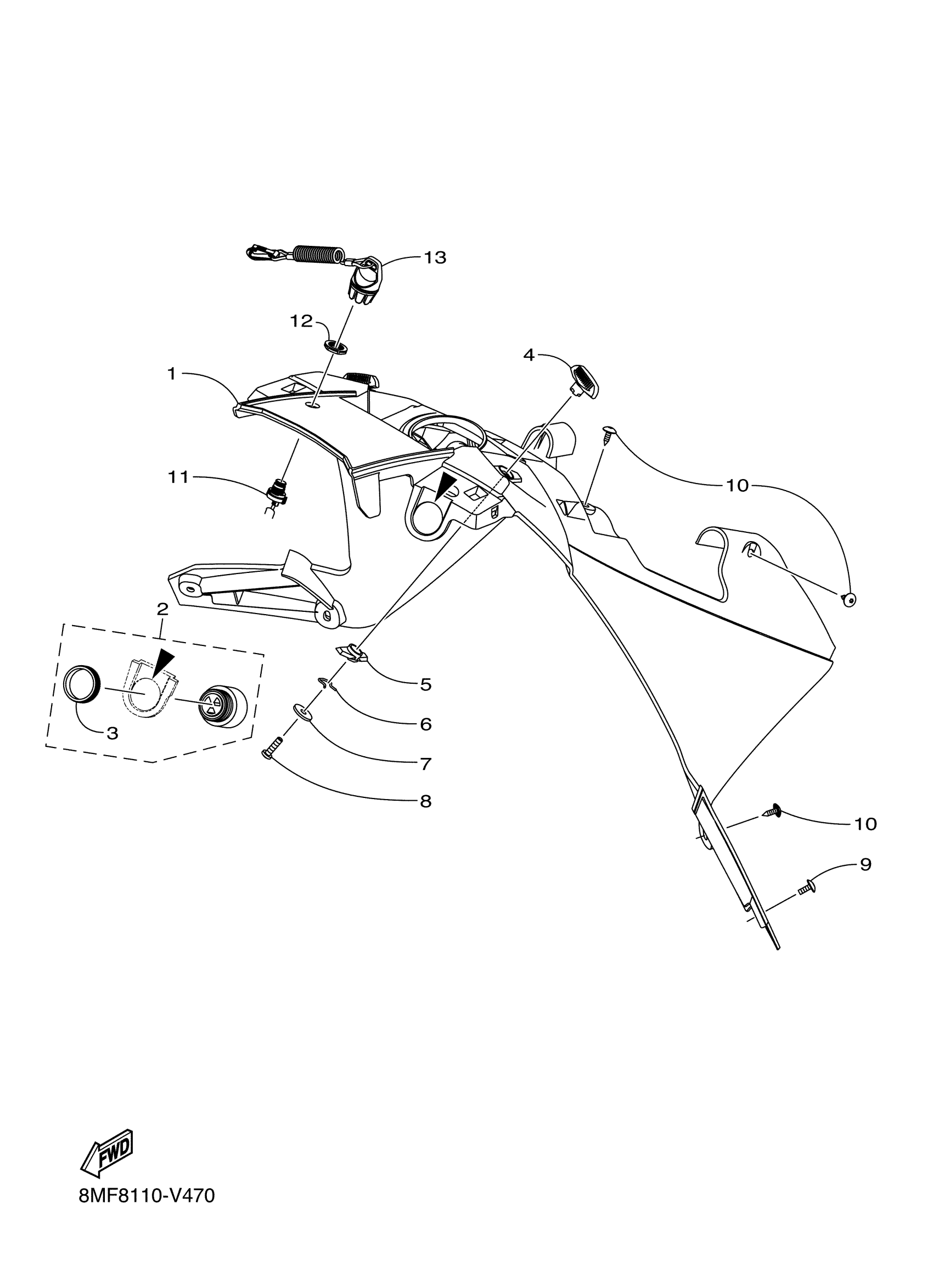

Yamaha SW1NLSMS (SIDEWINDER L TX SE) 8MA5 2021 INSTRUMENT PANEL 2 Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8MS-K7711-50-00

Unavailable

2

ALARM UNIT

8JP-H2564-00-00

$97.99

3

RING, RETAINING

8JP-H4395-00-00

$15.99

4

KNOB

8KC-K7324-00-00

$1.86

5

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

6

CLIP, 6

8JP-RAC15-00-00

$9.49

7

WASHER

8JP-RA429-00-00

$1.16

8

SCREW, 4

8KC-RA238-00-00

Unavailable

9

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86

10

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

11

STOP SWITCH

8MS-H6284-00-00

$69.99

12

RING, RETAINING

8MS-H4395-00-00

$2.12

13

CAP, SWITCH

8MS-H2552-00-00

$45.99
