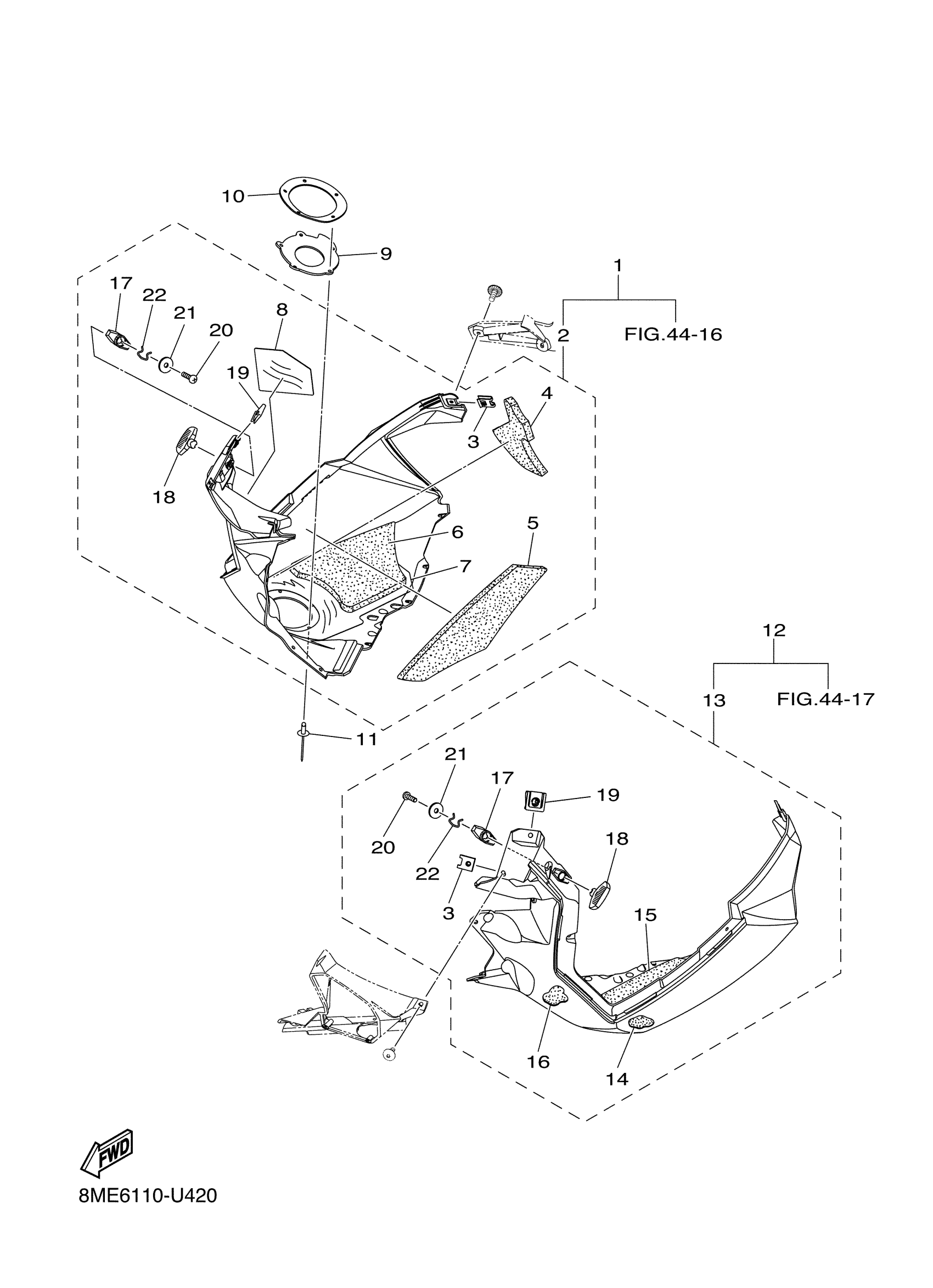

Yamaha SW1NLSKW (SIDEWINDER L TX SE) 8MA3 2019 HOOD Diagram

#

Description
Price

1

HOOD 2

8MA-F1983-00-00

Unavailable

2

SHELL SIDE PANEL A

8KC-K8140-50-00

$167.99

3

NUT, CLIP 10

8JP-RA352-00-00

$1.64

4

DAMPER, NOISE 16

8KC-K7276-00-00

$25.99

5

DAMPER, NOISE 15

8KC-K7275-00-00

$15.99

6

DAMPER, NOISE 14

8KC-K7274-00-00

$26.99

7

PROTECTOR 6

8KC-K7556-01-00

$24.99

8

PROTECTOR 7

8KC-K7557-10-00

$3.88

9

SEAL, EXT. 1

8KC-G1138-00-00

$16.99

10

PLATE 1

8KC-K8181-00-00

$7.49

11

RIVET, 14

8JP-RA523-00-00

$1.22

12

HOOD 1

8MA-F1982-00-00

Unavailable

13

SHELL SIDE PANEL A

8KC-K8130-50-00

$155.99

14

DAMPER, NOISE 11

8KC-K7271-00-00

$18.99

15

DAMPER, NOISE 12

8KC-K7272-00-00

$16.99

16

DAMPER, NOISE 13

8KC-K7273-00-00

Unavailable

17

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

18

KNOB

8KC-K7324-00-00

Unavailable

19

NUT, CLIP 1/4

8JP-RA350-00-00

Unavailable

20

SCREW, 4

8KC-RA238-00-00

Unavailable

21

WASHER

8JP-RA429-00-00

Unavailable

22

CLIP, 6

8JP-RAC15-00-00

Unavailable
