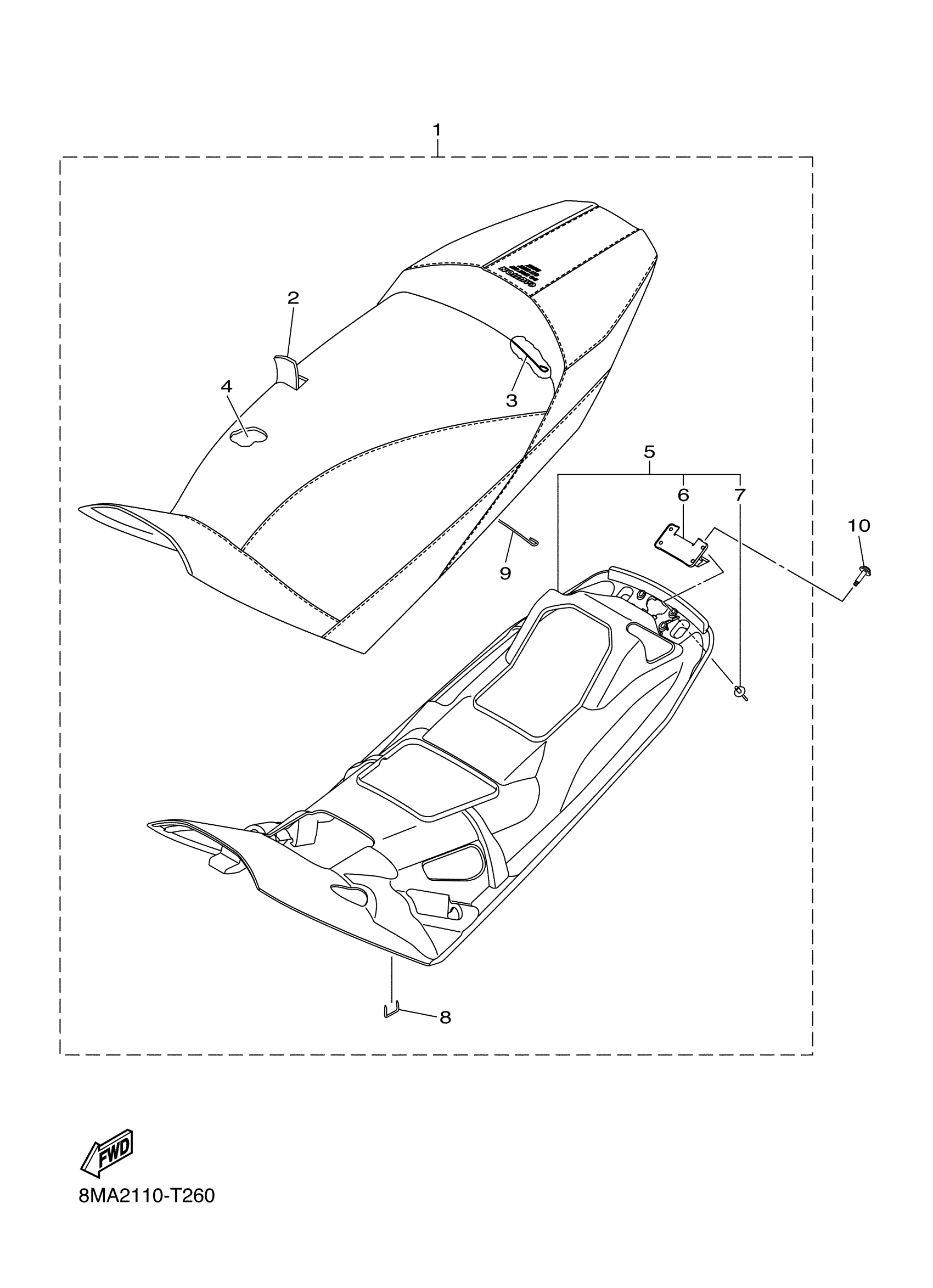

Yamaha SW1NLSJY (SIDEWINDER L TX SE) 8MA20 2018 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY (DEEP PURPLISH BLUE SOLID E)

8LX-F4710-00-00

$472.03

2

SEAT COVER COMP.

8LX-F470F-00-00

$329.17

3

WIRE

8JP-F473J-00-00

Unavailable

4

CUSHION

8JP-F4713-00-00

$137.38

5

BOTTOM PLATE COMP.

8KC-F470E-00-00

Unavailable

6

BRACKET, SEAT LEVE

8JP-F475H-00-00

Unavailable

7

RIVET, 14

8JP-RA523-00-00

$0.96

8

. STAPLE

8JM-F473U-00-00

Unavailable

9

. WIRE, 2

8JP-F1664-00-00

$1.77

10

SCREW, M6X18

8JP-RA270-00-00

$0.79
