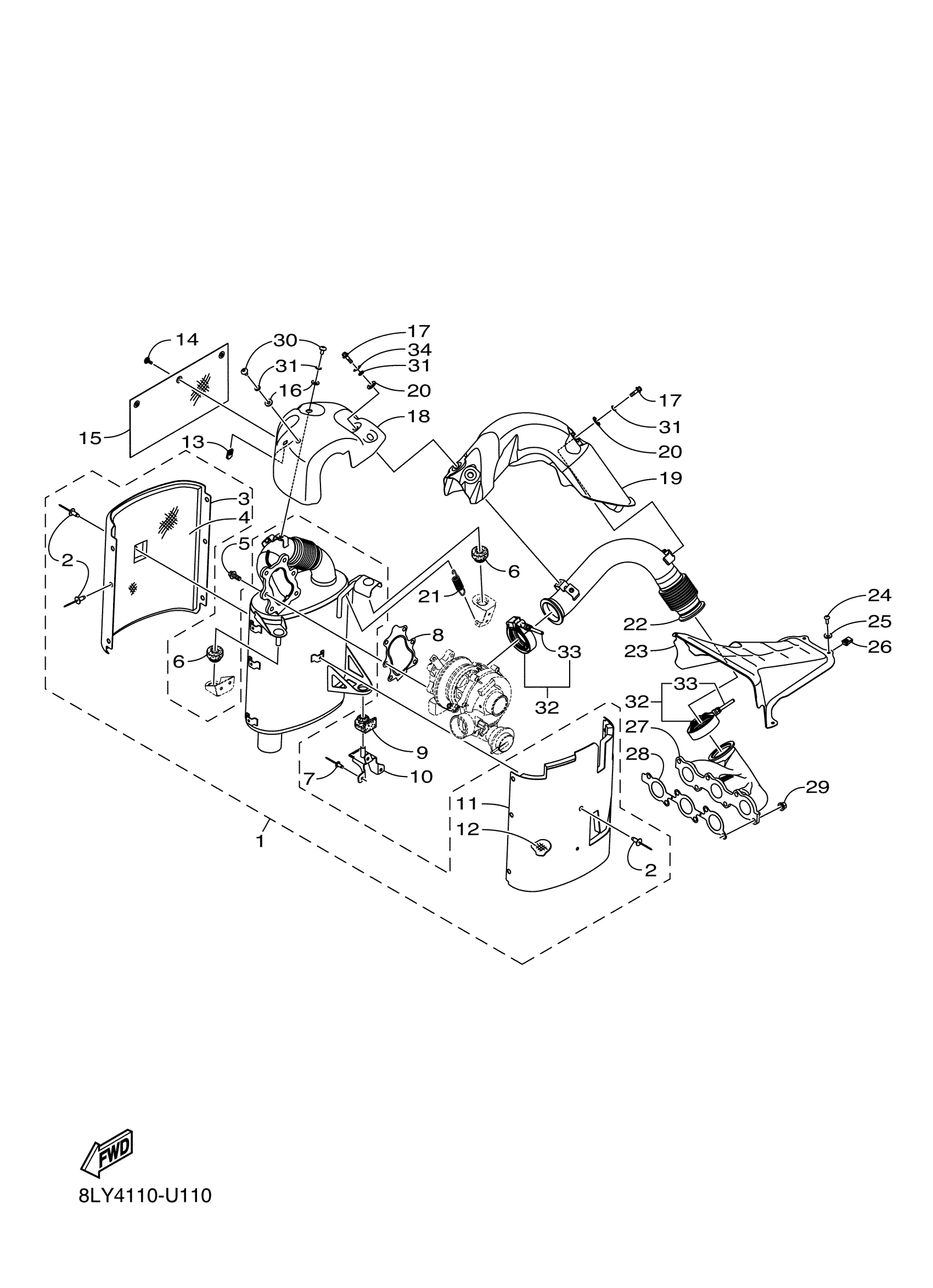

Yamaha SW1NLLPRL (SIDEWINDER LTX LE EPS) 8PD3 2024 EXHAUST Diagram
#
1
SILENCER ASSY
8KC-E4750-01-00
$597.99
2
RIVET, 1
8KC-RA510-00-00
$1.11
3
PROTECTOR, MUFFLER
8KC-E4728-00-00
Unavailable
4
MAT 2
8KC-E4736-00-00
Unavailable
5
BOLT, FLANGE 2
8KC-RA1B6-00-00
$13.99
6
GROMMET
8JP-E5357-00-00
$15.99
7
RIVET, 11
8JP-RA520-10-00
$0.43
8
GASKET, EXHAUST PI
8KC-E4623-00-00
$28.99
9
GROMMET
8JP-E5375-00-00
$9.49
10
BRACKET
8JP-E4744-00-00
Unavailable
11
PROTECTOR, MUFFLER
8KC-E4718-00-00
$126.99
12
MAT 1
8KC-E4733-00-00
$15.99
13
NUT, CLIP
8JP-RA349-00-00
$1.16
14
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
15
SHIELD, HEAT
8KC-F3892-00-00
Unavailable
16
WASHER 1
8KC-K7525-00-00
Unavailable
17
BOLT,FLG. M6X16
8KC-RA146-00-00
Unavailable
18
EXHAUST COVER ASS'
8KC-E4637-00-00
Unavailable
19
COVER, EXHAUST
8KJ-14624-01-00
Unavailable
20
WASHER,FLAT-1/4 X .734 X .063
8JM-RA400-00-00
Unavailable
21
SPRING, 3
8JP-RAD14-00-00
Unavailable
22
EXHAUST PIPE ASSY
8KC-E4610-00-00
Unavailable
23
COVER, EXHAUST
8KC-E4627-00-00
Unavailable
24
SCREW, 11
8JP-RA2A0-00-00
Unavailable
25
WASHER, 1/4X0.625X
8JP-RA441-00-00
Unavailable
26
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
27
MANIFOLD, EXT. 1
8KJ-41131-00-00
Unavailable
28
GASKET, EXHAUST PIPE
8KJ-14613-00-00
Unavailable
29
NUT
90179-09004-00
Unavailable
30
BOLT, BUTTON HEAD
8KC-RA1C0-00-00
Unavailable
31
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
32
BAND, MUFFLER
8KC-E4715-00-00
Unavailable
33
BOLT SET
8KC-E22C0-00-00
Unavailable
34
NUT, 1/4
8JP-RA347-00-00
Unavailable
