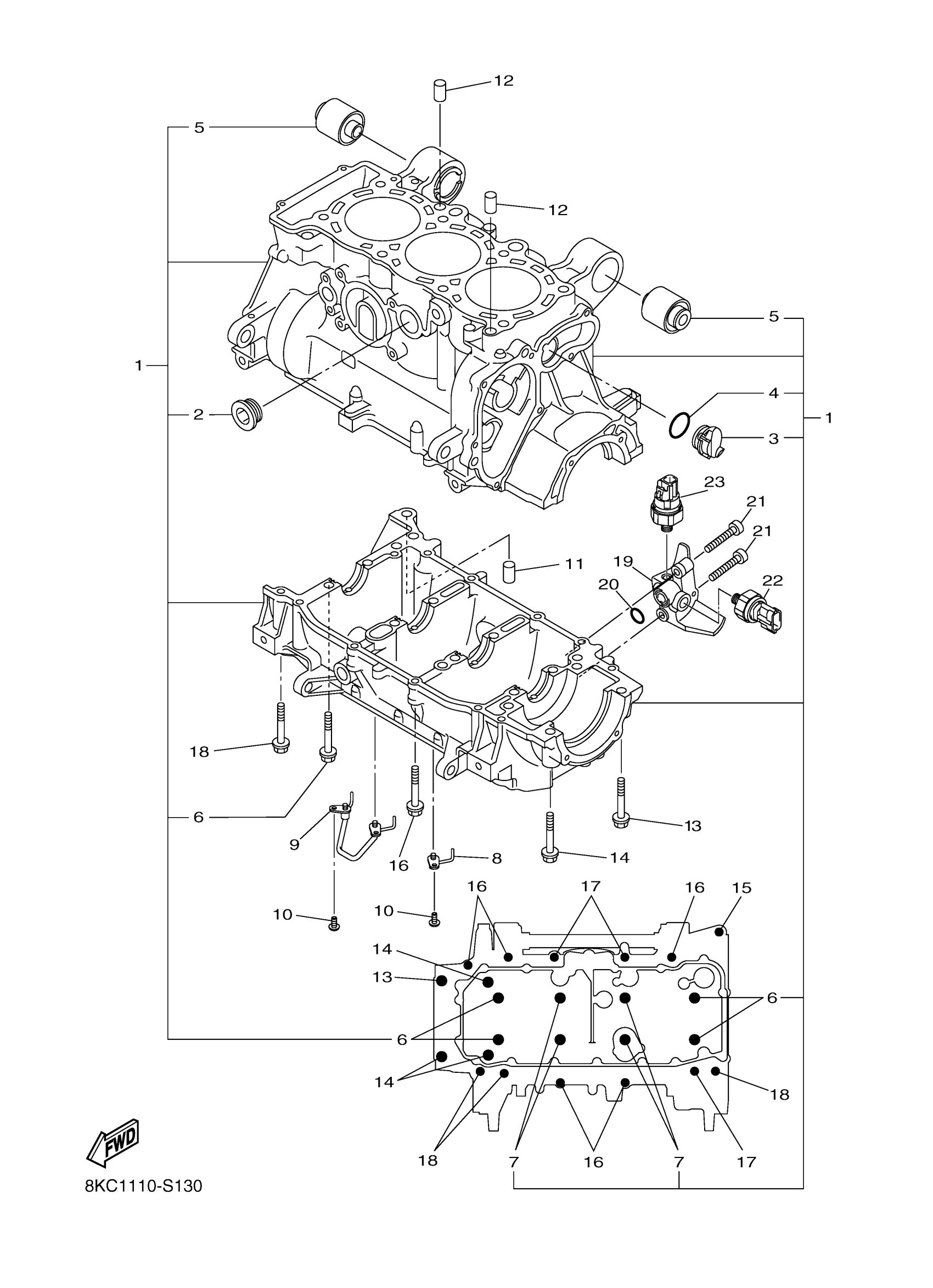

Yamaha SW1NLLPRL (SIDEWINDER LTX LE EPS) 8PD3 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8KJ-15109-08-00

Unavailable

2

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

3

PLUG, BLIND 1

8ES-15167-00-00

$11.99

4

O-RING(1HX)

93210-24709-00

$9.49

5

DAMPER

8FA-2139X-00-00

Unavailable

6

BOLT, WITH WASHER

90119-09004-00

$11.49

7

BOLT, WITH WASHER

90119-09011-00

$42.99

8

NOZZLE ASSY

8KJ-15105-00-00

Unavailable

9

NOZZLE ASSY., 2

8KJ-15154-00-00

Unavailable

10

SCREW

90149-05030-00

$8.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

BOLT, FLANGE

95817-08055-00

$4.21

14

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

15

BOLT

90109-06185-00

$8.49

16

BOLT, FLANGE

95812-06055-00

Unavailable

17

BOLT, FLANGE

95812-06080-00

Unavailable

18

BOLT, FLANGE

95817-06080-00

Unavailable

19

JOINT

8JH-15319-00-00

Unavailable

20

O-RING(36Y)

93210-13657-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

22

SENDER, OIL PRESSU

8GN-83651-01-00

Unavailable

23

OIL PRESSURE SWITCH

8FP-82504-01-00

Unavailable
