Description

Price

1

ARM, PIVOT 1

8LJ-G7331-10-00

Unavailable

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

DAMPER 1

8JP-G7456-00-00

$5.60

4

WASHER

8JP-G7359-00-00

Unavailable

5

RIVET, 12

8JP-RA521-00-00

$1.75

6

SHAFT 4

8JP-G7486-20-00

$63.99

7

WASHER, TOOTH M10

8JP-RA457-00-00

$0.43

8

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

9

BOLT, FLG. M10X1.2

8JP-RA1A0-00-00

Unavailable

10

BUSH, 4

8JP-RA805-00-00

$23.99

11

SHAFT 1

8JP-G7465-00-00

Unavailable

12

STOPPER

8ND-G6432-00-00

Unavailable

13

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.16

14

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.85

15

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

16

BOLT, FLG. M6X1.0X

8JP-RA181-00-00

Unavailable

17

DAMPER SUB ASY

8KP-F2201-10-00

Unavailable

18

LABEL 6

8KP-F151J-00-00

Unavailable

19

SPRING 3

8KP-G7427-00-00

Unavailable

20

ADJUSTER

8KP-F331K-00-00

Unavailable

21

SPRING

8KP-G7336-00-00

Unavailable

22

LOCK NUT

8JP-RA378-01-00

Unavailable

23

COLLAR, 22.4

8JP-RA730-00-00

Unavailable

24

COLLAR, 14

8JP-RA726-10-00

Unavailable

25

BOLT, FLG. M10X1.2

8JP-RA1A2-10-00

Unavailable

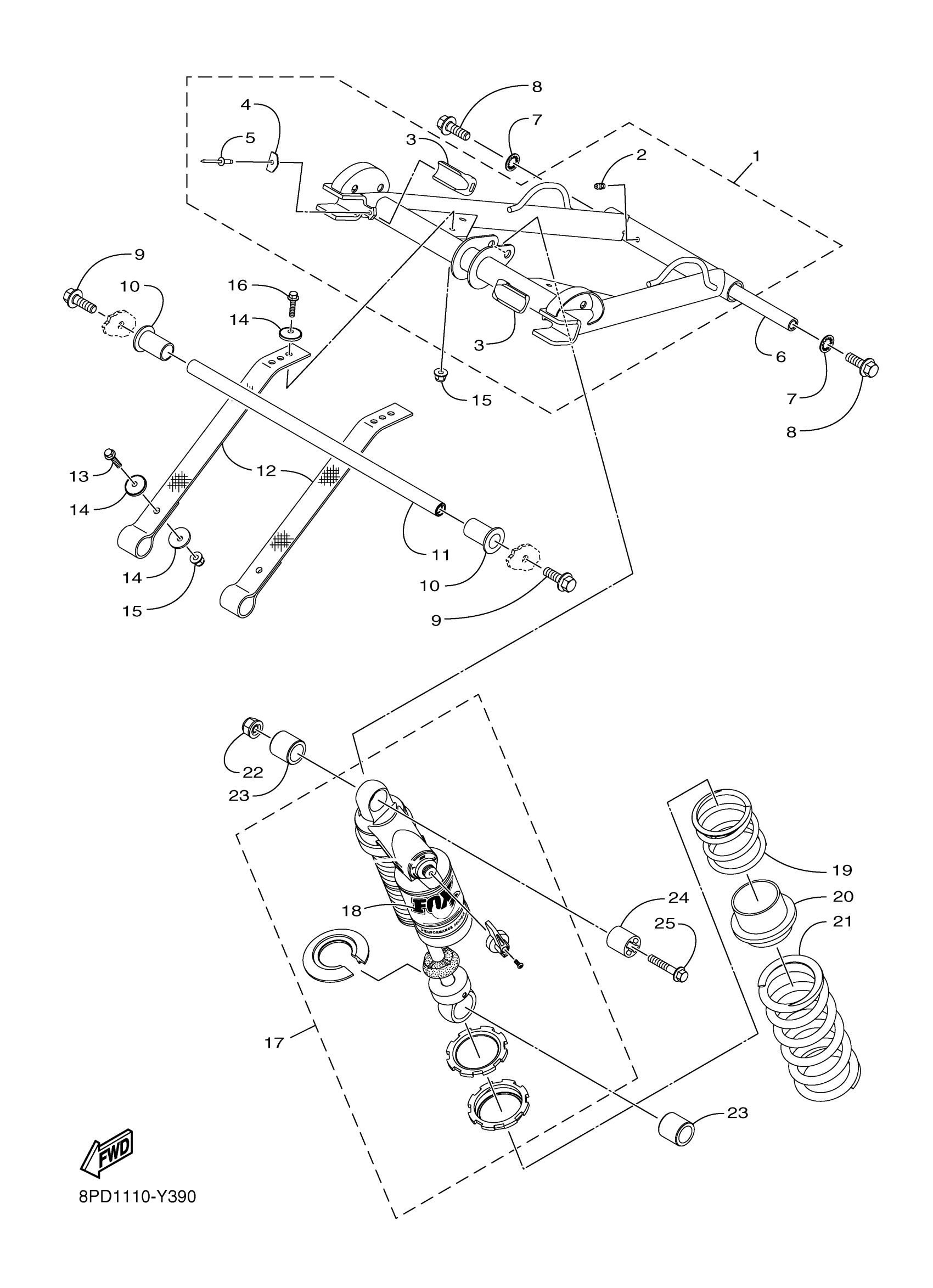

Yamaha SW1NLLPPL (SIDEWINDER LTX LE EPS) 8PD1 2023 TRACK SUSPENSION 3 Diagram

ARM, PIVOT 1

NIPPLE, GREASE 1

DAMPER 1

WASHER

RIVET, 12

SHAFT 4

WASHER, TOOTH M10

BOLT, FLG. M10X1.2

BOLT, FLG. M10X1.2

BUSH, 4

SHAFT 1

STOPPER

BOLT, FLG. M6X1.0X

WASHER, 6.87X25.4X

NUT,FLG. M6-1.0

BOLT, FLG. M6X1.0X

DAMPER SUB ASY

LABEL 6

SPRING 3

ADJUSTER

SPRING

LOCK NUT

COLLAR, 22.4

COLLAR, 14

BOLT, FLG. M10X1.2
