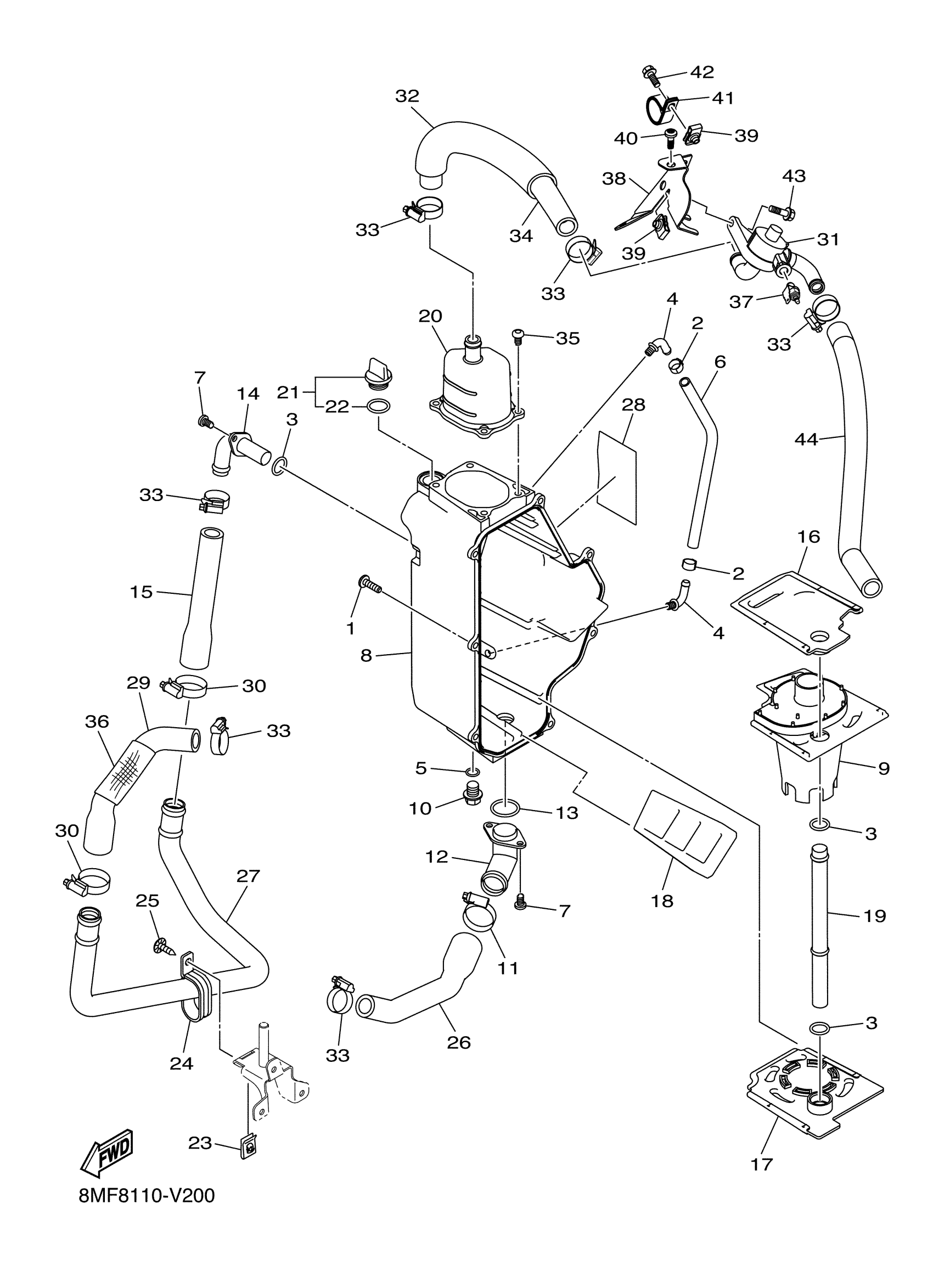

Yamaha SW1NLLMO (SIDEWINDER L TX LE) 8LY8 2021 OIL TANK Diagram
#
1
SCREW, TAPPING M6X
8JP-RA283-00-00
$1.43
2
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
3
O-RING, 5/8
8JP-RAF11-00-00
$0.43
4
PIPE, JOINT
8KC-E3758-00-00
$11.49
5
O-RING, 3
8JP-RAF05-00-00
$0.54
6
HOSE, OIL 2
8KC-E316G-00-00
$106.99
7
SCREW, TAPPING M6X
8JP-RA282-00-00
$2.12
8
TANK, OIL
8KC-F1751-00-00
$202.99
9
SEPERATOR, OIL
8KC-E1164-00-00
$36.99
10
PLUG, DRAIN
8JP-F15A1-00-00
$16.99
11
CLAMP,26
8JP-RAB29-00-00
$3.50
12
PIPE 2
8JP-F1817-00-00
$45.99
13
O-RING, 5
8JP-RAF07-00-00
$2.60
14
PIPE, OIL 1
8KC-E3416-00-00
$46.99
15
HOSE 2
8KC-E1378-00-00
$43.99
16
PLATE, BAFFLE
8KC-E3317-00-00
Unavailable
17
PLATE, BAFFLE LOWE
8KC-E3337-00-00
Unavailable
18
STRAINER
8KC-F4167-00-00
Unavailable
19
PIPE, OIL
8KC-F1766-00-00
Unavailable
20
BREATHER
8KC-F1744-00-00
Unavailable
21
PLUG, OIL
8KC-E5363-00-00
Unavailable
22
O-RING, 1
8KC-RAF00-00-00
Unavailable
23
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
24
CLAMP, 2
8KC-RAB01-00-00
Unavailable
25
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
26
HOSE, OIL 1
8KC-E316F-00-00
Unavailable
27
PIPE, OIL 2
8KC-E3418-00-00
Unavailable
28
OIL, LABEL
8KC-F178B-00-00
Unavailable
29
HOSE
8KC-E1377-00-00
Unavailable
30
CLAMP, 22
8JP-RAB24-00-00
Unavailable
31
VALVE ASSY.
8KJ-13520-10-00
Unavailable
32
PROTECTOR
8MF-F193A-00-00
Unavailable
33
CLAMP, 1
8KC-RAB00-00-00
Unavailable
34
HOSE, BREATHER 1
8KC-E531A-10-00
Unavailable
35
SCREW,M6-16
8KC-RA200-00-00
Unavailable
36
PROTECTOR, HOSE
8LR-F1824-00-00
Unavailable
37
HEATER ASSY
8MS-H3790-00-00
Unavailable
38
BRACKET 1
8MF-F172K-00-00
Unavailable
39
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
40
SCREW, M6X1X16
8JP-RA271-00-00
Unavailable
41
CLAMP, 21
8JP-RAB23-00-00
Unavailable
42
BOLT, FLANGE
8MF-RA100-00-00
Unavailable
43
SCREW
8MF-RA204-00-00
Unavailable
44
HOSE, BREATHER 2
8MF-E532A-00-00
Unavailable
