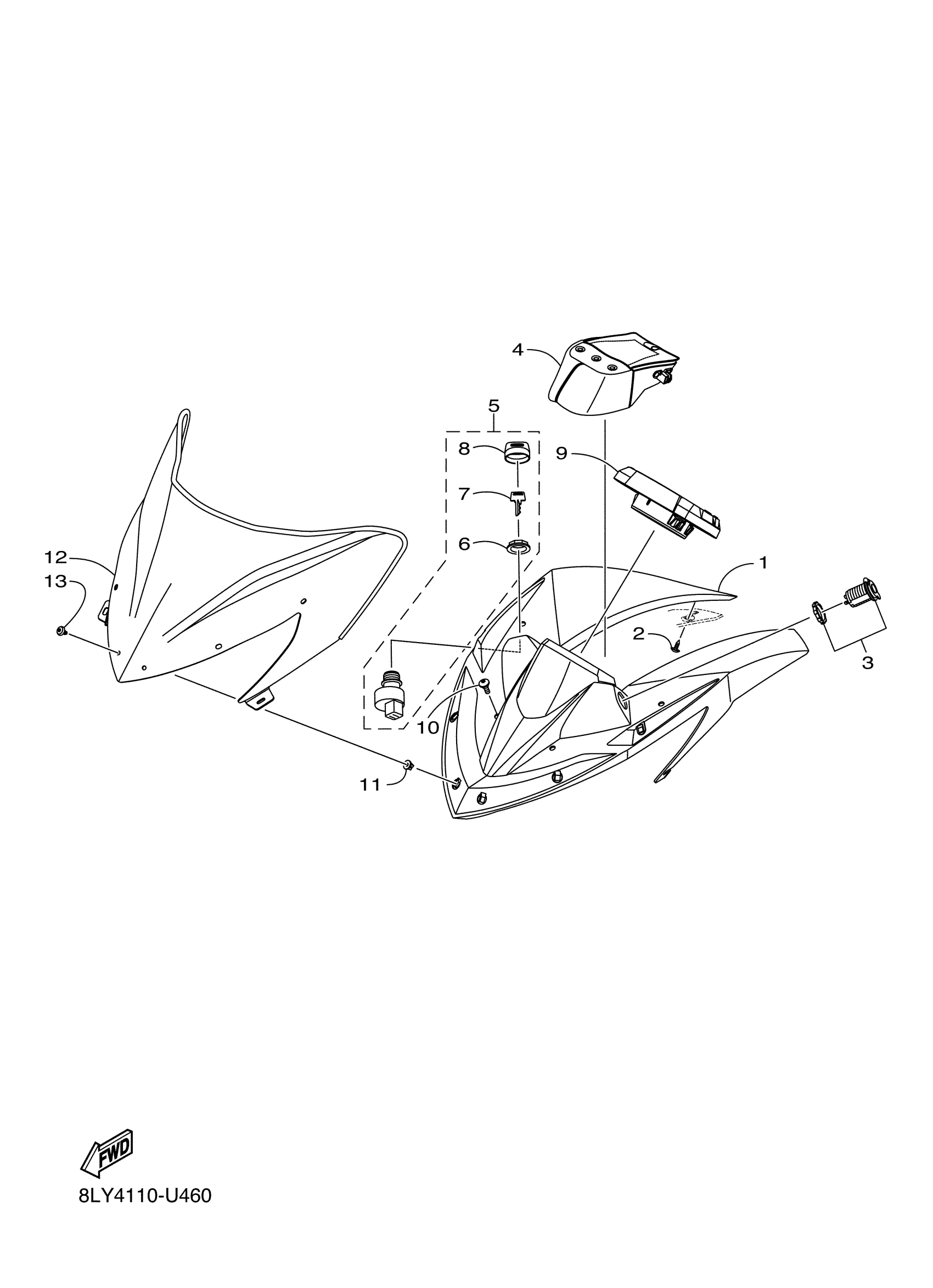

Yamaha SW1NLLKY (SIDEWINDER L TX LE) 8LY4 2019 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8LY-K7712-00-00

$176.38

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.62

3

TERMINAL COMP.

8JP-H254B-00-00

$24.30

4

BAG, GOGGLE

8MT-RAY39-00-00

$84.12

5

MAIN SWITCH ASSY

8JP-H2510-00-00

$43.97

6

. NUT, MAIN SWITCH

8JP-H2569-00-00

Unavailable

7

KEY (Y SERIESE, LE

8JP-H2511-00-00

$7.02

7

KEY (Z SERIES, RIG

8JP-H2511-10-00

$7.02

8

CAP, KEY

8JP-H2577-01-00

$15.83

9

SPEEDOMETER ASSY

8JR-H3501-10-00

$598.56

10

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.92

11

NUT, INSERT

8JP-RA373-00-00

$1.05

12

WINDSHIELD COMP.

8MR-K7210-30-00

$184.45

13

SCREW, TAPPING M6X

8JP-RA280-10-00

$1.62
