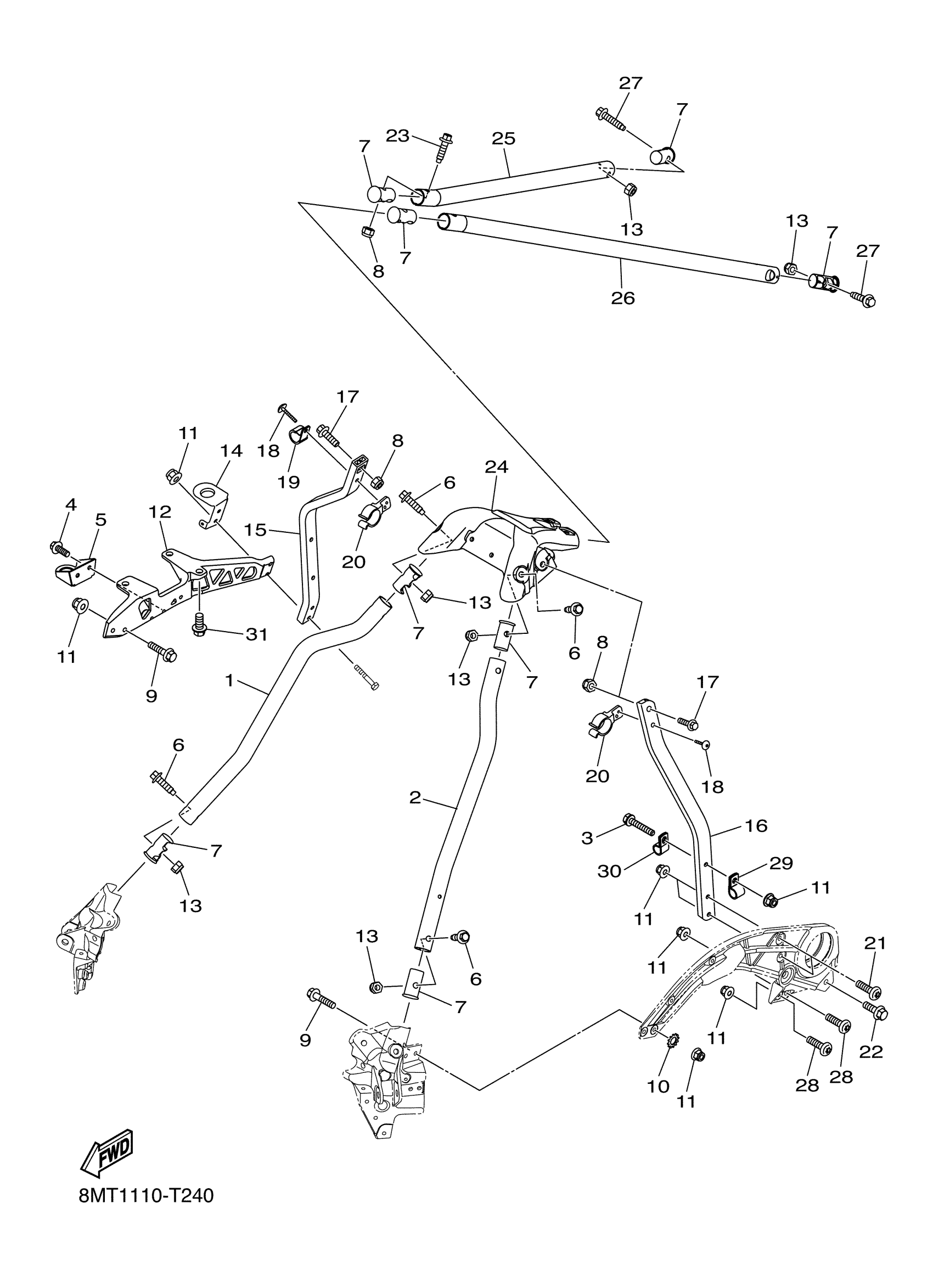

Yamaha SW1NLLJL (SIDEWINDER L TX LE) 8LY2 2018 STEERING GATE Diagram

#

Description
Price

1

CROSS TUBE,2

8KC-F1197-00-00

Unavailable

2

CROSS TUBE,1

8KC-F1196-00-00

Unavailable

3

BOLT,FLG. M6X25

8KC-RA153-00-00

$2.02

4

BOLT,FLG. M6X16

8KC-RA146-00-00

$0.70

5

BRACKET 1

8KC-F194X-00-00

$31.99

6

SCREW, 8

8JP-RA297-00-00

$3.08

7

CAP, MAIN PIPE

8JP-F111A-10-00

$3.98

8

NUT, HEX. LOCKING

8JP-RA372-00-00

$0.54

9

BOLT, FLG. M6X1.0X

8JP-RA182-00-00

$0.75

10

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

$0.27

11

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

12

REINF.,FRAME FR. 4

8KC-F1932-00-00

$116.99

13

NUT, HEX. LOCKING

8JP-RA371-00-00

$1.16

14

BRACKET 5

8MT-F112K-00-00

$15.99

15

MEMBER, SIDE 1

8KC-F111J-00-00

$127.99

16

MEMBER, SIDE 2

8JP-F111K-00-00

Unavailable

17

BOLT, FLG. M8X1.25

8JP-RA185-00-00

Unavailable

18

SCREW, 10-12X1.00

8KC-RA288-00-00

Unavailable

19

BRACKET, FILTER

8JP-F4566-10-00

Unavailable

20

CLIP

8JP-F11C2-00-00

Unavailable

21

SCREW, 1

8KC-RA235-00-00

Unavailable

22

BOLT, FLANGE M8-1.25X25

8JM-RA102-00-00

Unavailable

23

BOLT, FLG. M8X1.25

8JP-RA187-00-00

Unavailable

24

GATE, STEERING

8KC-F3871-00-00

Unavailable

25

PIPE, CROSS, 7

8KC-F119E-00-00

Unavailable

26

PIPE CROSS 8

8KC-F119F-00-00

Unavailable

27

BOLT, FLG. M10X1.2

8JP-RA197-00-00

Unavailable

28

SCREW

8KG-RA229-00-00

Unavailable

29

CLAMP, 2

8MT-RAB01-00-00

Unavailable

30

CLAMP, 21

8JP-RAB23-10-00

Unavailable

31

SCREW, 2

8KC-RA236-00-00

Unavailable
