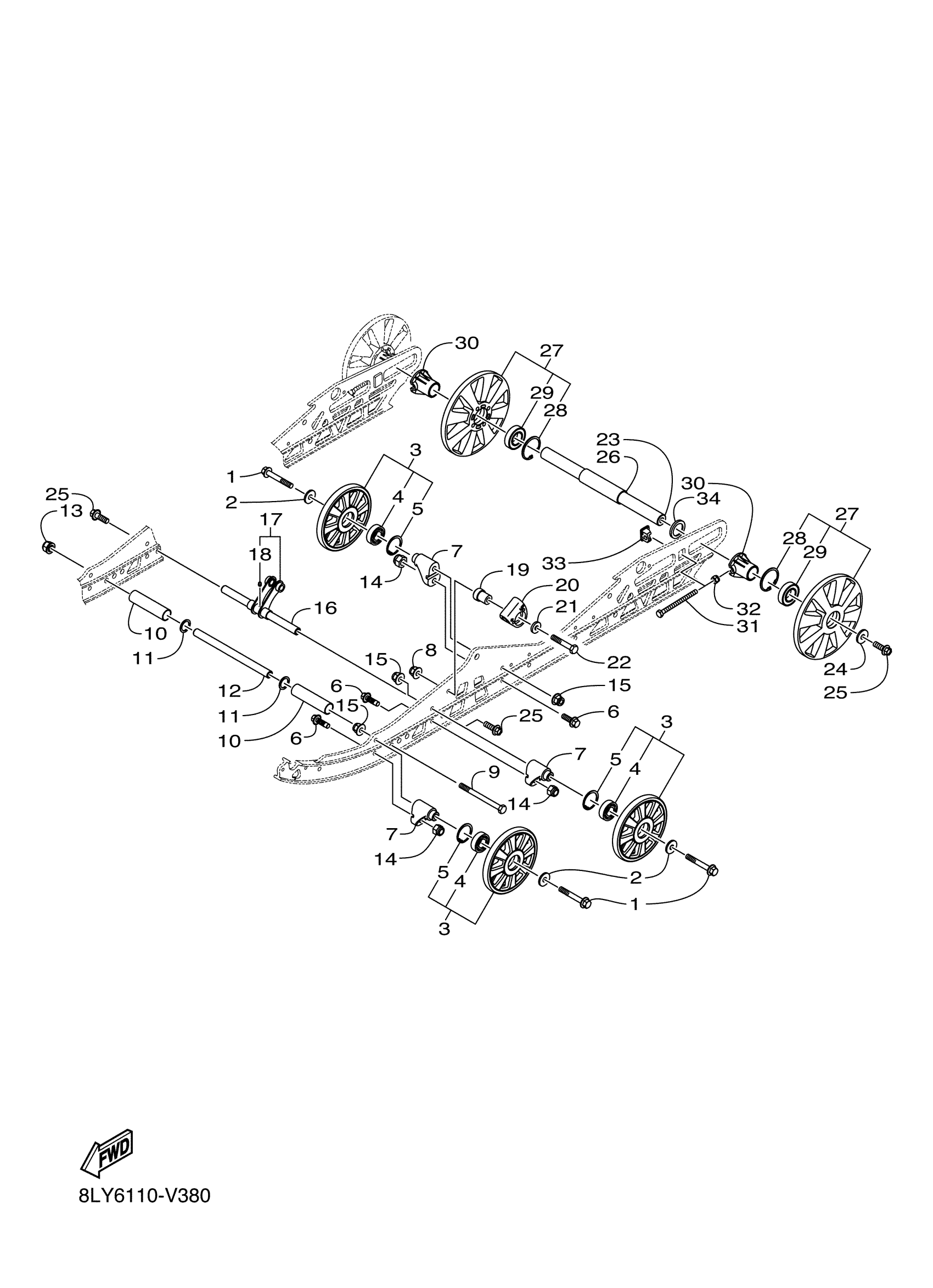

Yamaha SW1NLGPNL (SIDEWINDER L TX GT EPS) 8PB1 2022 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

BOLT, FLANGE 1

8JP-RA1B5-00-00

$3.88

2

WASHER, 9

8JP-RA466-00-00

$1.75

3

SUSPENSION WHEEL A

8JR-G7310-20-00

$47.99

4

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

5

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

6

BOLT, FLANGE 2

8JP-RA1B6-00-00

$1.16

7

BRACKET 7

8JP-G7419-10-00

$10.49

8

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

9

BOLT, FLG. M10-1.2

8JP-RA194-10-00

$9.49

10

COLLAR, 11

8JP-RA723-00-00

$15.99

11

WASHER, 0.890X1.19

8JP-RA437-00-00

Unavailable

12

COLLAR, 22.2

8JP-RA729-00-00

$73.99

13

LOCK NUT

8JP-RA378-01-00

$0.96

14

NUT, LOCK 1

8JP-RA379-00-00

$0.54

15

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

16

SHAFT 6

8JP-G7488-10-00

Unavailable

17

BRACKET, ARM PIVOT

8JX-G7349-10-00

Unavailable

18

NIPPLE, GREASE 1

8JP-RAL01-00-00

Unavailable

19

COLLAR

8JP-G7319-00-00

Unavailable

20

HOOK 1

8JP-G7446-00-00

Unavailable

21

WASHER, 9.12X25.40

8JP-RA452-00-00

Unavailable

22

BOLT, HEXAGON

8JP-RA1B7-00-00

Unavailable

23

AXLE, REAR

8JP-G7521-20-00

Unavailable

24

WASHER, M10X29

8JP-RA453-00-00

Unavailable

25

BOLT, FLG. M10X1.2

8JP-RA199-00-00

Unavailable

26

COLLAR, 18

8JY-RA734-00-00

Unavailable

27

GUIDE WHEEL ASSY

8JR-G7550-10-00

Unavailable

28

CIRCLIP, 2

8JM-RAH01-10-00

Unavailable

29

BEARING, 2

8JM-RAY03-10-00

Unavailable

30

WHEEL, GUIDE 1

8JP-G7534-10-00

Unavailable

31

BOLT, HEX. M8X1.25

8JP-RA1B1-00-00

Unavailable

32

NUT, HEX. LOCKING

8JP-RA372-00-00

Unavailable

33

BRACKET 5

8JP-G7463-00-00

Unavailable

34

WASHER, 25X36X2

8JP-RA447-00-00

Unavailable
