Description

Price

1

HANDLEBAR

8LJ-F6111-00-00

$86.99

2

GRIP

8JR-F6241-00-00

$18.99

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

5

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

6

CLIP, 1

8JP-RAC10-10-00

Unavailable

7

NUT, 0.125

8JP-RA346-00-00

$1.64

8

COVER

8NV-H252U-00-00

Unavailable

9

LEVER HOLDER ASSY

8MY-H2710-00-00

$9.49

10

STOP SWITCH ASSY

8MY-H2530-00-00

Unavailable

11

CLAMP

8MY-H2544-00-00

$5.60

12

SCREW

8MY-RA200-00-00

$0.64

13

CABLE, THROTTLE 1

8MY-F6311-00-00

Unavailable

14

SWITCH, HANDLE 4

8MS-H3972-10-00

$506.99

15

BUTTON

8MY-H296K-00-00

$73.99

16

SWITCH, HANDLE 3

8MY-H3973-00-00

Unavailable

17

PROTECTOR, HANDLEB

8JP-F6124-00-00

Unavailable

18

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

18

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

18

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

19

RING RETAINING

8JM-RAH02-00-00

Unavailable

20

PROTECTOR

8MY-HA7A0-00-00

Unavailable

20

PROTECTOR 1

8MY-HA7A1-00-00

Unavailable

21

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable

22

GRIP,WARMER

8MY-F626A-00-00

Unavailable

23

GRIP,WARMER

8MY-F626A-10-00

Unavailable

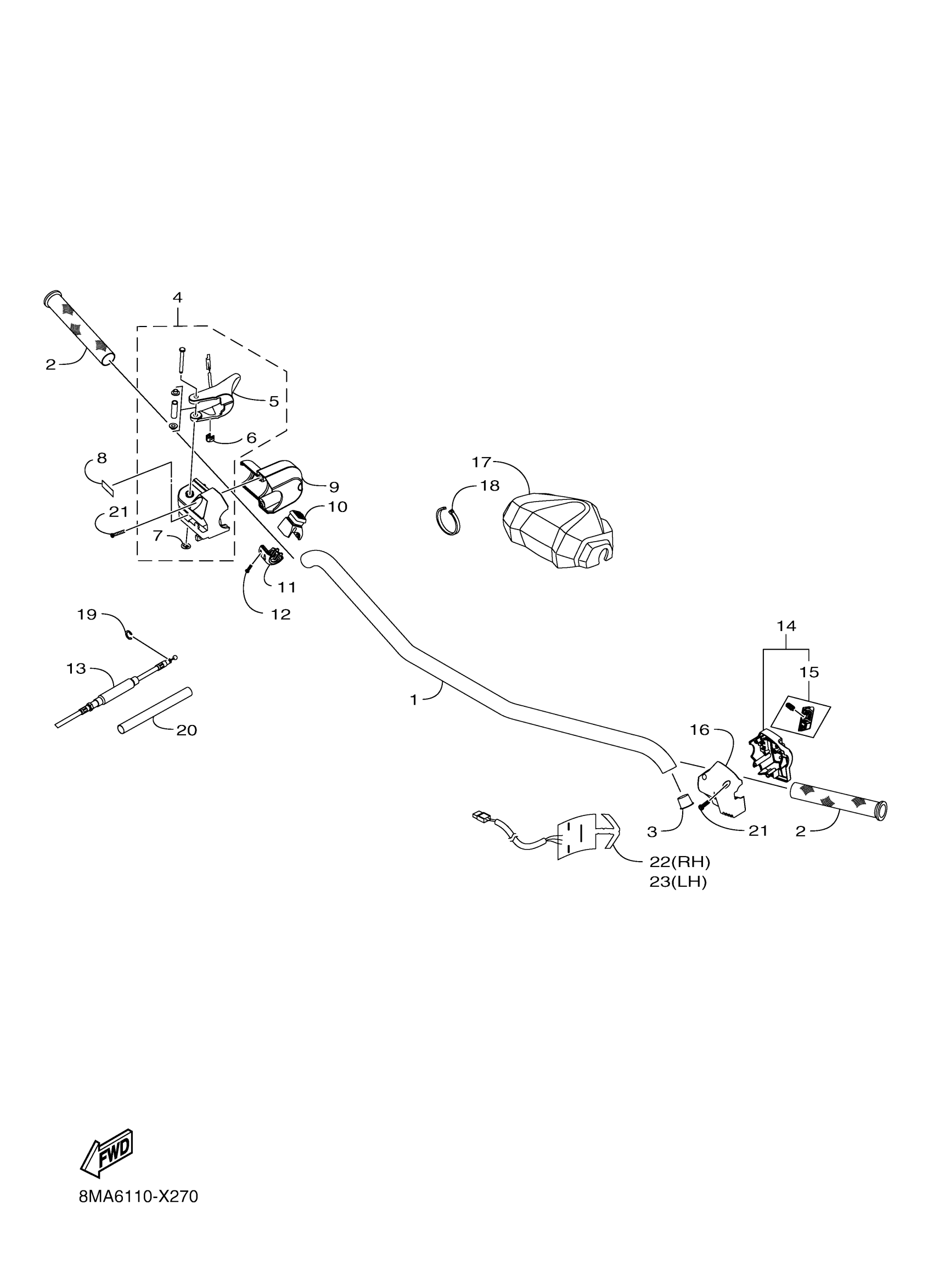

Yamaha SW1NLGPNL (SIDEWINDER L TX GT EPS) 8PB1 2022 STEERING Diagram

HANDLEBAR

GRIP

NUT

LEVER HOLDER ASSY

LEVER HOLDER ASSY

CLIP, 1

NUT, 0.125

COVER

LEVER HOLDER ASSY

STOP SWITCH ASSY

CLAMP

SCREW

CABLE, THROTTLE 1

SWITCH, HANDLE 4

BUTTON

SWITCH, HANDLE 3

PROTECTOR, HANDLEB

TIE, CABLE-8.5/7.5/7.4

CLAMP, 1 (4-INCH)

CLAMP, 2 (11.5 INCH)

RING RETAINING

PROTECTOR

PROTECTOR 1

SCREW, 8-18X0.875

GRIP,WARMER

GRIP,WARMER
