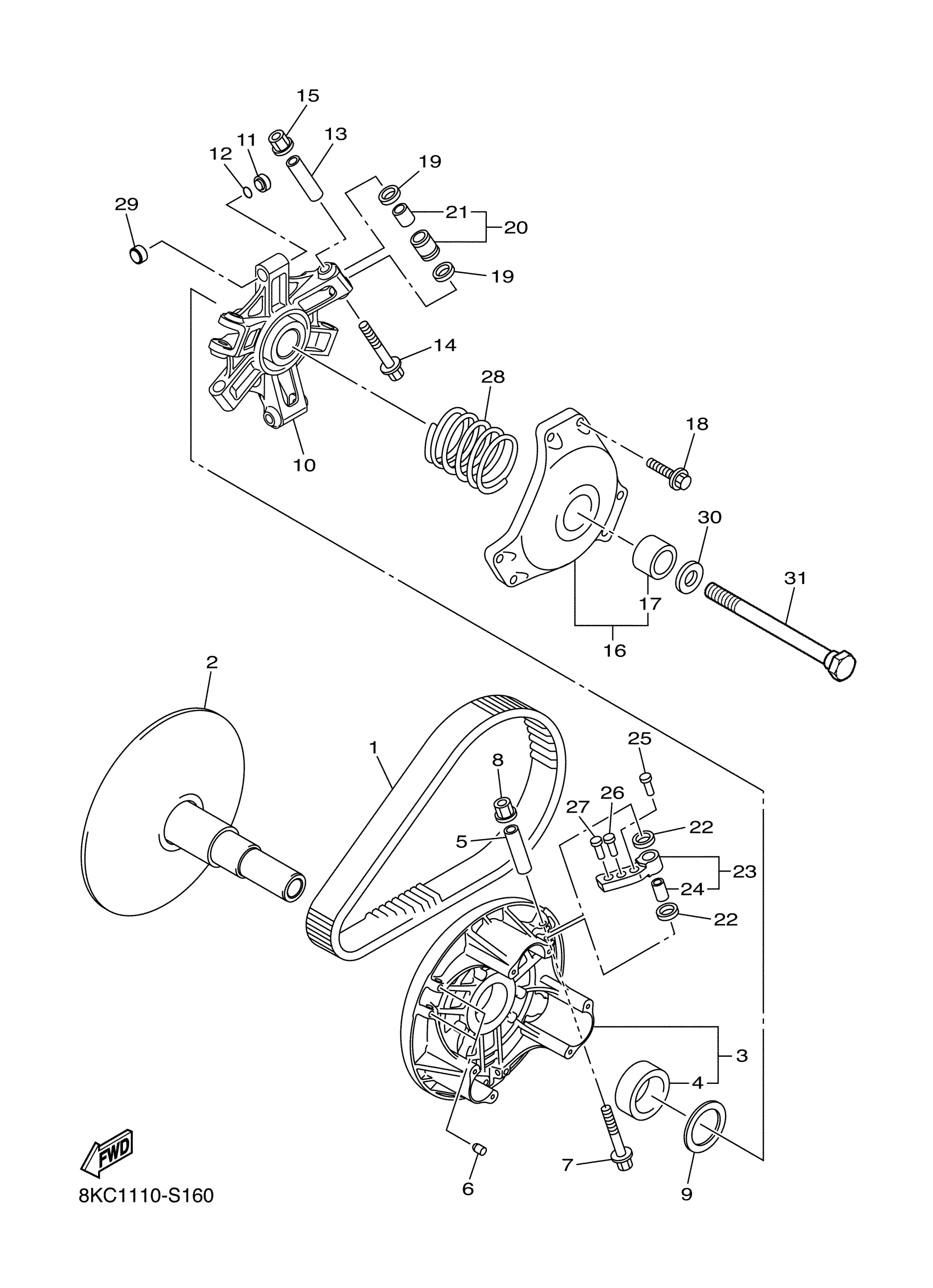

Yamaha SW1NLGMB (SIDEWINDER L TX GT) 8NG3 2021 PRIMARY SHEAVE Diagram

#

Description
Price

1

V-BELT

8JP-17641-00-00

$101.94

2

PRIMARY FIXED SHEAVE COMP.

8KC-17610-00-00

$359.79

3

PRIMARY SLIDING SHEAVE COMP.

8KC-17620-00-00

$246.18

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$48.06

5

COLLAR

90387-05060-00

$12.48

6

BOLT, SET

90113-05041-00

$6.22

7

BOLT, FLANGE

90105-05030-00

$0.85

8

NUT, S/L FLANGE

95607-05200-00

$6.39

9

WASHER, PLATE

90201-33016-00

Unavailable

10

SPIDER

8KC-17627-00-00

Unavailable

11

SLIDER

8KC-17653-00-00

$15.47

12

O-RING (214)

93210-07100-00

$5.50

13

COLLAR

90387-05059-00

$13.43

14

BOLT, FLANGE

90105-05030-00

$0.85

15

NUT, S/L FLANGE

95607-05200-00

$6.39

16

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

Unavailable

17

BUSH, SOLID(8CP)

90380-28237-00

Unavailable

18

BOLT, FLANGE

95812-06030-00

Unavailable

19

WASHER, PLATE

90202-09002-00

Unavailable

20

ROLLER, COMP

8FG-17624-00-00

Unavailable

21

BUSH

90386-09001-00

Unavailable

22

WASHER, PLATE

90202-08005-00

Unavailable

23

WEIGHT COMP

8LR-17605-00-00

Unavailable

24

BUSH

90386-08002-00

Unavailable

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

26

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

27

RIVET (AL13.3)

90266-06001-00

$2.33

28

SPRING, COMPRESSION

90501-570A1-00

Unavailable

29

SLIDER

8KC-17653-10-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable

31

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable
