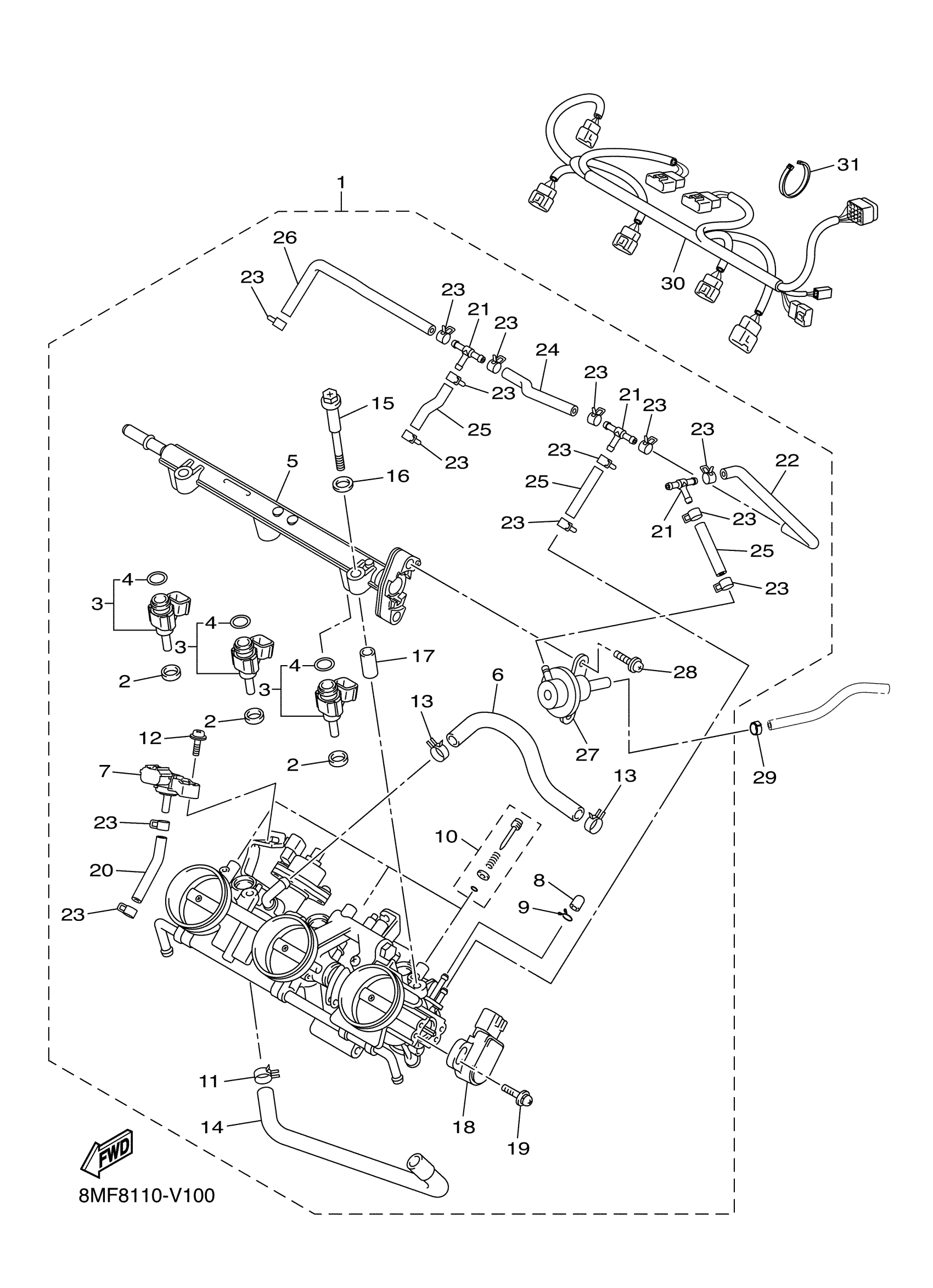

Yamaha SW1NLGLR (SIDEWINDER L TX GT) 8NG1 2020 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8KJ-13750-00-00

Unavailable

2

. GASKET, MANIFOLD

8FP-13556-10-00

Unavailable

3

INJECTOR

8KJ-13761-00-00

$191.99

4

O-RING

8FP-14147-00-00

$23.99

5

PIPE

8KJ-13938-00-00

Unavailable

6

HOSE, AIR

8GL-13895-00-00

Unavailable

7

. SENSOR, PRESSURE

6BH-82380-00-00

Unavailable

8

CAP

84M-14169-00-00

$15.49

9

CLIP

8KJ-14137-00-00

$8.49

10

ADJUST SCREW SET

8GL-14503-00-00

Unavailable

11

CLIP

90468-08104-00

$3.93

12

SCREW

2C0-14216-00-00

$3.28

13

CLIP

8KJ-14159-00-00

$8.49

14

HOSE 1

8HF-13545-00-00

Unavailable

15

BOLT 1

8GL-13573-00-00

$14.99

16

WASHER

8GL-13571-00-00

Unavailable

17

COLLAR

8GL-14534-00-00

Unavailable

18

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

19

SCREW

8CC-14216-10-00

Unavailable

20

PIPE, FUEL 1

5JW-24311-00-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

22

HOSE, AIR 3

8GL-13893-00-00

Unavailable

23

CLIP

5DM-14919-00-00

Unavailable

24

. HOSE, VACUUM SENSING 4

68V-13533-00-00

Unavailable

25

PIPE

8FP-14349-30-00

Unavailable

26

HOSE

8KJ-1410E-00-00

Unavailable

27

REGULATOR, PRESSURE

8KJ-13906-00-00

Unavailable

28

GASKET, EXHAUST

98507-05008-00

Unavailable

29

CLIP, 2

8KC-RAC01-00-00

Unavailable

30

EXTENSION, WIRE HA

8KC-H2386-00-00

Unavailable

31

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

31

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable
