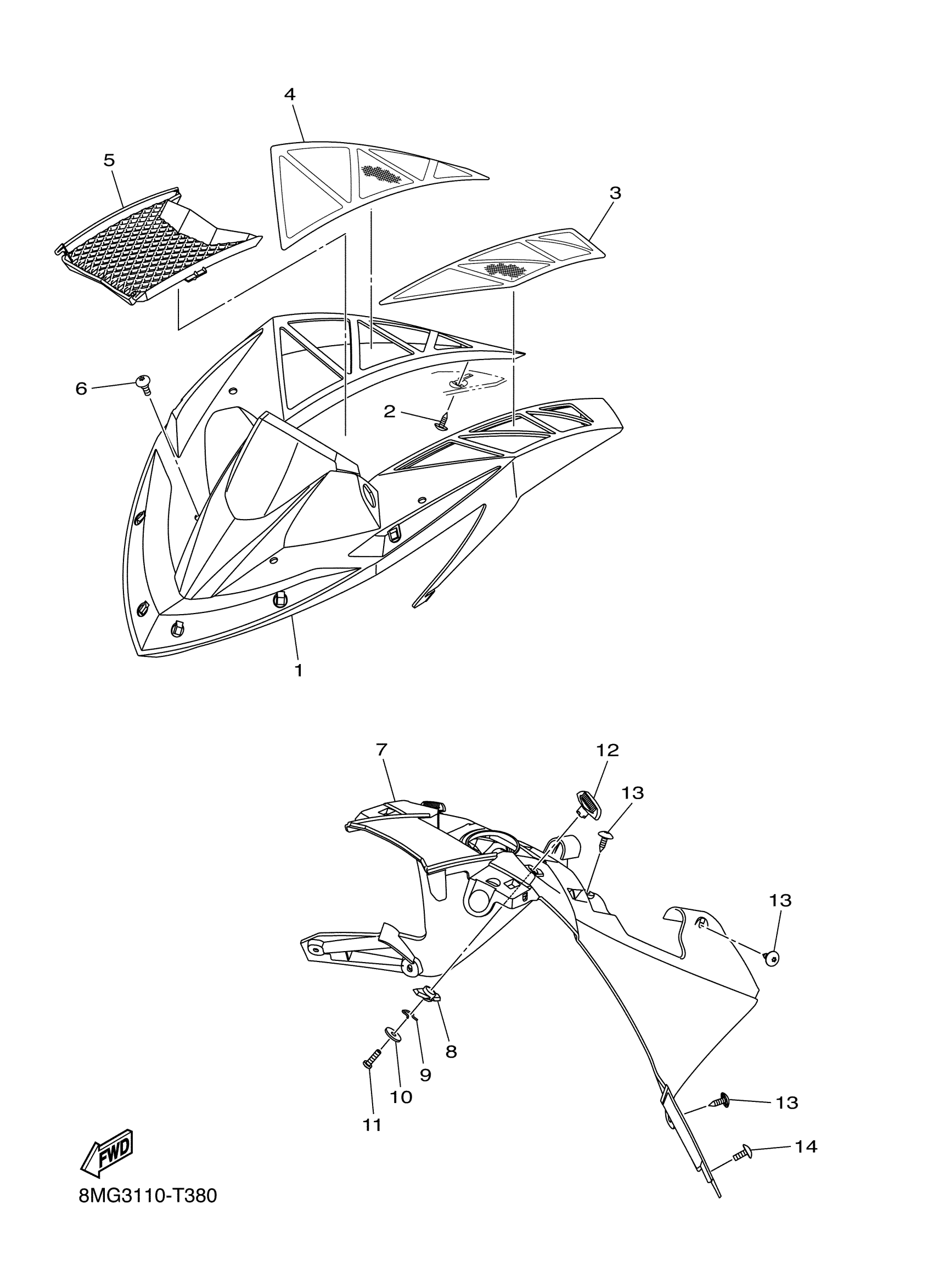

Yamaha SW1NBS53JY (SIDEWINDER B TX SE 153 1.75) 8MG3 2018 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL,INSTRUMENT

8MT-K7712-01-00

Unavailable

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

3

SCREEN, INTAKE DUC

8MT-K715D-00-00

$41.99

4

SCREEN, INTAKE DUC

8MT-K715E-00-00

Unavailable

5

LOUVER 1

8KC-K7131-00-00

Unavailable

6

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

7

PANEL, INSTRUMENT

8KC-K7711-10-00

$95.99

8

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

9

CLIP, 6

8JP-RAC15-00-00

$9.49

10

WASHER

8JP-RA429-00-00

$1.16

11

SCREW, 13

8JP-RA2A2-00-00

$0.43

12

KNOB

8KC-K7324-00-00

$1.86

13

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

14

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86
