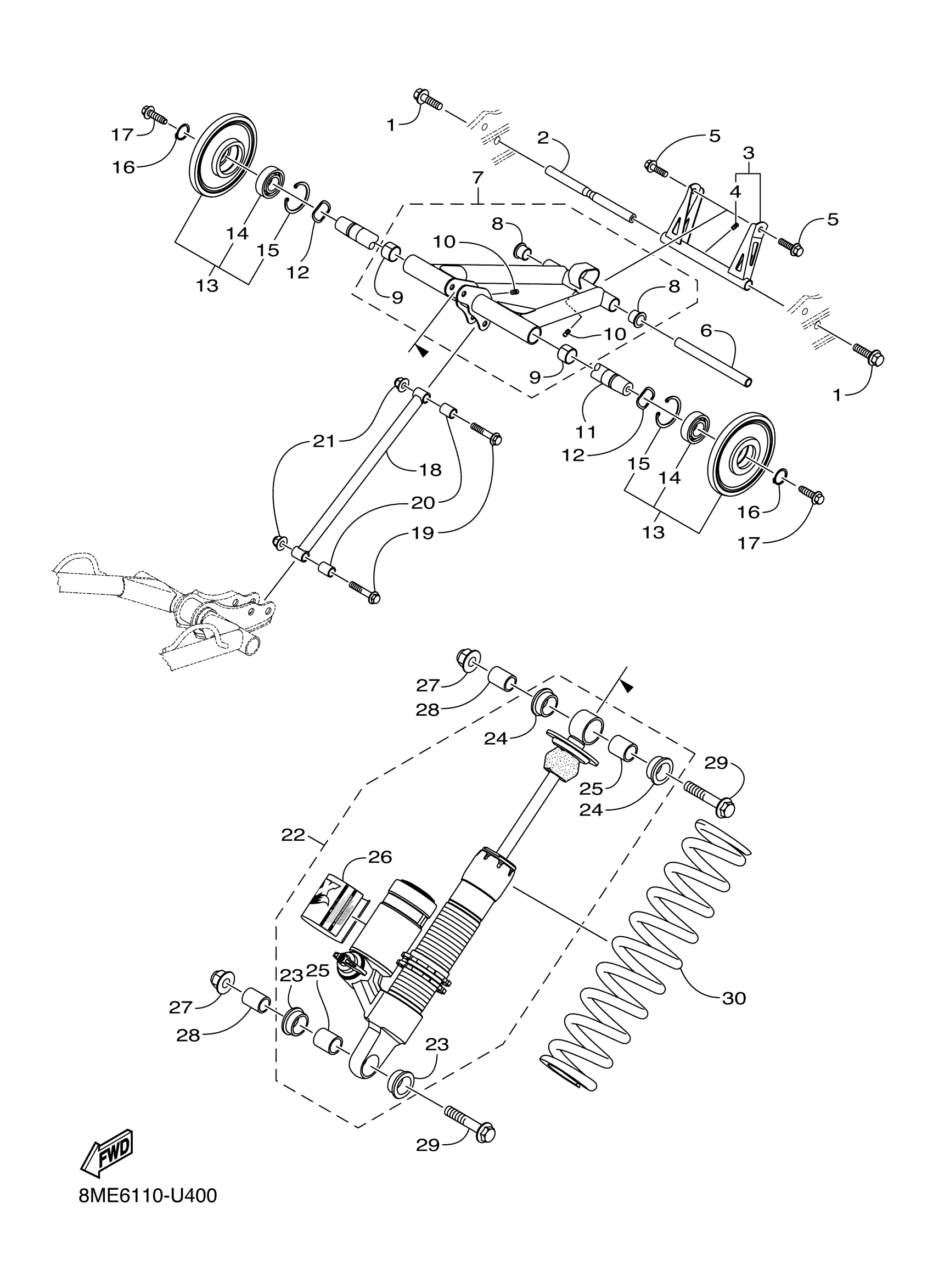

Yamaha SW1NBLMO (SIDEWINDER B TX LE 153) 8MFB 2021 TRACK SUSPENSION 4 Diagram

#

Description
Price

1

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

2

SHAFT 6

8JR-G7488-00-00

Unavailable

3

BRACKET 3

8JR-G7417-10-00

Unavailable

4

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

5

BOLT, FLANGE M10X1.25X30

8JP-RA198-10-00

Unavailable

6

SHAFT 5

8JR-G7487-10-00

$40.99

7

ARM, PIVOT 2

8JR-G7332-30-00

Unavailable

8

BUSH, 0.751

8JP-RA812-00-00

$4.35

9

BUSH, 6

8JP-RA815-00-00

Unavailable

10

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

11

SHAFT 2

8JR-G7475-30-00

Unavailable

12

WASHER, WAVE

8JP-RA463-00-00

$3.35

13

WHEEL,SUSPENSION 2

8JR-G7312-00-00

$69.99

14

BEARING, 3

8JP-RAG08-00-00

Unavailable

15

CIRCLIP, 4

8JP-RAH10-00-00

$1.81

16

CIRCLIP, 5

8JP-RAH11-00-00

Unavailable

17

BOLT, FLG. M10X1.2

8JP-RA1A0-00-00

Unavailable

18

ROD, RELAY

8MT-G7494-00-00

Unavailable

19

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable

20

COLLAR 12

8JP-RA724-10-00

Unavailable

21

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

22

SHOCK ABSORBER

8MF-G7480-00-00

Unavailable

23

BUSH, 8

8JP-RA817-00-00

Unavailable

24

BUSH, 8

8JP-RA817-20-00

Unavailable

25

COLLAR, 15

8JP-RA732-00-00

Unavailable

26

LABEL 6

8JW-F151J-00-00

Unavailable

27

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

28

COLLAR 12

8JP-RA724-10-00

Unavailable

29

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable

30

SPRING 1

8MF-G7489-00-00

Unavailable
