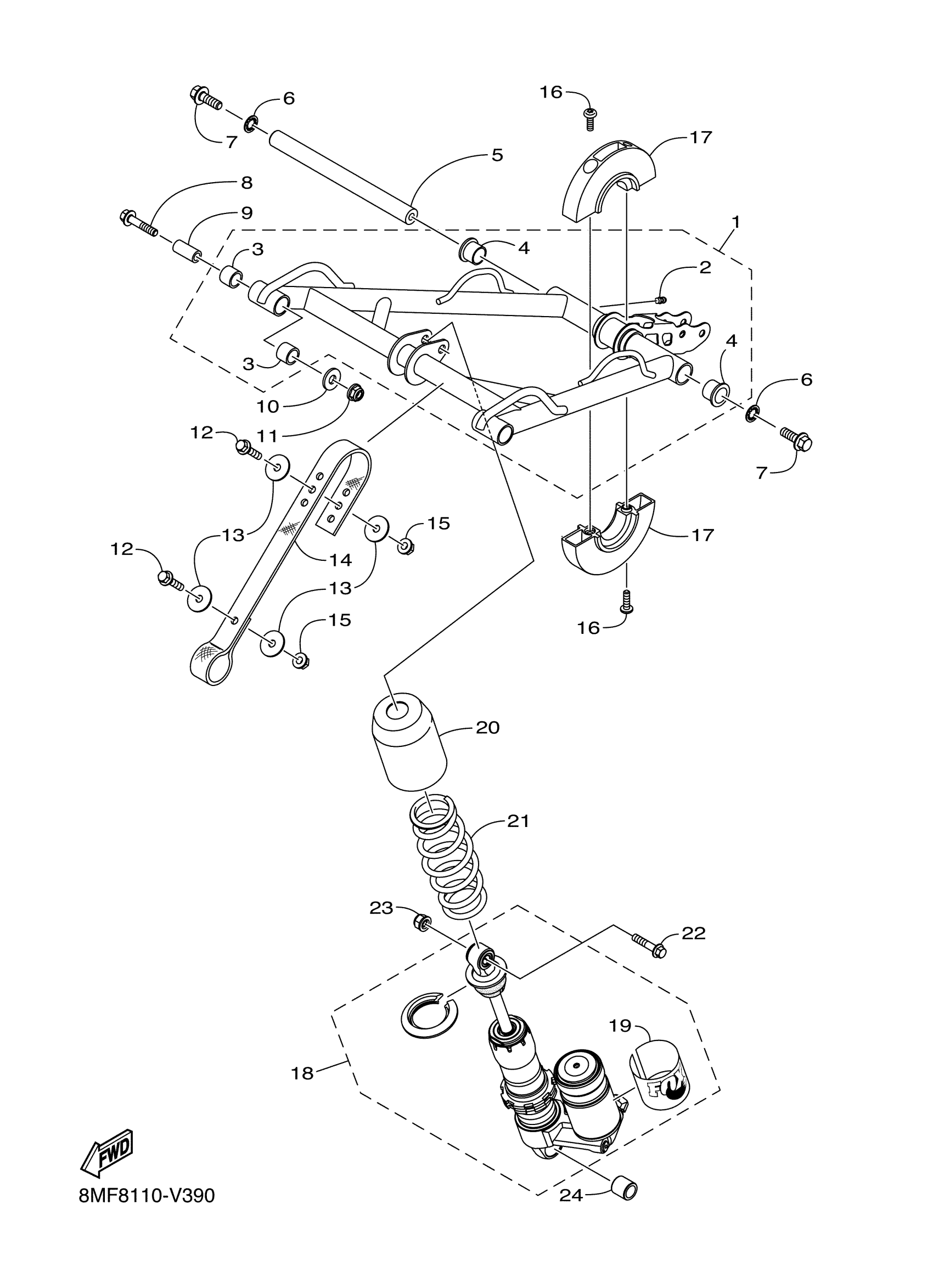

Yamaha SW1NBLMO (SIDEWINDER B TX LE 153) 8MFB 2021 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

ARM,PIVOT 1

8JR-G7331-10-00

$311.99

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

BUSH, 5

8JP-RA814-00-00

$4.46

4

BUSH, 0.751

8JP-RA812-00-00

$4.35

5

SHAFT 4

8JP-G7486-10-00

$35.99

6

WASHER, TOOTH M10

8JP-RA457-00-00

$0.43

7

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

8

SCREW, 7

8JP-RA296-00-00

$3.88

9

COLLAR, 16

8JP-RA733-00-00

Unavailable

10

WASHER, PLAIN

8JP-RA462-00-00

$0.74

11

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

12

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.16

13

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.85

14

STOPPER 1

8KG-G7495-10-00

Unavailable

15

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

16

SCREW, 10-14X3/4

8JP-RA289-00-00

Unavailable

17

RIM,GUIDE WHEEL

8JR-G7513-00-00

Unavailable

18

DAMPER SUB ASSY

8MF-F2201-00-00

Unavailable

19

LABEL 6

8JW-F151J-00-00

Unavailable

20

COVER

8JP-F2211-00-00

Unavailable

21

SPRING, 2

8JR-G7336-00-00

Unavailable

22

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable

23

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

24

COLLAR, 22.4

8JP-RA730-00-00

Unavailable
