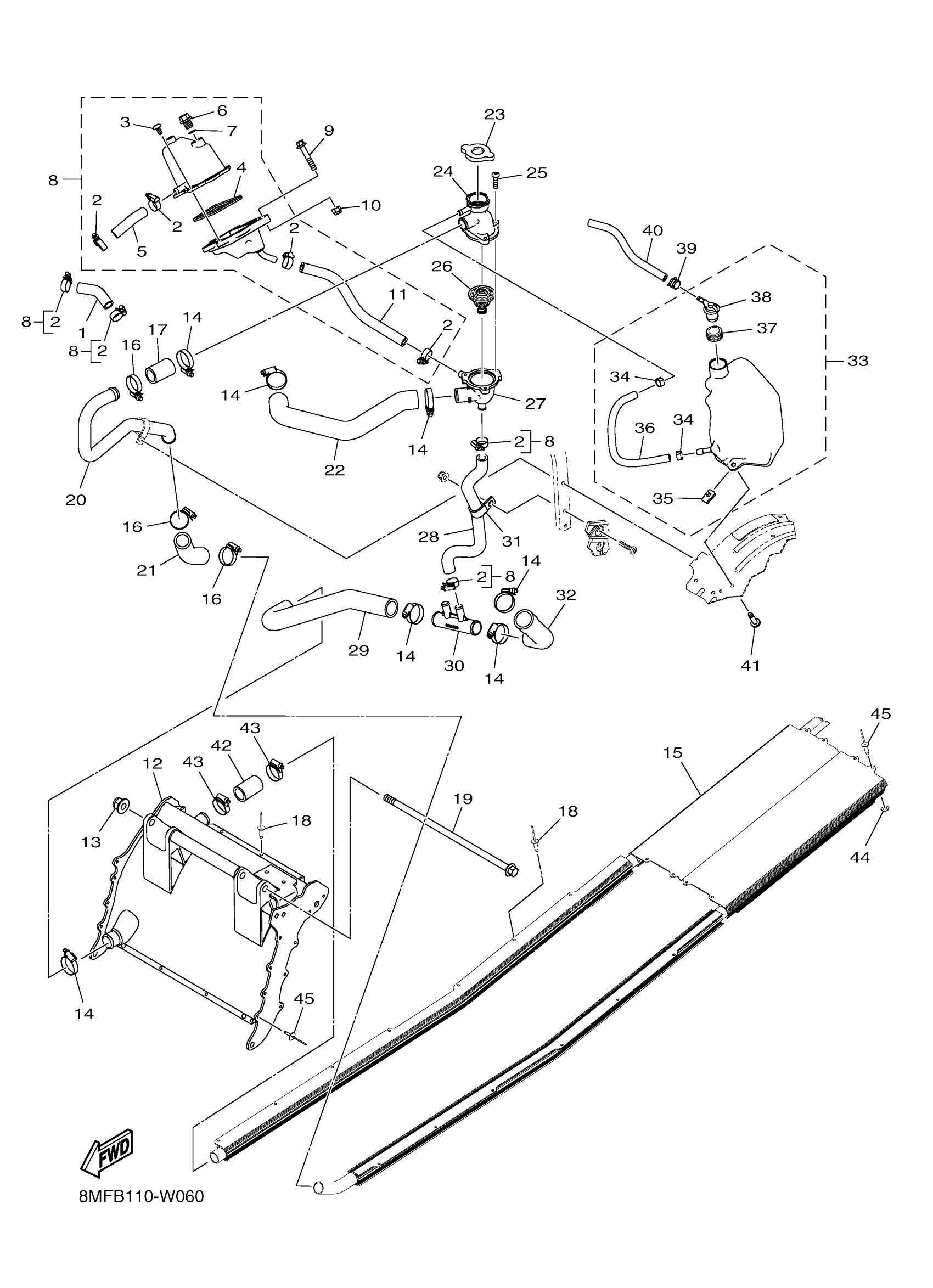

Yamaha SW1NBLMO (SIDEWINDER B TX LE 153) 8MFB 2021 RADIATOR & HOSE Diagram

HOSE 2

8JP-E243E-00-00

Unavailable

CLAMP, HOSE

8JP-F1823-00-00

$3.40

SCREW, 6

8KC-RA295-00-00

Unavailable

SEAL

8KC-E2877-00-00

$7.49

HOSE 2

8KC-E243E-00-00

Unavailable

PLUG, DRAIN

8JP-F15A1-00-00

$16.99

O-RING, 3

8JP-RAF05-00-00

$0.54

TANK ASSY

8KC-E2490-00-00

Unavailable

BOLT FLANGE M6X1.0X

8KN-RA183-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

HOSE,3

8KC-E243F-00-00

$18.99

HEAT EXCHANGER ASS

8MG-E2440-00-00

$579.99

NUT, FLG. LOCKING

8JP-RA362-00-00

$1.75

CLAMP,26

8JP-RAB29-00-00

$3.50

HEAT EXCHANGER

8MF-E240E-00-00

$343.99

CLAMP, 22

8JP-RAB24-00-00

Unavailable

HOSE, 4

8KC-E244G-00-00

Unavailable

RIVET, 11

8JP-RA520-00-00

Unavailable

BOLT, ENGINE MOUNT

8KC-F1481-00-00

Unavailable

PIPE 1

8KC-E2481-00-00

Unavailable

HOSE 5

8MG-E244H-00-00

Unavailable

HOSE 1

8KC-E243A-00-00

Unavailable

CAP, RADIATOR

8JP-E2462-00-00

Unavailable

NECK, FILLER

8KC-E2521-00-00

Unavailable

SCREW, M5X0.8X20

8JP-RA244-00-00

Unavailable

THERMOSTAT ASSY

8JP-E2410-00-00

Unavailable

HOUSING, THERMOSTA

8KC-E2417-00-00

Unavailable

HOSE 8

8KC-E2552-00-00

Unavailable

HOSE 6

8KC-E244J-00-00

Unavailable

JOINT

8KC-E2446-00-00

Unavailable

CLAMP, 3

8KC-RAB05-00-00

Unavailable

HOSE 7

8KC-E2551-00-00

Unavailable

RECOVERY TANK ASSY

8KC-F1870-00-00

Unavailable

CLAMP, HOSE-10.8 MM TO 13.3 MM

8JM-RAC02-00-00

Unavailable

NUT, CLIP M6

8JP-RA354-00-00

Unavailable

. HOSE, 6 (25 FEET)

8JP-RA910-00-00

Unavailable

STOPPER

8KC-E2437-00-00

Unavailable

VALVE, CHECK 1

8JP-F4362-00-00

Unavailable

CLAMP, 3

8KC-RAB02-00-00

Unavailable

HOSE, 3 (50 FEET)

8JP-RA907-00-00

Unavailable

BOLT 1

8LN-K7537-00-00

Unavailable

HOSE, 4

8MF-E244G-00-00

Unavailable

CLAMP, 22

8MF-RAB24-00-00

Unavailable

WASHER,FLAT .194X.50X.048

8JM-RA411-00-00

Unavailable

RIVET, 12

8JP-RA521-00-00

Unavailable
