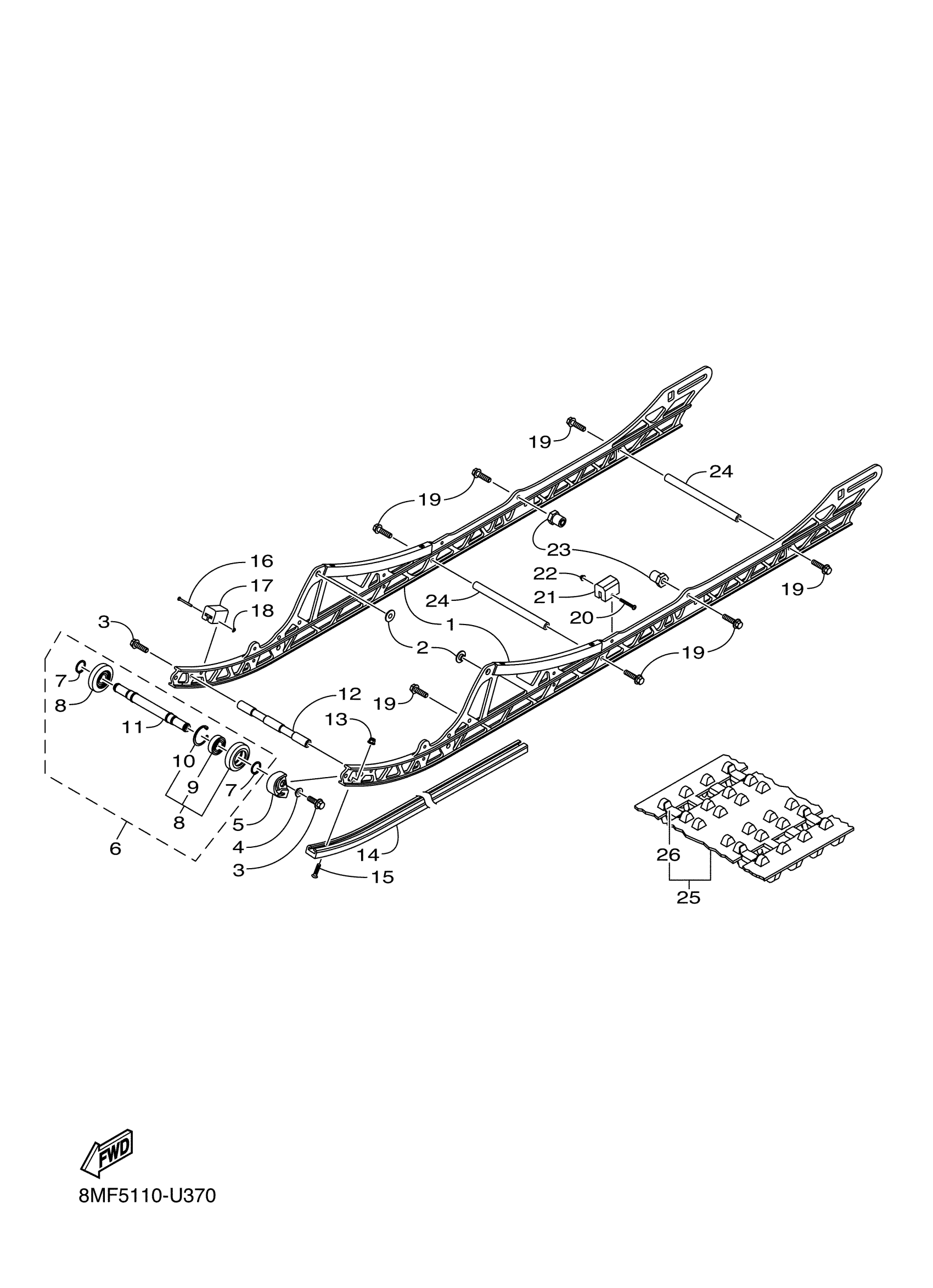

Yamaha SW1NBLLL (SIDEWINDER B TX LE 153) 8MF8 2020 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8KG-G741A-A0-00

$311.99

2

COLLAR, 13

8JP-RA725-00-00

$4.14

3

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

4

WASHER, END

8JP-RA472-00-00

$9.49

5

RUNNER, SLIDING 2

8JR-G7422-20-00

$7.49

6

SUSPENSION WHEEL

8JR-G7320-01-00

$124.99

7

. WASHER , RING

8JP-RA473-00-00

Unavailable

8

SUSPENSION WHL ASY

8JR-G7310-10-00

$59.99

9

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

10

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

11

SHAFT 3

8JR-G7485-20-00

$41.99

12

SHAFT 3

8JR-G7485-00-00

Unavailable

13

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

14

RUNNER, SLIDING 1

8KG-G7421-10-00

$43.99

15

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

16

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

Unavailable

17

PAD, SHOCK - RUBBER

8JM-G7456-00-00

Unavailable

18

NUT, 0.125

8JP-RA346-00-00

Unavailable

19

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable

20

SCREW, M5X0.8X40

8JP-RA249-00-00

Unavailable

21

DAMPER 2

8JP-G7457-00-00

Unavailable

22

NUT, FLG. LOCKING

8JP-RA363-00-00

Unavailable

23

NUT

8JR-G7368-00-00

Unavailable

24

SHAFT, PIVOT

8JR-G7337-10-00

Unavailable

25

TRACK ASSY

8MF-G7110-10-00

Unavailable

26

PLATE,RNFCMNT

8JR-G7113-00-00

Unavailable
