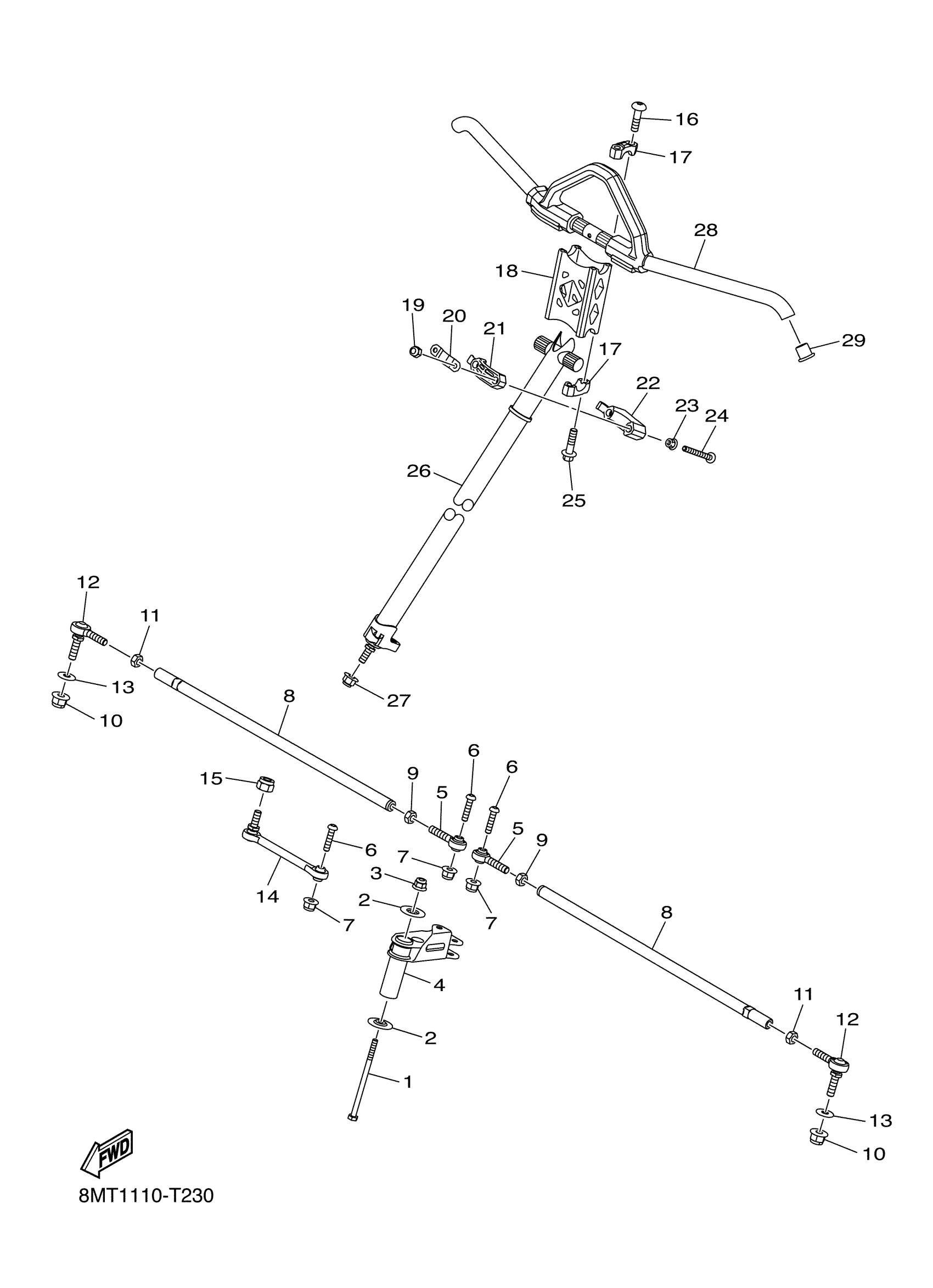

Yamaha SW1NBL53JW (SIDEWINDER B TX LE 153 50TH) 8MF3 2018 STEERING Diagram

#

Description
Price

1

BOLT, HEX. M6X1X10

8JP-RA1B0-00-00

Unavailable

2

WASHER, 1

8JP-RA432-00-00

Unavailable

3

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

4

ARM, PIVOT

8JP-F389G-00-00

Unavailable

5

JOINT, UNIVERSAL 2

8JP-F3845-00-00

Unavailable

6

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable

7

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

8

ROD, TIE

8KR-F3831-00-00

$25.99

9

NUT, HEX. M10X1.25

8JP-RA369-00-00

$0.96

10

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

11

NUT, HEX. M10-1.25

8JP-RA368-00-00

Unavailable

12

JOINT, UNIVERSAL 3

8JP-F3847-00-00

$67.99

13

WASHER, PLANE M10X

8JP-RA454-00-00

$1.16

14

ROD, STEERING RELA

8JP-F3821-00-00

Unavailable

15

NUT, HEX. LOCKING

8JP-RA371-00-00

$1.16

16

SCREW,9

8KG-RA298-00-00

Unavailable

17

HOLDER, HANDLE UPP

8JP-F3814-10-00

Unavailable

18

JOINT

8JP-F381B-10-00

Unavailable

19

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

20

HOLDER, BEARING

8JP-F3872-00-00

Unavailable

21

BEARING,STEERING

8KG-F3812-00-00

Unavailable

22

BEARING,STEERING

8KG-F3812-10-00

Unavailable

23

NUT, LOCK 1

8JP-RA379-00-00

Unavailable

24

SCREW, 10

8JP-RA299-00-00

Unavailable

25

BOLT, FLG. M8X1.25

8JP-RA188-00-00

Unavailable

26

COLUMN, STEERING 2

8JP-F3813-01-00

Unavailable

27

LOCK NUT

8JP-RA378-01-00

Unavailable

28

HANDLEBAR

8JR-F6111-20-00

Unavailable

29

NUT

8JR-F3856-10-00

Unavailable
