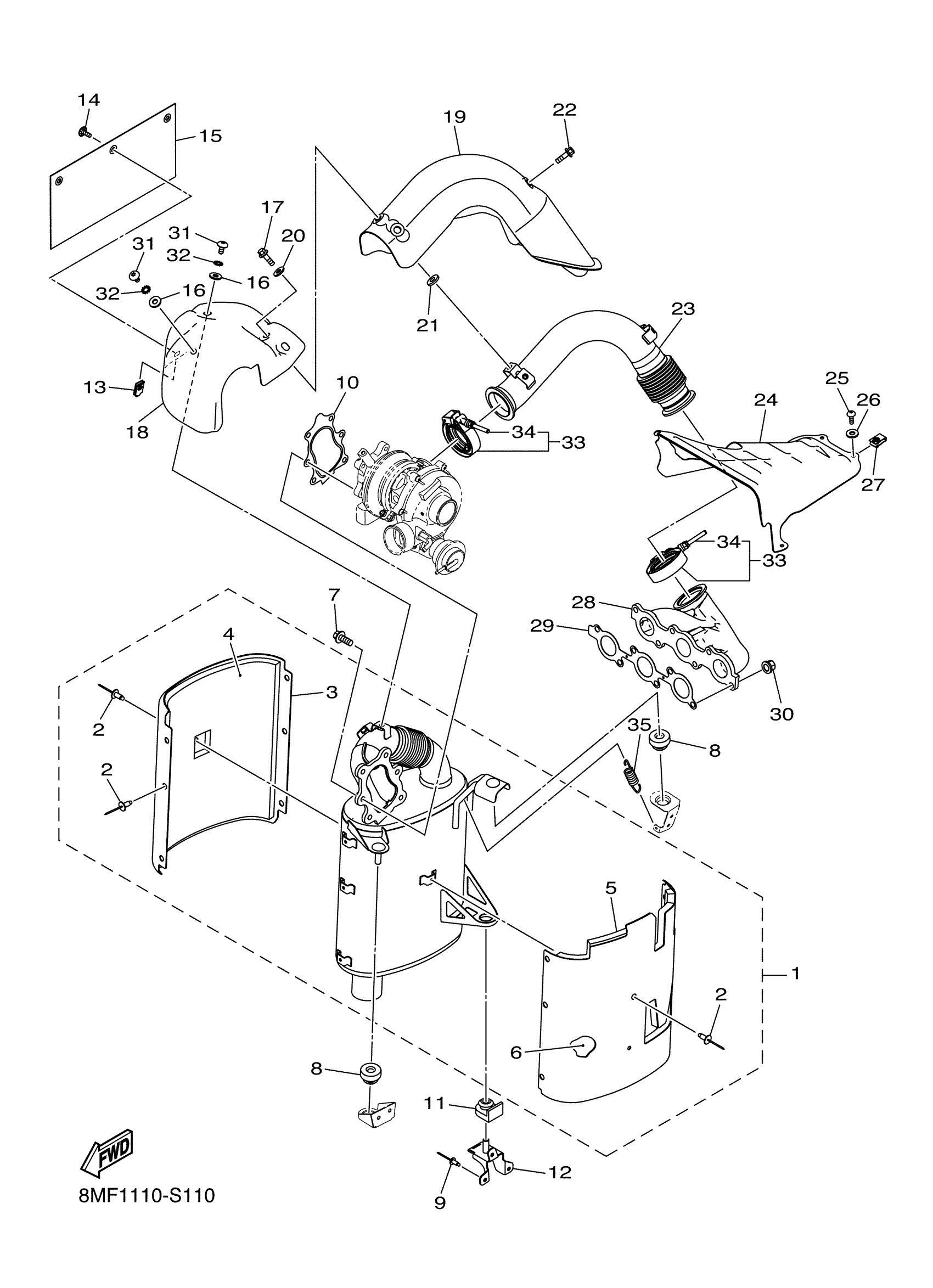

Yamaha SW10XL41HR (SIDEWINDER X TX 141 LE) 8MD10 2017 EXHAUST Diagram
#
1
SILENCER ASSY
8KC-E4750-01-00
$597.99
2
RIVET, 1
8KC-RA510-00-00
$1.11
3
PROTECTOR, MUFFLER
8KC-E4728-00-00
Unavailable
4
MAT 2
8KC-E4736-00-00
Unavailable
5
PROTECTOR, MUFFLER
8KC-E4718-00-00
$126.99
6
MAT 1
8KC-E4733-00-00
$15.99
7
BOLT, FLANGE 2
8KC-RA1B6-00-00
$13.99
8
GROMMET
8JP-E5357-00-00
$15.99
9
RIVET, 11
8JP-RA520-10-00
$0.43
10
GASKET, EXHAUST PI
8KC-E4623-00-00
$28.99
11
GROMMET
8JP-E5375-00-00
$9.49
12
BRACKET
8JP-E4744-00-00
Unavailable
13
NUT, CLIP
8JP-RA349-00-00
$1.16
14
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
15
SHIELD, HEAT
8KC-F3892-00-00
Unavailable
16
WASHER 1
8KC-K7525-00-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
EXHAUST COVER ASS'
8KC-E4637-00-00
Unavailable
19
EXHAUST COVER SET
8KJ-W1467-00-00
Unavailable
20
WASHER, PLATE
90201-06078-00
Unavailable
21
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
22
BOLT, FLANGE
95817-06012-00
Unavailable
23
EXHAUST PIPE ASSY
8KC-E4610-00-00
Unavailable
24
COVER, EXHAUST
8KC-E4627-00-00
Unavailable
25
SCREW, 11
8JP-RA2A0-00-00
Unavailable
26
WASHER, 1/4X0.625X
8JP-RA441-00-00
Unavailable
27
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
28
MANIFOLD, EXT. 1
8KJ-41131-00-00
Unavailable
29
GASKET, EXHAUST PIPE
8KJ-14613-00-00
Unavailable
30
NUT
90179-09004-00
Unavailable
31
BOLT, BUTTON HEAD
8KC-RA1C0-00-00
Unavailable
32
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
33
BAND, MUFFLER
8KC-E4715-00-00
Unavailable
34
BOLT SET
8KC-E22C0-00-00
Unavailable
35
SPRING, 3
8JP-RAD14-00-00
Unavailable
