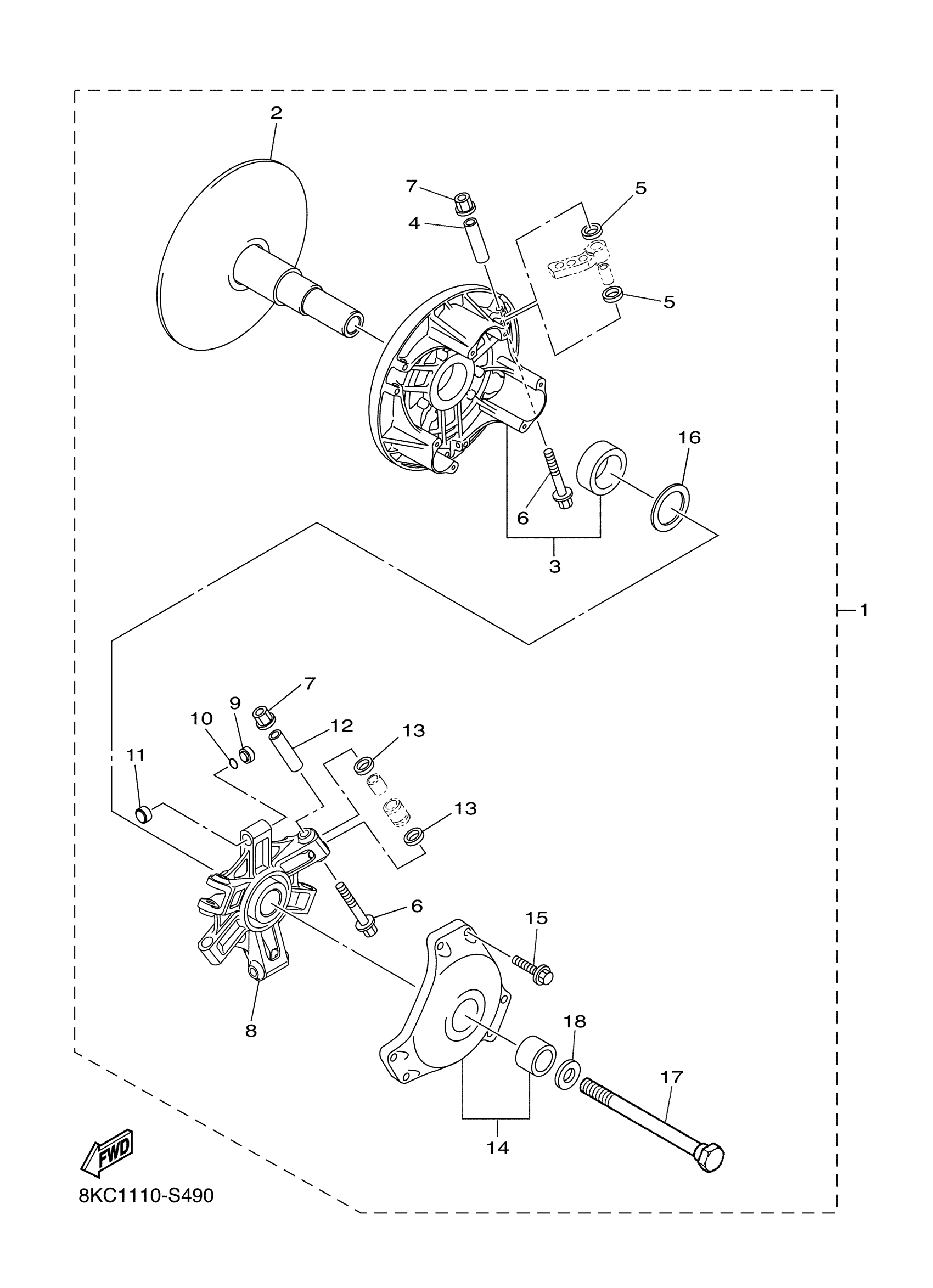

Yamaha SW10XL41HR (SIDEWINDER X TX 141 LE) 8MD10 2017 ALTERNATE REBUILD KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8KC-W176G-00-00

$846.99

2

PRIMARY FIXED SHEAVE COMP.

8KC-17610-00-00

$368.99

3

PRIMARY SLIDING SHEAVE COMP.

8KC-17620-00-00

$252.99

4

COLLAR

90387-05060-00

$16.99

5

WASHER, PLATE

90202-08005-00

$1.23

6

BOLT, FLANGE

90105-05030-00

$1.11

7

NUT, S/L FLANGE

95607-05200-00

$9.49

8

SPIDER

8KC-17627-00-00

Unavailable

9

SLIDER

8KC-17653-00-00

$17.99

10

O-RING (214)

93210-07100-00

$7.49

11

SLIDER

8KC-17653-10-00

$25.99

12

COLLAR

90387-05059-00

$16.99

13

WASHER, PLATE

90202-09002-00

$1.23

14

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$186.99

15

BOLT, FLANGE

95812-06030-00

$8.49

16

WASHER, PLATE

90201-33016-00

Unavailable

17

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

18

WASHER(JN5)

92907-16100-00

Unavailable
